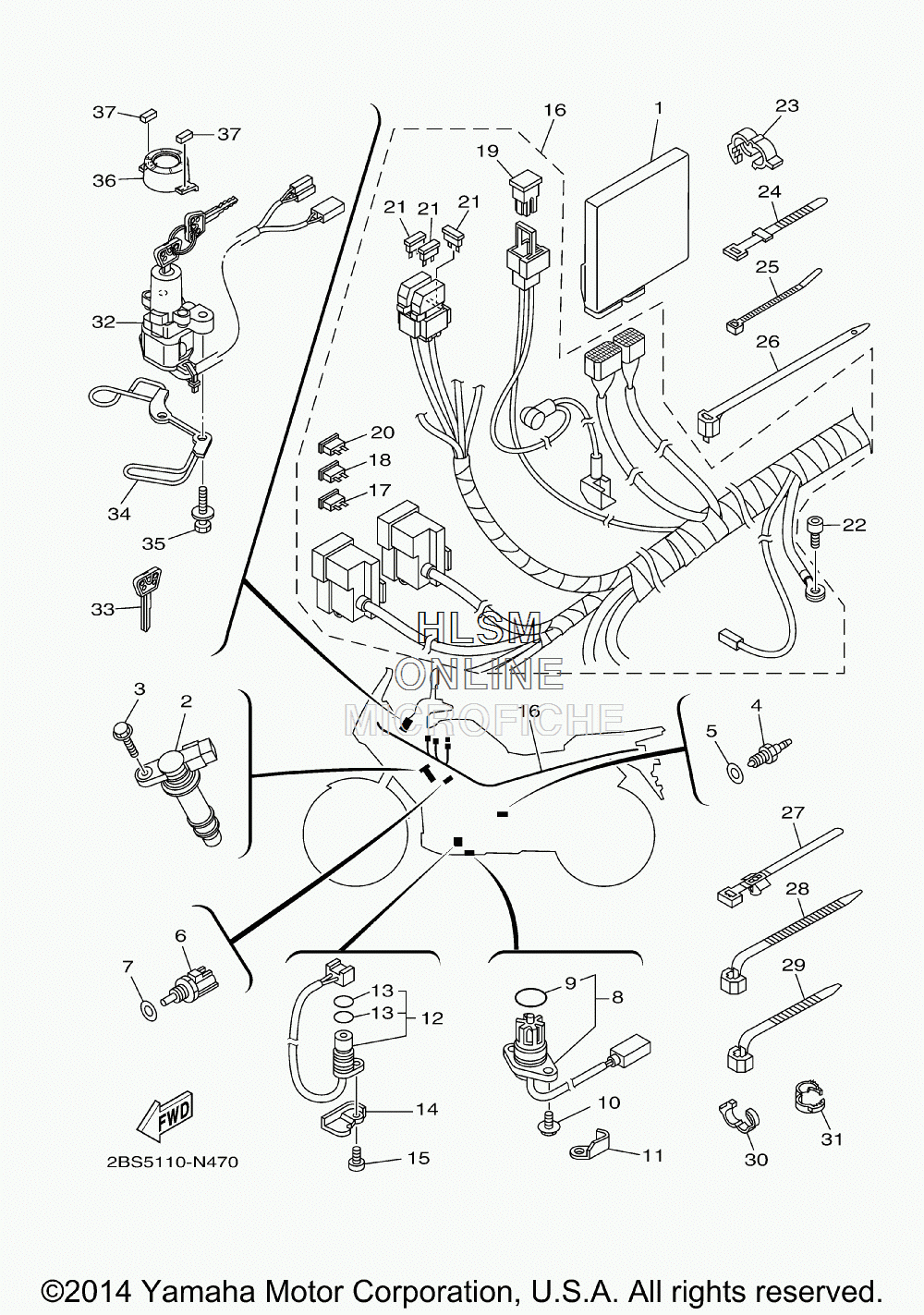

ELECTRICAL для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
12BS-8591A-30-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
223P-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
390105-06198-00 BOLT, FLANGEBOLT, FLANGE
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
65YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
790201-12790-00 WASHER, PLATEWASHER, PLATE
-
823P-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
95VY-8A8E0-00-00 ...O-RING...O-RING
-
1095022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1190465-10040-00 CLAMPCLAMP
-
1223P-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
135VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1423P-15589-00-00 PLATEPLATE
-
1590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
162BS-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
205JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
211MC-82151-00-00 ...FUSE (1A-BL)...FUSE (1A-BL)
-
2291312-06012-00 BOLTBOLT
-
2390464-16003-00 CLAMPCLAMP
-
24437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2590465-10098-00 CLAMPCLAMP
-
2690464-55001-00 CLAMPCLAMP
-
2790464-34002-00 CLAMPCLAMP
-
2890464-15195-00 CLAMPCLAMP
-
2990464-13073-00 CLAMPCLAMP
-
3090464-26001-00 CLAMPCLAMP
-
3190464-16001-00 CLAMPCLAMP
-
322BS-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
334BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
342BS-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
3590109-08195-00 BOLTBOLT
-
363P6-82568-00-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
373C3-28372-00-00 DAMPERDAMPER
