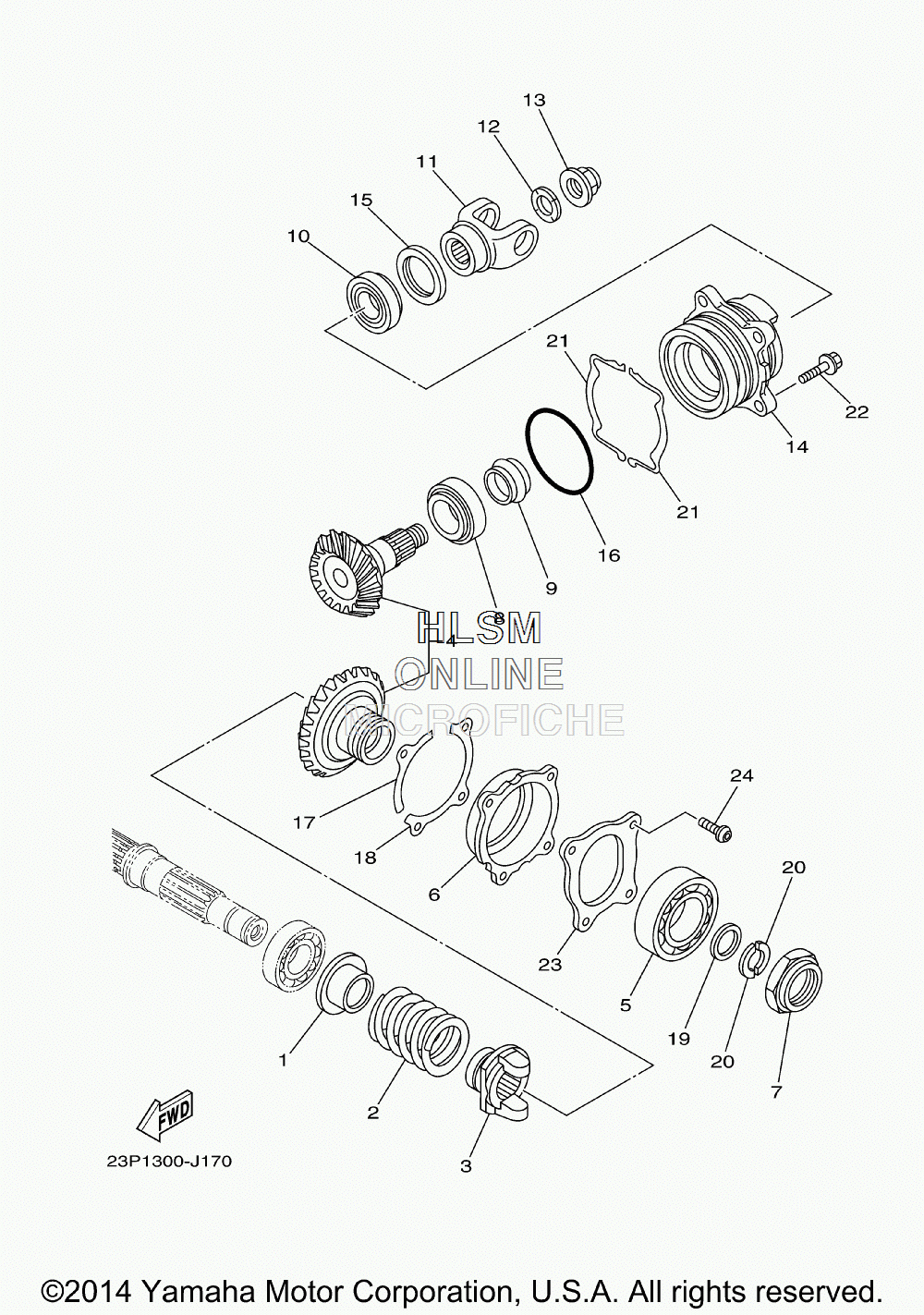

MIDDLE DRIVE GEAR для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
123P-17524-00-00 HOLDERHOLDER
-
223P-17528-00-00 SPRING, DAMPERSPRING, DAMPER
-
323P-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
423P-17530-00-00 PINION SETPINION SET
-
593306-20901-00 BEARINGBEARING
-
623P-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
790179-44001-00 NUTNUT
-
893332-000A0-00 BEARINGBEARING
-
923P-17571-00-00 SPACER, EXPANSIONSPACER, EXPANSION
-
1093332-000A6-00 BEARINGBEARING
-
1123P-17556-00-00 YOKE, JOINTYOKE, JOINT
-
1290208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
1390179-20015-00 NUTNUT
-
1423P-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1593102-43M42-00 OIL SEALSD-TYPEOIL SEALSD-TYPE
-
1693210-82003-00 O-RINGO-RING
-
1723P-17531-50-00 SHIM, PINION (0.50T) (OPT)SHIM, PINION (0.50T) (OPT)
-
1723P-17531-40-00 SHIM, PINION (0.40T) (OPT)SHIM, PINION (0.40T) (OPT)
-
1723P-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
1723P-17531-20-00 SHIM, PINION (0.20T) (OPT)SHIM, PINION (0.20T) (OPT)
-
1723P-17531-30-00 SHIM, PINION (0.30T) (OPT)SHIM, PINION (0.30T) (OPT)
-
1723P-17531-00-00 SHIM, PINION (0.10T) (OPT)SHIM, PINION (0.10T) (OPT)
-
1823P-17687-30-00 SHIM (0.30T) (OPT)SHIM (0.30T) (OPT)
-
1823P-17687-40-00 SHIM (0.40T) (OPT)SHIM (0.40T) (OPT)
-
1823P-17687-50-00 SHIM (0.50T) (OPT)SHIM (0.50T) (OPT)
-
1823P-17687-20-00 SHIM (0.20T) (OPT)SHIM (0.20T) (OPT)
-
1823P-17687-10-00 SHIM (0.15T) (OPT)SHIM (0.15T) (OPT)
-
1823P-17687-00-00 SHIM (0.10T) (OPT)SHIM (0.10T) (OPT)
-
1990201-27014-00 WASHER, PLATEWASHER, PLATE
-
2023P-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
2123P-17537-50-00 SHIM, THRUST (0.50T) (OPT)SHIM, THRUST (0.50T) (OPT)
-
2123P-17537-40-00 SHIM, THRUST (0.40T) (OPT)SHIM, THRUST (0.40T) (OPT)
-
2123P-17537-30-00 SHIM, THRUST (0.30T) (OPT)SHIM, THRUST (0.30T) (OPT)
-
2123P-17537-20-00 SHIM, THRUST (0.20T) (OPT)SHIM, THRUST (0.20T) (OPT)
-
2123P-17537-10-00 SHIM, THRUST (0.15T) (OPT)SHIM, THRUST (0.15T) (OPT)
-
2123P-17537-00-00 SHIM, THRUST (0.10T) (OPT)SHIM, THRUST (0.10T) (OPT)
-
2290105-08234-00 BOLT, FLANGEBOLT, FLANGE
-
2323P-17446-00-00 PLATEPLATE
-
2490149-08050-00 SCREWSCREW
