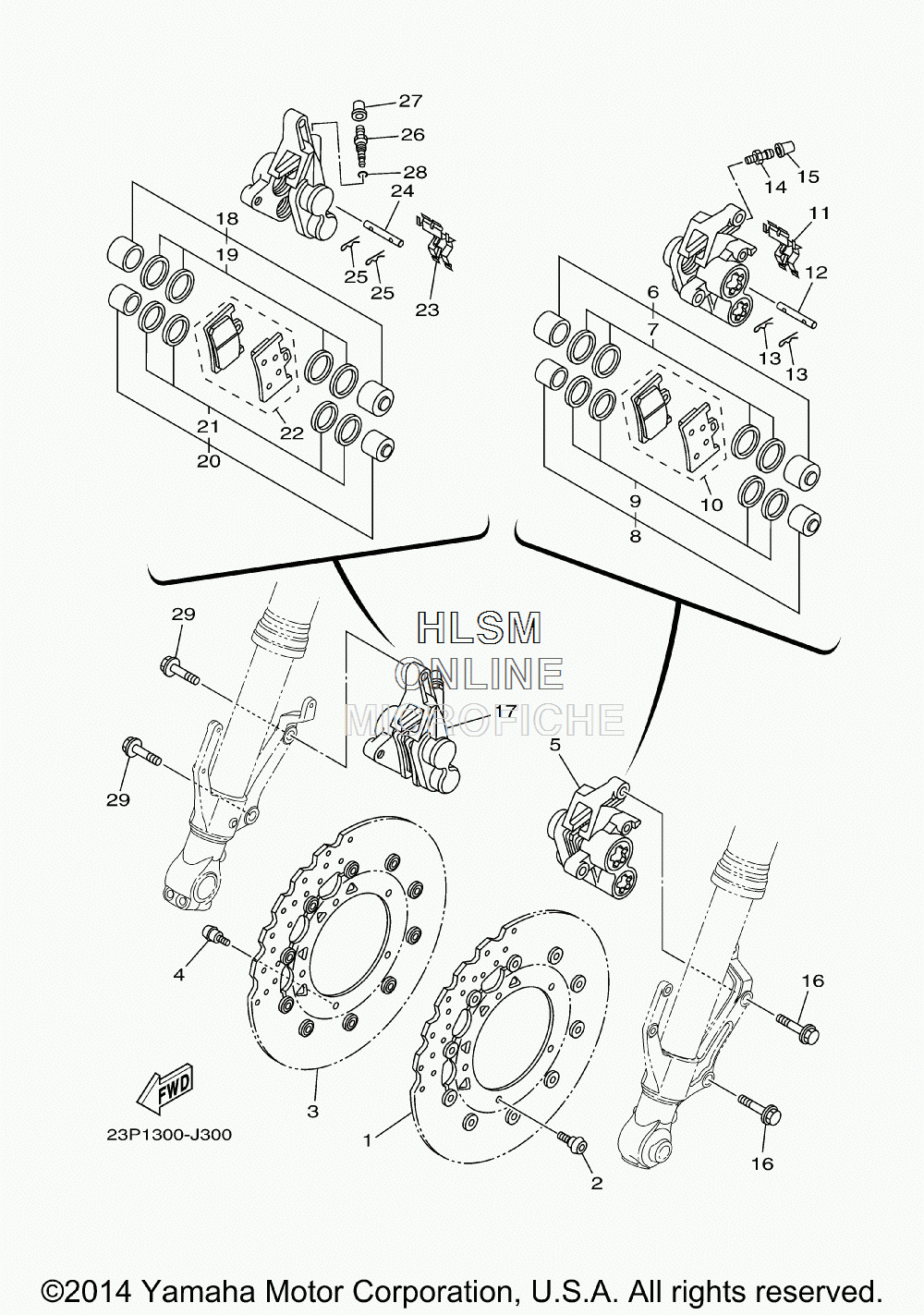

BRAKE - FRONT CALIPER для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
123P-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290149-06043-00 SCREWSCREW
-
323P-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
490149-06043-00 SCREWSCREW
-
523P-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
64SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
84SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
93MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
102C0-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1113S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
124SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
133GM-25925-00-00 ...CLIP...CLIP
-
141J3-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
15306-25825-01-00 ...CAP...CAP
-
1690105-105A7-00 BOLT WASHER BASEDBOLT WASHER BASED
-
1723P-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
184SV-25802-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
193GM-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
204SV-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
213MA-25803-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
222C0-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
2313S-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
244SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
253GM-25925-00-00 ...CLIP...CLIP
-
265VS-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
27306-25825-01-00 ...CAP...CAP
-
285VS-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
2990105-105A7-00 BOLT WASHER BASEDBOLT WASHER BASED
