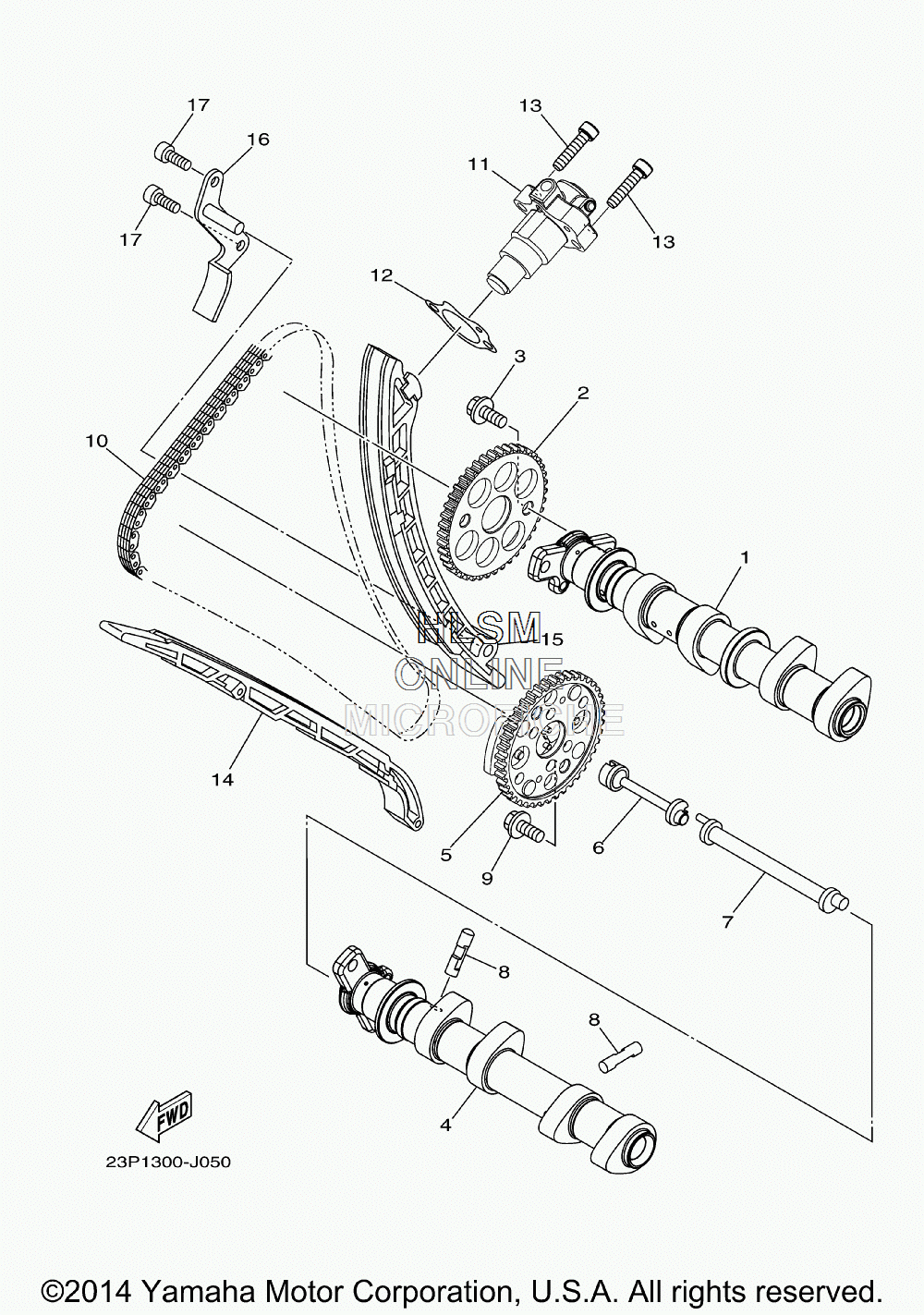

CAMSHAFT W/ CHAIN для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
123P-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
223P-12176-00-00 SPROCKET, CAM CHAIN (42T)SPROCKET, CAM CHAIN (42T)
-
390105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
423P-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
523P-12280-00-00 DECOMPRESSION ASSYDECOMPRESSION ASSY
-
623P-12247-00-00 SHAFT, 1SHAFT, 1
-
723P-12257-00-00 SHAFT 2SHAFT 2
-
823P-12288-00-00 CAM, DECOMPRESSIONCAM, DECOMPRESSION
-
990105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
1094591-61150-00 CHAIN (98XRH2015-150M)CHAIN (98XRH2015-150M)
-
112BS-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
1214B-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1391312-06025-00 BOLTBOLT
-
1423P-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
1523P-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1623P-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1790110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
