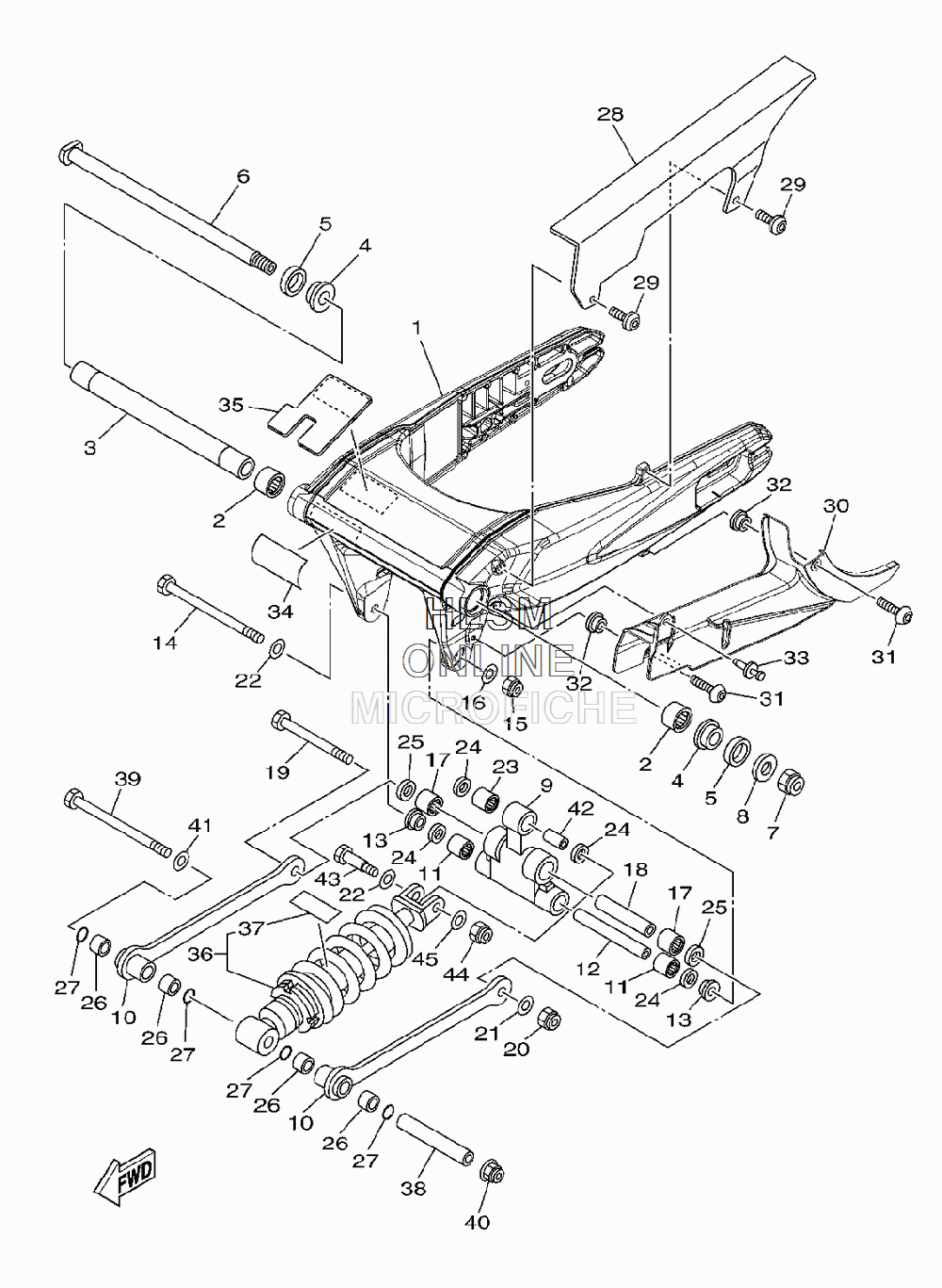

SUSPENSION - REAR ARM для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
293317-42599-00 BEARINGBEARING
-
31D7-22184-00-00 BUSHBUSH
-
41D7-22126-00-00 COLLAR, DISTANCECOLLAR, DISTANCE
-
593109-33049-00 OIL SEAL (23Y)OIL SEAL (23Y)
-
65PX-22141-10-00 SHAFT, PIVOTSHAFT, PIVOT
-
790185-18167-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-18020-00 WASHER, PLATEWASHER, PLATE
-
91D7-2217A-01-00 ARM, RELAYARM, RELAY
-
105C7-2217M-00-00 ARM 1ARM 1
-
1193317-31798-00 BEARINGBEARING
-
121D7-2248B-00-00 COLLAR, ROD 1COLLAR, ROD 1
-
1390387-12032-00 COLLARCOLLAR
-
1490101-12018-00 BOLTBOLT
-
1595617-12100-00 NUT, UNUT, U
-
1690201-126A7-00 WASHER, PLATEWASHER, PLATE
-
1793315-32053-00 BEARINGBEARING
-
1890387-12035-00 COLLARCOLLAR
-
1990101-12673-00 BOLTBOLT
-
2095617-12100-00 NUT, UNUT, U
-
2190201-126A7-00 WASHER, PLATEWASHER, PLATE
-
2290201-13013-00 WASHER, PLATEWASHER, PLATE
-
2393315-31759-00 BEARINGBEARING
-
2493109-17071-00 OIL SEALOIL SEAL
-
2593109-20001-00 OIL SEALOIL SEAL
-
2690384-18157-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
2793210-18397-00 O-RINGO-RING
-
285C7-22310-00-00 CHAIN CASE ASSYCHAIN CASE ASSY
-
2990149-06298-00 SCREWSCREW
-
305C7-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
3190149-06298-00 SCREWSCREW
-
3290269-08001-00 RIVETRIVET
-
3390387-065T2-00 COLLARCOLLAR
-
341D7-22358-00-00 SEAL 1SEAL 1
-
351D7-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
365C7-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
374AA-22259-80-00 LABEL, WARNINGLABEL, WARNING
-
3890387-1214E-00 COLLARCOLLAR
-
3990101-12017-00 BOLTBOLT
-
4095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190201-126A7-00 WASHER, PLATEWASHER, PLATE
-
4290387-127W0-00 COLLARCOLLAR
-
4390101-10659-00 BOLTBOLT
-
4495617-10100-00 NUT, UNUT, U
-
4590201-101J1-00 WASHER, PLATEWASHER, PLATE
