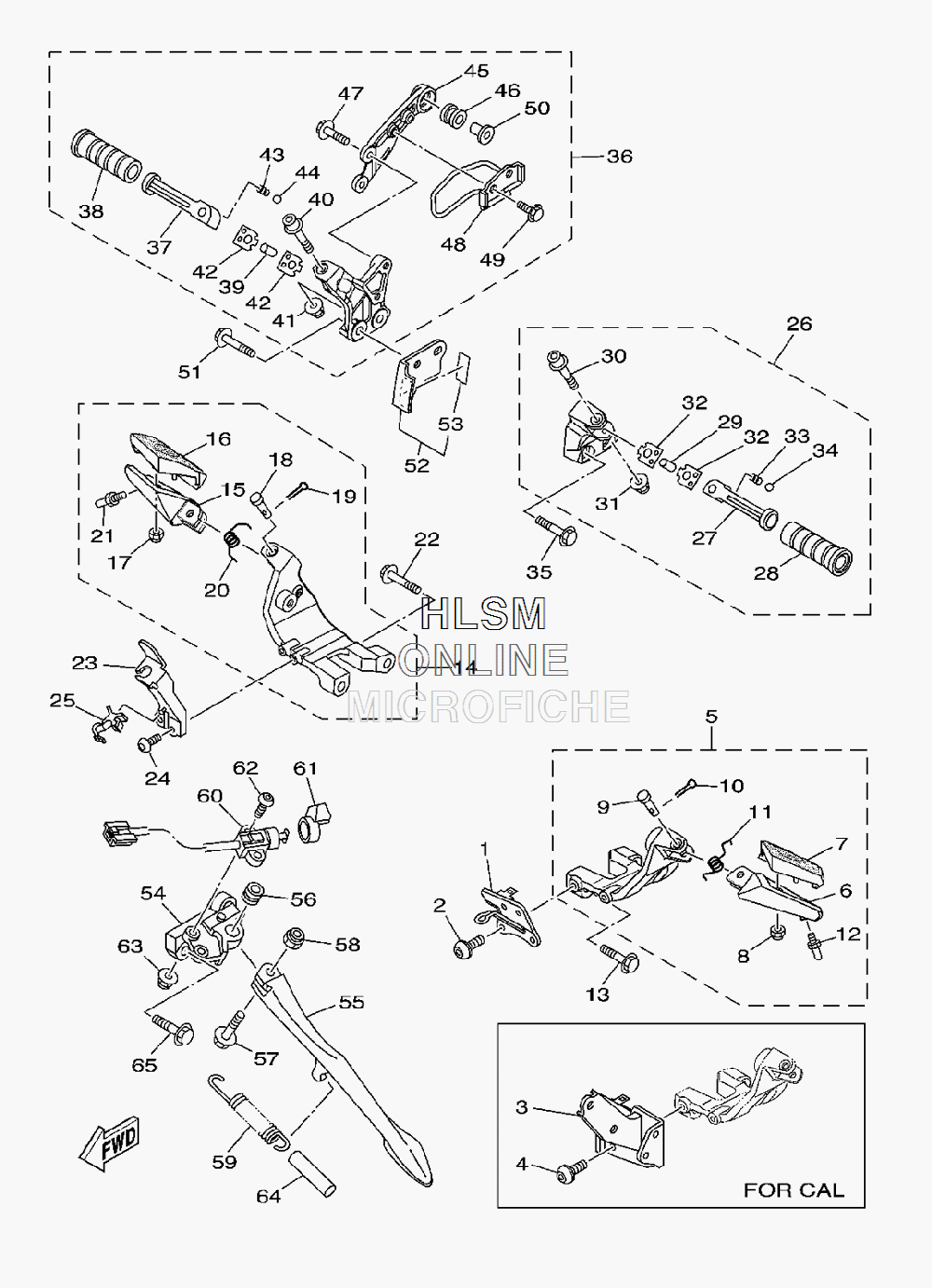

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-2134L-00-00 BRACKET, HORN 2BRACKET, HORN 2
-
290111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
35C7-2742L-00-00 BRACKET 5BRACKET 5
-
490149-06022-00 SCREWSCREW
-
55C7-27410-00-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
65C7-27451-00-00 FOOTRESTFOOTREST
-
75C7-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
895602-05200-00 NUT,U FLANGENUT,U FLANGE
-
991701-08035-00 PINPIN
-
1091401-25015-00 PIN, COTTERPIN, COTTER
-
1190508-18080-00 SPRING, TORSIONSPRING, TORSION
-
125C7-27435-00-00 BOLTBOLT
-
1390105-10126-00 BOLT, FLANGEBOLT, FLANGE
-
145C7-27420-00-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
155C7-27461-00-00 FOOTRESTFOOTREST
-
165C7-27423-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1795602-05200-00 NUT,U FLANGENUT,U FLANGE
-
1891701-08035-00 PINPIN
-
1991401-25015-00 PIN, COTTERPIN, COTTER
-
2090508-18087-00 SPRING, TORSIONSPRING, TORSION
-
215C7-27435-00-00 BOLTBOLT
-
2290105-10126-00 BOLT, FLANGEBOLT, FLANGE
-
235C7-2741L-00-00 BRACKET 4BRACKET 4
-
2490111-06065-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2590464-08189-00 CLAMPCLAMP
-
265C7-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
275C4-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
284WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
2990387-06554-00 COLLAR,LEVER 1COLLAR,LEVER 1
-
3090109-06016-00 BOLTBOLT
-
3195604-06200-00 NUT, U FLANGENUT, U FLANGE
-
321D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
3390501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3493501-04011-00 BALLBALL
-
3590105-10292-00 BOLT, FLANGEBOLT, FLANGE
-
365C7-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
371D7-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
384WM-27433-00-00 COVER, REAR FOOTRESTCOVER, REAR FOOTREST
-
3990387-06554-00 COLLAR,LEVER 1COLLAR,LEVER 1
-
4090109-06016-00 BOLTBOLT
-
4195604-06200-00 NUT, U FLANGENUT, U FLANGE
-
421D7-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4390501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4493501-04011-00 BALLBALL
-
455C7-21446-00-00 STAY, MUFFLER 2STAY, MUFFLER 2
-
462C0-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
4795024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
485C7-27267-00-00 GUIDE, WIREGUIDE, WIRE
-
4995022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
5090387-08021-00 COLLARCOLLAR
-
5190105-10155-00 BOLT, FLANGEBOLT, FLANGE
-
525C7-2171G-00-00 BRACKET, STOPPER STEEERINGBRACKET, STOPPER STEEERING
-
535C7-2174X-00-00 DAMPERDAMPER
-
545C7-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
551D7-27311-00-00 STAND, SIDESTAND, SIDE
-
5690387-12031-00 COLLARCOLLAR
-
5790105-12018-00 BOLT, FLANGEBOLT, FLANGE
-
5890185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5990506-35005-00 SPRING, TENSIONSPRING, TENSION
-
605VS-82566-B0-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
614WM-8252U-00-00 COVERCOVER
-
6292017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6395607-05200-00 NUT, U FLANGENUT, U FLANGE
-
6490445-22327-00 HOSE (L70)HOSE (L70)
-
6590105-10157-00 BOLT, FLANGEBOLT, FLANGE
