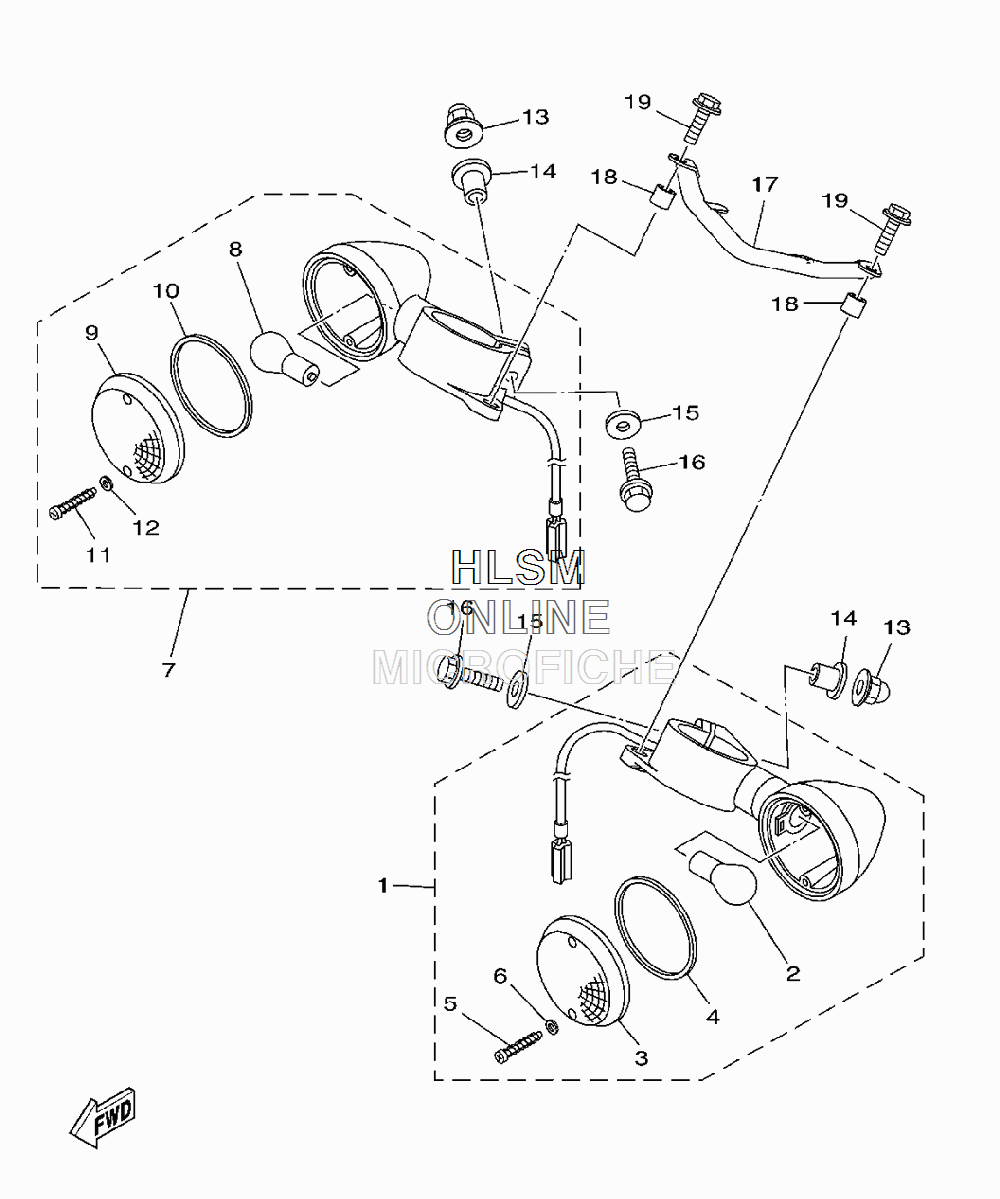

FLASHER LIGHT для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25VN-83311-00-00 BULB, FLASHER (12V-23/8W)BULB, FLASHER (12V-23/8W)
-
35PX-83312-10-00 LENS, FLASHERLENS, FLASHER
-
45PX-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
597704-40625-00 SCREW, TAPPINGSCREW, TAPPING
-
65PX-83348-00-00 WASHERWASHER
-
75C7-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85VN-83311-00-00 BULB, FLASHER (12V-23/8W)BULB, FLASHER (12V-23/8W)
-
95PX-83312-10-00 LENS, FLASHERLENS, FLASHER
-
105PX-83313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
1197704-40625-00 SCREW, TAPPINGSCREW, TAPPING
-
125PX-83348-00-00 WASHERWASHER
-
1390176-06055-00 NUT, CROWNNUT, CROWN
-
1490387-06076-00 COLLARCOLLAR
-
1590201-06045-00 WASHER, PLATEWASHER, PLATE
-
1695802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
175C7-83335-00-00 GUIDE, LEAD WIRE 1GUIDE, LEAD WIRE 1
-
1890387-08085-00 COLLARCOLLAR
-
1995027-08025-00 BOLT, FLANGEBOLT, FLANGE
