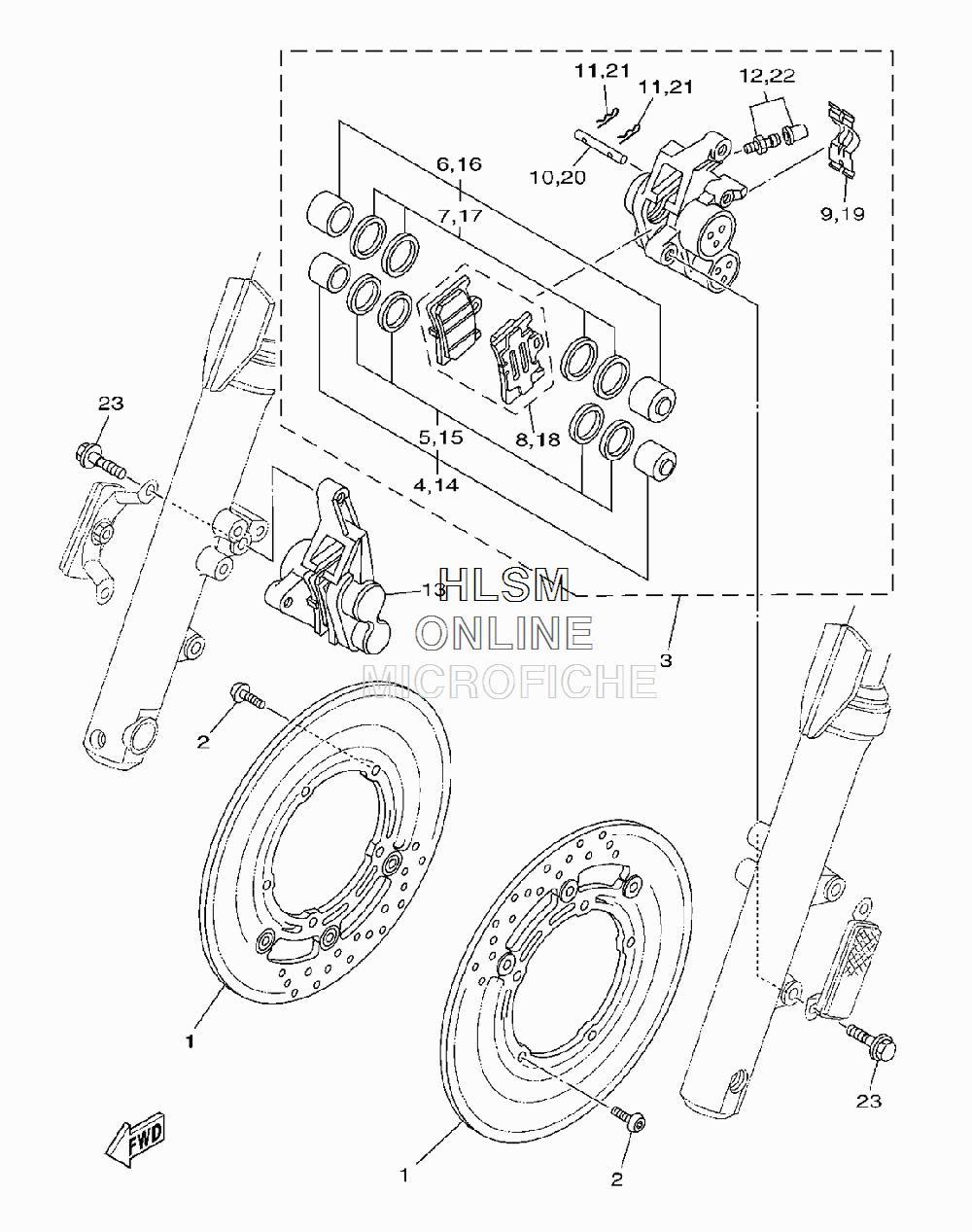

BRAKE - FRONT CALIPER для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
15VX-2581T-01-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
290109-08006-00 BOLTBOLT
-
31D7-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
44SV-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
53MA-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
64SV-W0057-10-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
73GM-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
81D7-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
94SV-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
104SV-25924-00-00 PIN, PADPIN, PAD
-
113GM-25925-00-00 CLIPCLIP
-
1251H-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
131D7-2580U-10-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
144SV-W0057-00-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
153MA-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
164SV-W0057-10-00 PISTON ASSY, CALIPERPISTON ASSY, CALIPER
-
173GM-W0047-10-00 CALIPER SEAL KITCALIPER SEAL KIT
-
181D7-W0045-00-00 BRAKE PAD KITBRAKE PAD KIT
-
194SV-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
204SV-25924-00-00 PIN, PADPIN, PAD
-
213GM-25925-00-00 CLIPCLIP
-
2251H-W0048-00-00 BLEED SCREW KITBLEED SCREW KIT
-
2390105-10638-00 BOLT, FLANGEBOLT, FLANGE
