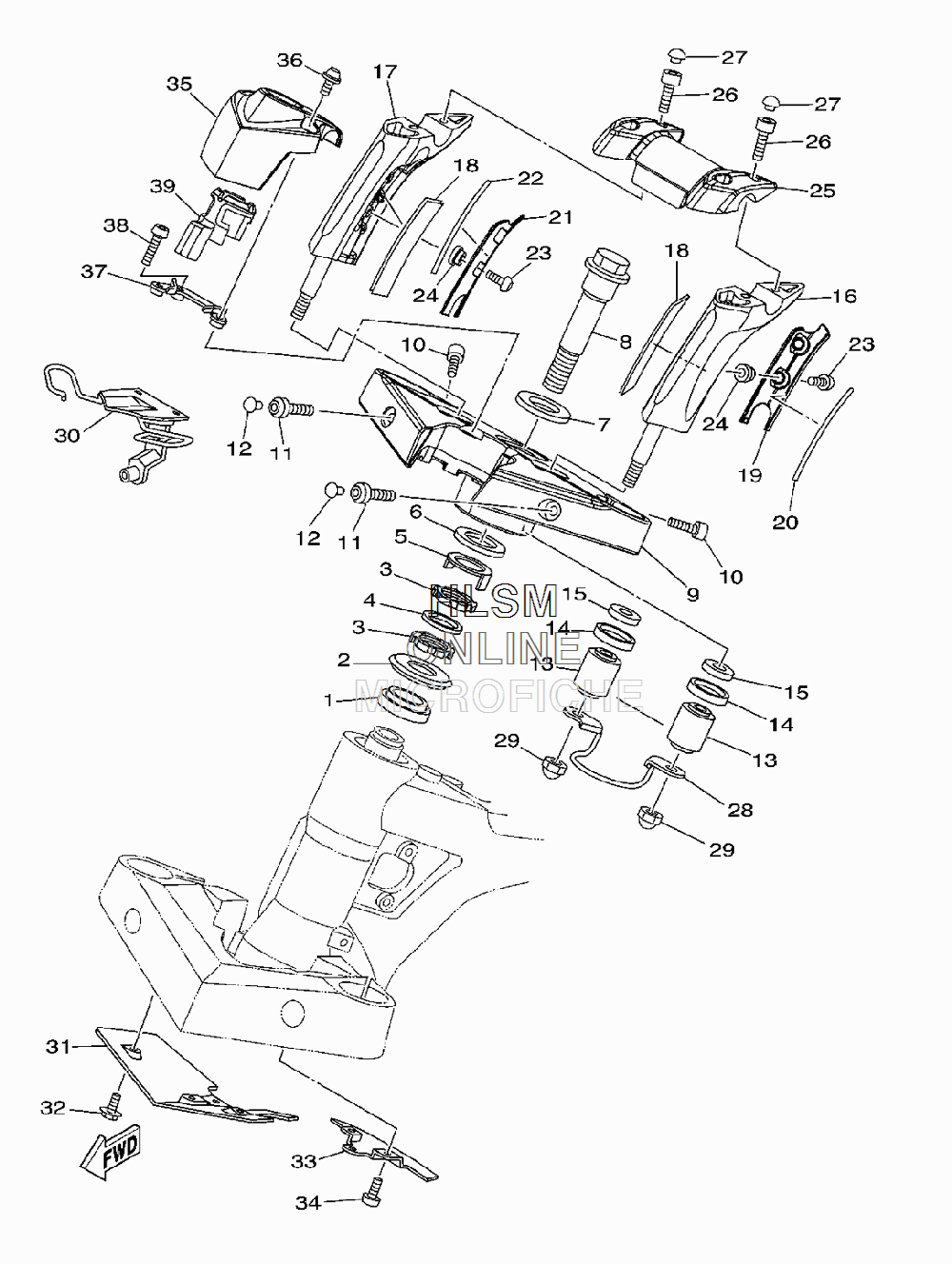

STEERING для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
193332-00091-00 BEARINGBEARING
-
24XV-23415-01-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
390179-30005-00 NUTNUT
-
490202-30235-00 WASHER, PLATEWASHER, PLATE
-
54XV-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
65C7-23165-00-00 WASHER, FELTWASHER, FELT
-
790201-28019-00 WASHER, PLATEWASHER, PLATE
-
85C7-23451-00-00 BOLT, FITTING 1BOLT, FITTING 1
-
95C7-23435-10-00 CROWN, HANDLECROWN, HANDLE
-
1091314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190111-08010-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1290338-08163-00 PLUGPLUG
-
131NU-22216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
143DM-23445-00-00 DAMPERDAMPER
-
1590201-14025-00 WASHER, PLATEWASHER, PLATE
-
165C7-23442-10-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
175C7-2344E-10-00 HOLDER , HANDLE LOWER 1HOLDER , HANDLE LOWER 1
-
185C7-23445-00-00 DAMPERDAMPER
-
195C7-23318-10-00 HOLDER, CABLE 1HOLDER, CABLE 1
-
205C7-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
215C7-23319-10-00 HOLDER, CABLE 2HOLDER, CABLE 2
-
225C7-23384-00-00 COVER, DUST SEAL 2COVER, DUST SEAL 2
-
2390111-05032-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2490387-05040-00 COLLARCOLLAR
-
255C7-23441-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2691314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790338-08163-00 PLUGPLUG
-
285C7-23495-00-00 STAY, DAMPERSTAY, DAMPER
-
2990176-12052-00 NUT, CROWNNUT, CROWN
-
305C7-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
315C7-23818-10-00 COVER, STEERINGCOVER, STEERING
-
3290105-06012-00 BOLT, FLANGEBOLT, FLANGE
-
335C7-23774-00-00 PLATEPLATE
-
3490111-06016-00 BOLTBOLT
-
355C7-82568-10-00 COVER, MAIN SWITCHCOVER, MAIN SWITCH
-
3690111-06079-00 BOLTBOLT
-
375C7-23474-00-00 BRACKET, MAINBRACKET, MAIN
-
3892012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
395C7-82572-00-00 GROMMET 1GROMMET 1
