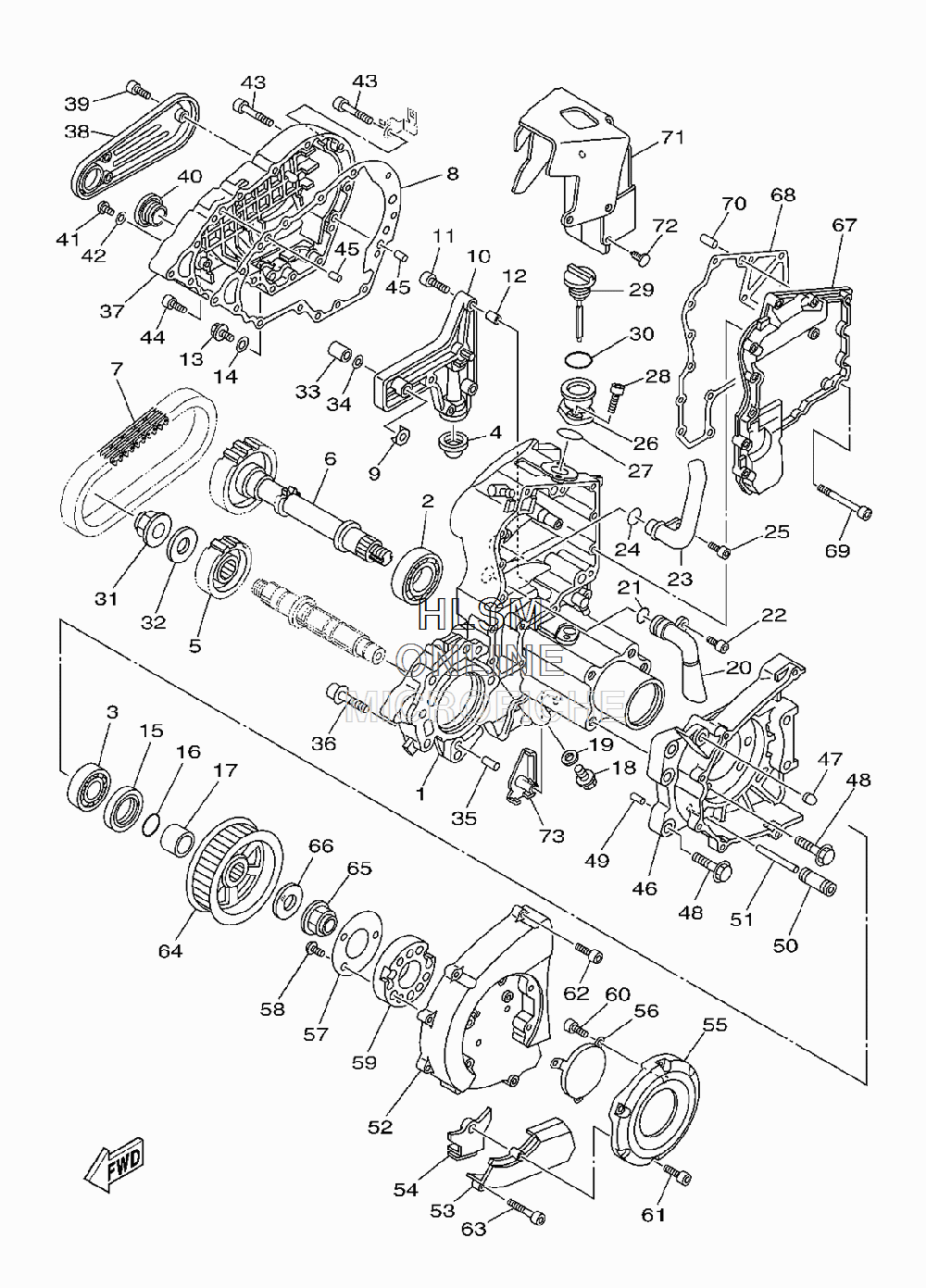

MIDDLE DRIVE GEAR для Yamaha RAIDER - 2009 года выпуска
-
№АртикулНазвание
-
11D7-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
293306-20801-00 BEARINGBEARING
-
393306-28204-00 BEARINGBEARING
-
44WM-13286-00-00 CLEANERCLEANER
-
51D7-17682-00-00 SPROCKET, CHAIN DRIVESPROCKET, CHAIN DRIVE
-
61D7-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
74WM-16139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
81D7-17929-00-00 GASKET 1GASKET 1
-
91D7-17931-00-00 GASKET 2GASKET 2
-
101D7-13100-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
1191314-06035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1299530-08012-00 PIN, DOWELPIN, DOWEL
-
1390149-08016-00 SCREWSCREW
-
1490430-08119-00 GASKETGASKET
-
1593102-42008-00 OIL SEALOIL SEAL
-
1693210-32001-00 O-RINGO-RING
-
1790387-32005-00 COLLARCOLLAR
-
1890340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
19214-11198-01-00 GASKETGASKET
-
201D7-13421-00-00 STRAINER 2STRAINER 2
-
2193210-21631-00 O-RINGO-RING
-
2290110-06161-00 BOLT (4MY)BOLT (4MY)
-
231D7-13582-00-00 PIPEPIPE
-
2493210-21631-00 O-RINGO-RING
-
2590110-06161-00 BOLT (4MY)BOLT (4MY)
-
261D7-13132-00-00 JOINTJOINT
-
2793210-40351-00 O-RINGO-RING
-
2890110-06179-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
295PX-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
3093210-35512-00 O-RINGO-RING
-
3190179-22016-00 NUTNUT
-
3290208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3390179-10013-00 NUTNUT
-
3490430-10004-00 GASKETGASKET
-
3599530-10114-00 PIN, DOWELPIN, DOWEL
-
3690110-10013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
371D7-15779-10-00 COVERCOVER
-
381D7-17821-10-00 COVER, HOUSINGCOVER, HOUSING
-
3990110-05013-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090340-20005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4192014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4290430-06016-00 GASKETGASKET
-
4391314-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4491314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4599530-08012-00 PIN, DOWELPIN, DOWEL
-
461D7-17613-00-00 STAYSTAY
-
475PX-17654-00-00 SPACER 1SPACER 1
-
4895814-12050-00 BOLT, FLANGEBOLT, FLANGE
-
4999530-08012-00 PIN, DOWELPIN, DOWEL
-
504WM-17653-00-00 SLIDERSLIDER
-
5193606-76002-00 PIN, DOWELPIN, DOWEL
-
521D7-17076-10-00 COVERCOVER
-
531D7-17662-10-00 PLATE, STAYPLATE, STAY
-
541D7-15486-00-00 GROMMETGROMMET
-
551D7-17665-10-00 PLATE 1PLATE 1
-
561D7-17675-10-00 PLATE 2PLATE 2
-
571D7-17672-00-00 PLATE, STAYPLATE, STAY
-
5890149-06082-00 SCREWSCREW
-
591D7-17655-00-00 DAMPER, SLIDERDAMPER, SLIDER
-
6091314-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6191314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6291314-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6391314-06050-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
641D7-17651-00-00 PULLEY, BELTPULLEY, BELT
-
6590179-22016-00 NUTNUT
-
6690208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
671D7-17538-00-00 CAP, HOUSINGCAP, HOUSING
-
681D7-17933-00-00 GASKET, 4GASKET, 4
-
6991312-06025-00 BOLT (4MY)BOLT (4MY)
-
7099530-08012-00 PIN, DOWELPIN, DOWEL
-
715C7-1763A-00-00 PLATE, CAPPLATE, CAP
-
7290269-07005-00 RIVETRIVET
-
735PX-17446-00-00 PLATEPLATE
