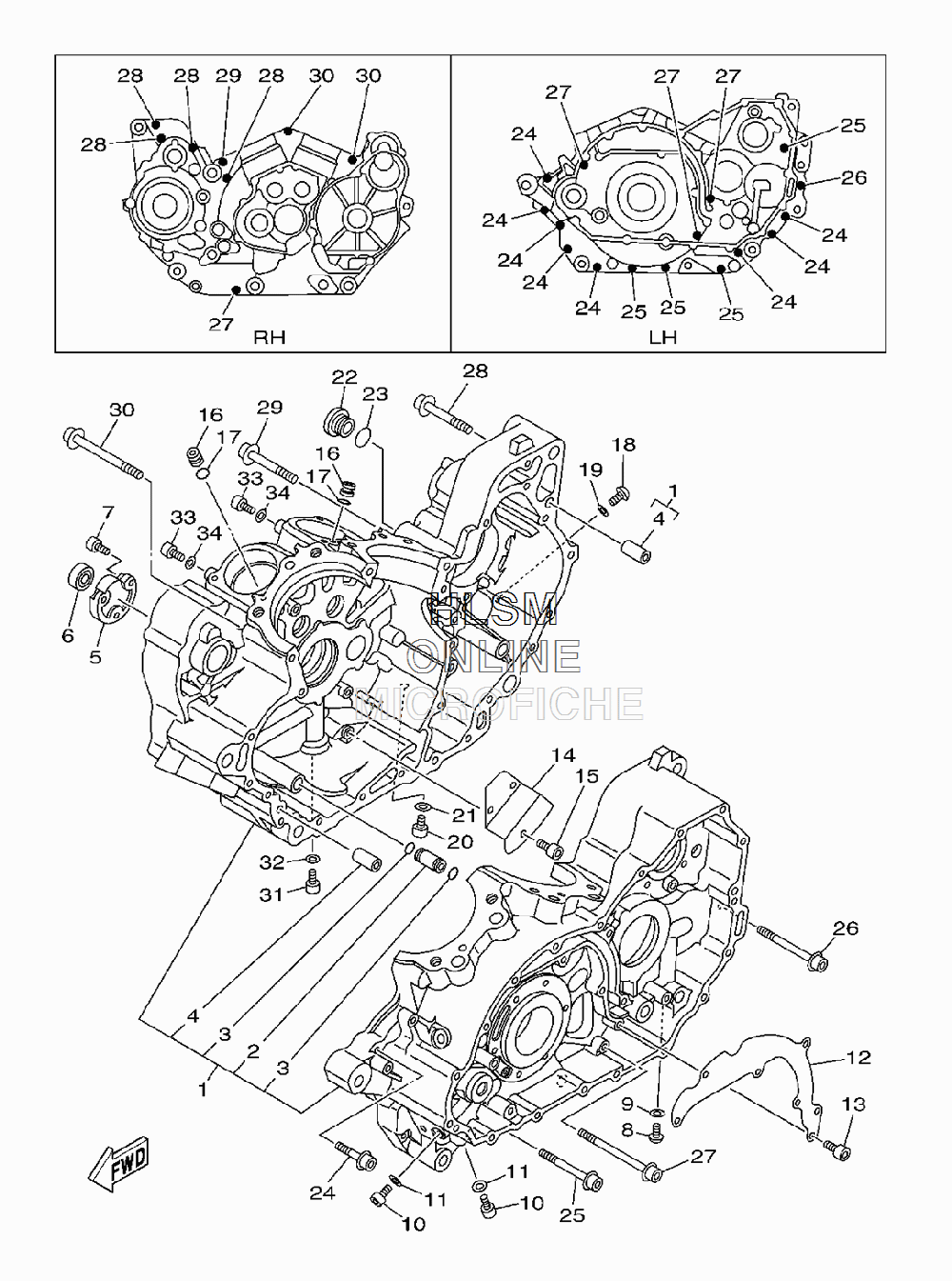

CRANKCASE для Yamaha RAIDER - 2009 года выпуска`
-
№АртикулНазвание
-
15C7-15100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
21D7-15138-00-00 NOZZLE 1NOZZLE 1
-
393210-10003-00 O-RINGO-RING
-
499530-10116-00 PIN, DOWELPIN, DOWEL
-
51D7-15163-00-00 HOUSING, BEARING 1HOUSING, BEARING 1
-
693306-00006-00 BEARINGBEARING
-
790110-06174-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890149-06071-00 SCREWSCREW
-
990430-06014-00 GASKETGASKET
-
1090110-08079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190430-08119-00 GASKETGASKET
-
121D7-15191-00-00 PLATEPLATE
-
1390110-06161-00 BOLT (4MY)BOLT (4MY)
-
141D7-15412-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
1590110-06168-00 BOLTBOLT
-
161D7-15189-00-00 PLUGPLUG
-
1793210-07435-00 O-RINGO-RING
-
1890149-06071-00 SCREWSCREW
-
1990430-06014-00 GASKETGASKET
-
2090110-08079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2190430-08119-00 GASKETGASKET
-
224H7-15189-00-00 PLUGPLUG
-
2393210-20003-00 O-RINGO-RING
-
2490110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590110-06094-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2690110-06297-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790110-06296-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890110-06298-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990110-08072-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090110-08073-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3190110-08079-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3290430-08119-00 GASKETGASKET
-
3391314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490430-06014-00 GASKETGASKET
