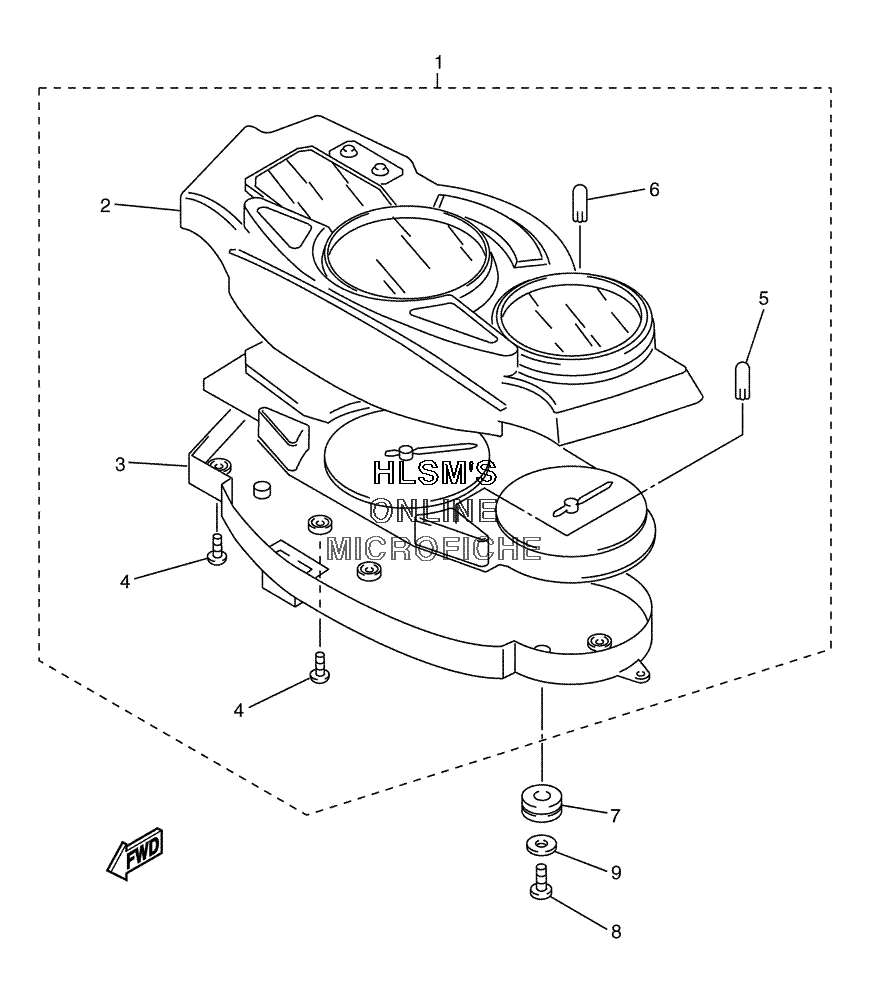

INSTRUMENT PANEL для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-83500-32-00 SPEEDOMETER ASSY. (MPH)SPEEDOMETER ASSY. (MPH)
-
25JW-8353E-01-00 ...CASE, METER UPPER...CASE, METER UPPER
-
35JW-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
497707-40016-00 ...SCREW, TAPPING...SCREW, TAPPING
-
54YR-83517-10-00 ...BULB (12V-2W T5)...BULB (12V-2W T5)
-
64WM-83517-10-00 ...BULB (T3.4 14V-80MA)...BULB (T3.4 14V-80MA)
-
74XV-83513-00-00 DAMPERDAMPER
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
990201-05725-00 WASHER, PLATEWASHER, PLATE
