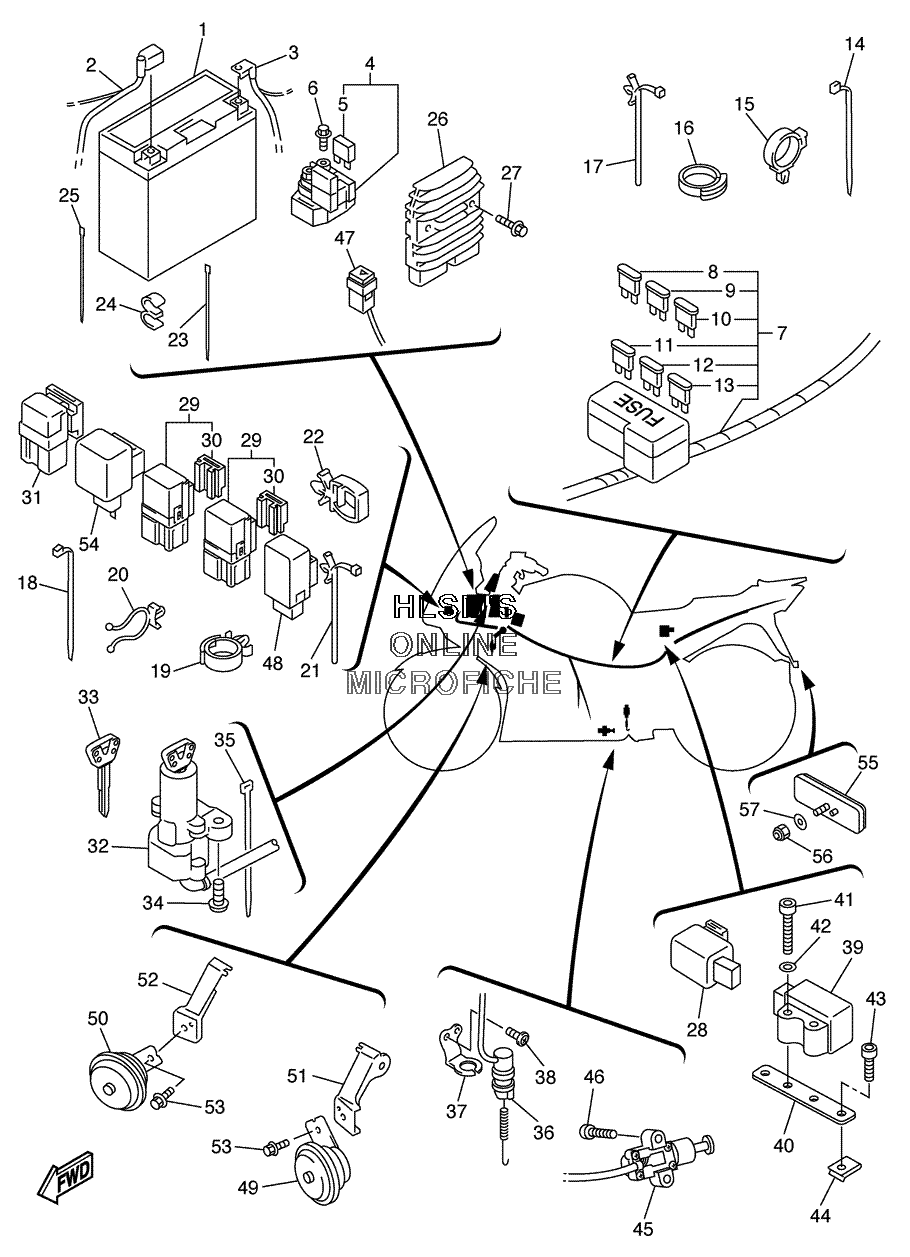

ELECTRICAL 2 для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY. (GS GT14B-4)BATTERY ASSY. (GS GT14B-4)
-
25JW-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
35JW-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
45JW-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
536Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
695027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
75JW-82590-40-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
85JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
95JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
105JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
115JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
125JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
135JJ-82151-80-00 ...FUSE (2A-BL)...FUSE (2A-BL)
-
1490464-15195-00 CLAMPCLAMP
-
1590464-30001-00 CLAMPCLAMP
-
1690464-06001-00 CLAMPCLAMP
-
1790464-20213-00 CLAMPCLAMP
-
1890464-15195-00 CLAMPCLAMP
-
1990464-18246-00 CLAMPCLAMP
-
2090468-20123-00 CLIPCLIP
-
2190464-20213-00 CLAMPCLAMP
-
2290464-20237-00 CLAMPCLAMP
-
235Y9-12491-00-00 CLAMP 1CLAMP 1
-
2490464-60067-00 CLAMPCLAMP
-
255Y9-12491-00-00 CLAMP 1CLAMP 1
-
265JW-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
2795827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
285PW-81950-00-00 RELAY ASSY.RELAY ASSY.
-
295EA-81950-20-00 RELAY ASSY.RELAY ASSY.
-
305EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
315DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
325JW-82501-20-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
334BH-82511-09-00 BLANK KEYBLANK KEY
-
3490109-080G5-00 BOLTBOLT
-
3590465-10098-00 CLAMPCLAMP
-
365VS-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
375JW-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3898907-05008-00 SCREW, BINDSCREW, BIND
-
395PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
405VS-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
4191317-04025-00 BOLTBOLT
-
4290201-04325-00 WASHER, PLATEWASHER, PLATE
-
4391317-04010-00 BOLTBOLT
-
4490183-04039-00 NUT, SPRINGNUT, SPRING
-
455VS-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
4690157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
475JW-83362-00-00 HAZARD FLASHER SWITCHHAZARD FLASHER SWITCH
-
485VS-81950-00-00 RELAY ASSY.RELAY ASSY.
-
4935J-83371-32-00 HORNHORN
-
505CG-83371-10-00 HORNHORN
-
515JW-2134K-00-00 BRACKET, HORNBRACKET, HORN
-
525JW-2134L-00-00 BRACKET, HORN 2BRACKET, HORN 2
-
5392017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
543GM-83350-01-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
553Y6-85130-02-00 REAR REFLECTOR ASSY.REAR REFLECTOR ASSY.
-
5695607-05100-00 NUT, UNUT, U
-
5790201-05725-00 WASHER, PLATEWASHER, PLATE
