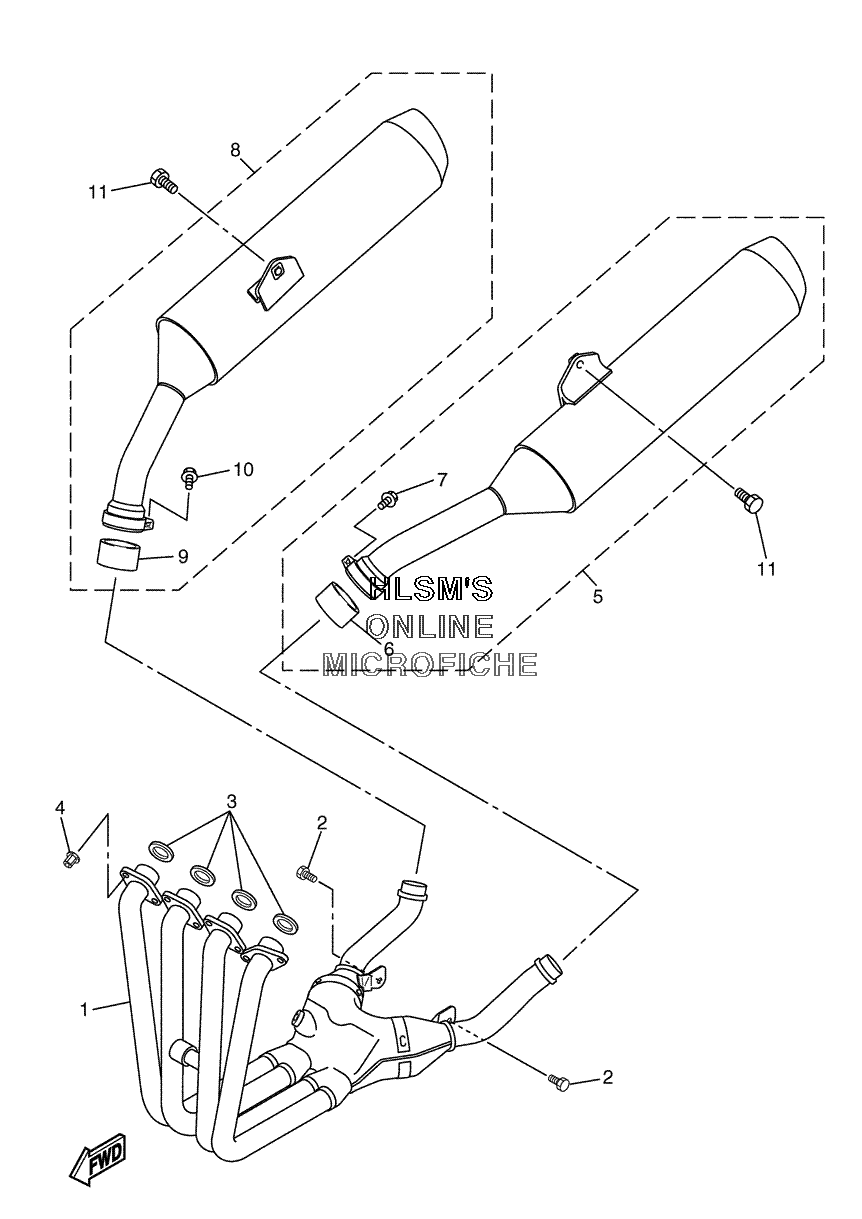

EXHAUST для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-14602-11-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
290110-08068-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
34FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
490179-08673-00 NUTNUT
-
55JW-14710-11-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
63XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
795814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
85JW-14720-11-00 MUFFLER ASSY. 2MUFFLER ASSY. 2
-
93XW-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
1095814-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1195814-10040-00 BOLT, FLANGEBOLT, FLANGE
