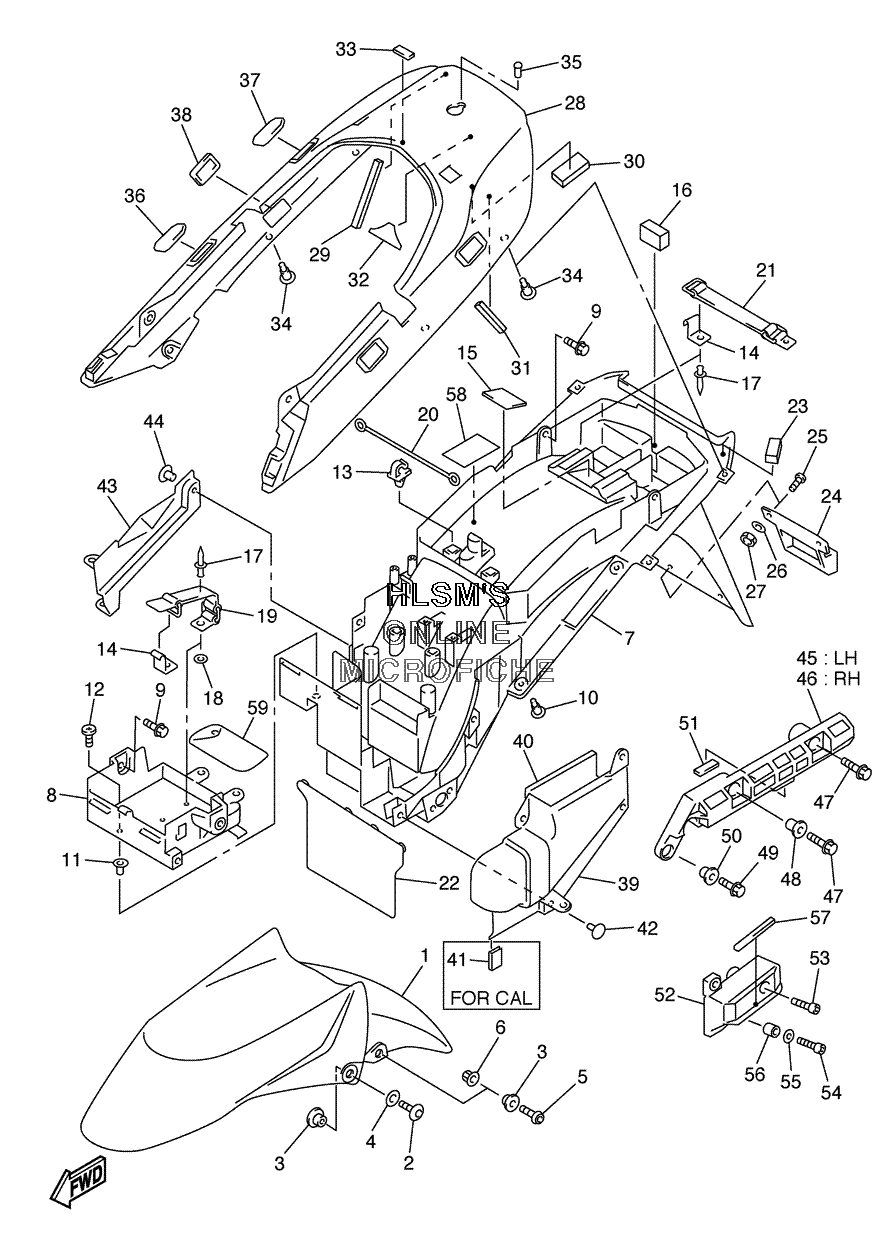

FENDER - FRONT / REAR для Yamaha FJR - 2005 года выпуска
-
№АртикулНазвание
-
15JW-21511-10-P4 FENDER, FRONT (DPBML)FENDER, FRONT (DPBML)
-
290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-07006-00 COLLARCOLLAR
-
490202-06170-00 WASHER, PLATEWASHER, PLATE
-
592014-06025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690179-06009-00 NUTNUT
-
75JW-21611-01-00 FENDER, REARFENDER, REAR
-
85JW-2160E-00-00 BOXBOX
-
990119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090269-06081-00 RIVETRIVET
-
1190338-08226-00 PLUGPLUG
-
1297707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
1390464-07259-00 CLAMPCLAMP
-
144HM-2162A-00-00 HOOKHOOK
-
155JW-2164K-00-00 PATCH 5PATCH 5
-
165VS-21667-00-00 PATCH 4PATCH 4
-
1790267-40076-00 RIVET, BLINDRIVET, BLIND
-
1890201-04018-00 WASHER, PLATEWASHER, PLATE
-
195JW-21376-00-00 BAND, TOOLBAND, TOOL
-
20256-21376-00-00 BAND, TOOLBAND, TOOL
-
215JW-21647-01-00 BANDBAND
-
225JW-21621-10-00 FLAPFLAP
-
235JW-21656-00-00 PATCH 2PATCH 2
-
245JW-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2590149-04278-00 SCREWSCREW
-
2690201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2795607-04100-00 NUT, UNUT, U
-
285JW-21651-00-P4 COVER, REAR FENDER (DPBML)COVER, REAR FENDER (DPBML)
-
295VS-21649-00-00 DAMPERDAMPER
-
304PT-28217-00-00 DAMPER 1DAMPER 1
-
315JW-21655-00-00 PATCH 1PATCH 1
-
325JW-21657-00-00 PATCHPATCH
-
333TU-2178A-00-00 LABELLABEL
-
3490269-06081-00 RIVETRIVET
-
3590269-03002-00 RIVETRIVET
-
365JW-2163E-00-P4 COVER, REAR FENDER 2 (DPBML)COVER, REAR FENDER 2 (DPBML)
-
375JW-2163E-10-P4 COVER, REAR FENDER 2 (DPBML)COVER, REAR FENDER 2 (DPBML)
-
385JW-2163F-00-P4 COVER, REAR FENDER 3 (DPBML)COVER, REAR FENDER 3 (DPBML)
-
395JW-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
405VS-21639-00-00 DAMPER 2DAMPER 2
-
413TT-21121-00-00 BRACKET, DAMPERBRACKET, DAMPER
-
4290269-06081-00 RIVETRIVET
-
435JW-2163A-11-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
4490269-06081-00 RIVETRIVET
-
455JW-2164F-00-00 STAY 1STAY 1
-
465JW-2164G-00-00 STAY 2STAY 2
-
4795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-060M9-00 COLLARCOLLAR
-
4990109-087F1-00 BOLTBOLT
-
5090387-08016-00 COLLARCOLLAR
-
515JW-21652-00-00 PROTECTORPROTECTOR
-
525JW-21165-00-00 HANDLE, STANDINGHANDLE, STANDING
-
5391317-06025-00 BOLTBOLT
-
5490109-06014-00 BOLTBOLT
-
5590201-062A8-00 WASHER, PLATEWASHER, PLATE
-
5690387-064M9-00 COLLARCOLLAR
-
575JW-2174X-00-00 DAMPERDAMPER
-
585JW-2179V-20-00 PLATE, EPA 1 (EXCEPT CALIF.)PLATE, EPA 1 (EXCEPT CALIF.)
-
585JW-2179R-20-00 PLATE, EPA 2 (CALIF. ONLY)PLATE, EPA 2 (CALIF. ONLY)
-
595JW-28100-00-00 TOOL KITTOOL KIT
