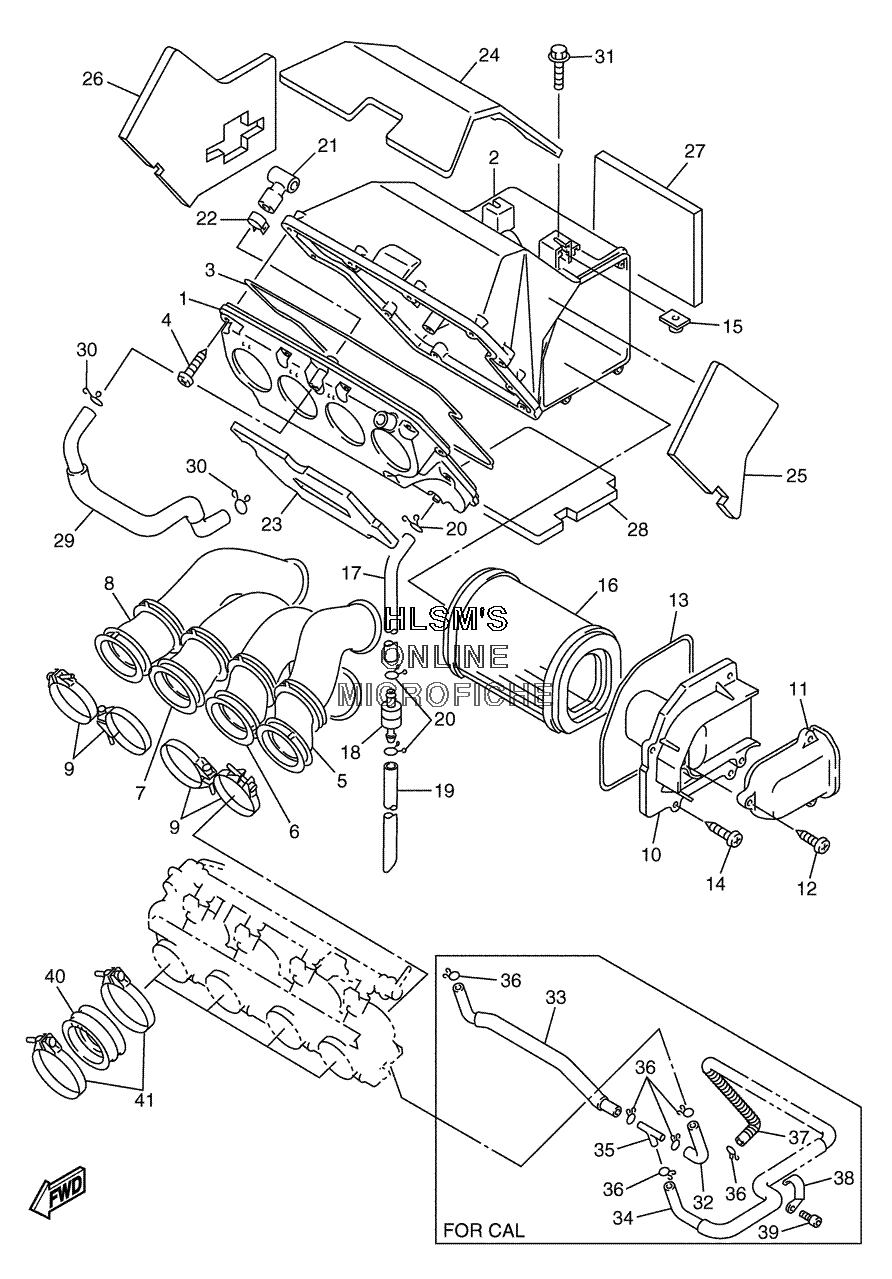

AIR CLEANER W/ INTAKE для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
25JW-14421-01-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
34XV-14452-00-00 SEALSEAL
-
497707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
55JW-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
65JW-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
75JW-14454-10-00 JOINTJOINT
-
85JW-14568-00-00 JOINTJOINT
-
990450-57001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
105JW-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
115JW-14437-00-00 DUCTDUCT
-
1297707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
135JW-14452-00-00 SEALSEAL
-
1497707-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
1531A-14477-00-00 PLATEPLATE
-
165JW-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1790445-11293-00 HOSEHOSE
-
184X7-2149Y-00-00 FILTER ASSY.FILTER ASSY.
-
1990445-11003-00 HOSEHOSE
-
2090467-10041-00 CLIP, SCISSORCLIP, SCISSOR
-
215JW-14419-00-00 PIPEPIPE
-
2290468-08104-00 CLIPCLIP
-
235JW-14409-00-00 DAMPERDAMPER
-
245JW-14425-00-00 DAMPER 1DAMPER 1
-
255JW-14426-00-00 DAMPER 2DAMPER 2
-
265JW-1442G-00-00 DAMPER 3DAMPER 3
-
275JW-1442H-00-00 DAMPER 4DAMPER 4
-
285JW-1442L-00-00 DAMPER 5DAMPER 5
-
295JW-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3090467-14015-00 CLIP, SCISSORCLIP, SCISSOR
-
3195807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
325JW-14465-00-00 PIPEPIPE
-
335JW-14466-00-00 PIPEPIPE
-
345JW-1443J-00-00 PIPEPIPE
-
353H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
3690467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
3790501-101J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3890465-08031-00 CLAMPCLAMP
-
3990110-06041-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
405JW-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
4190450-63001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
