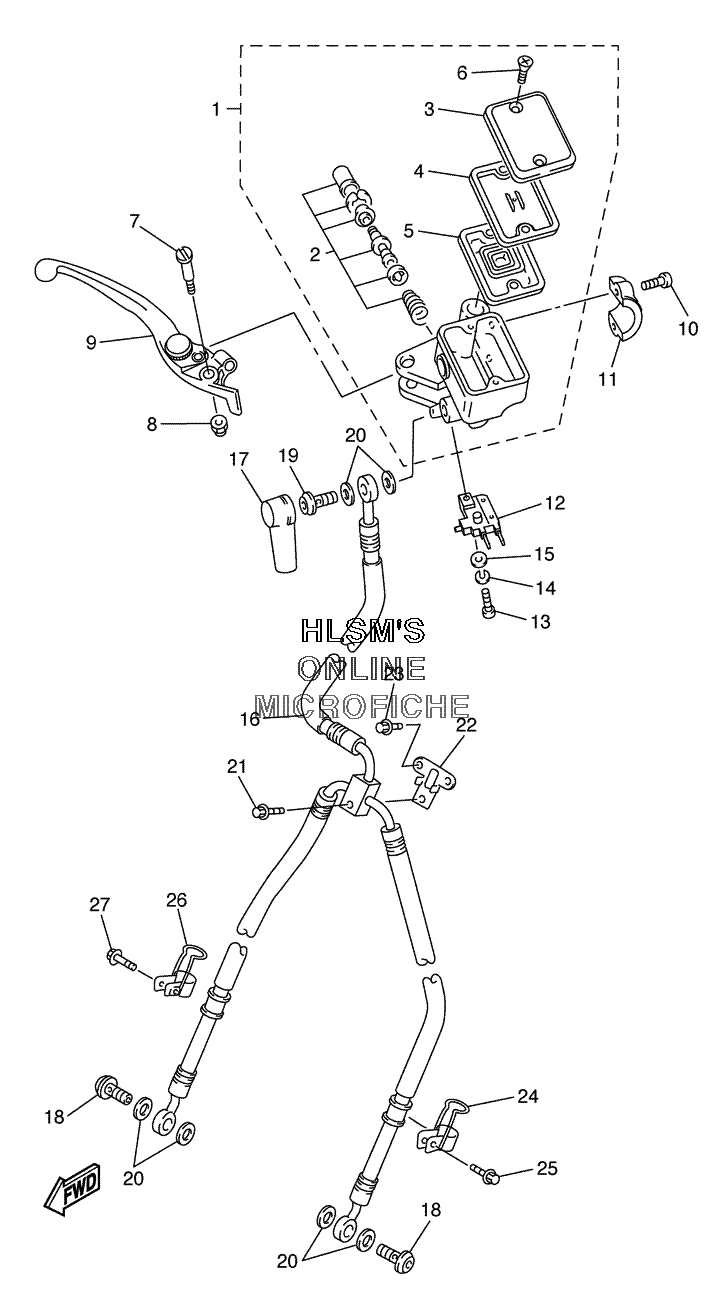

BRAKE - FRONT MASTER CYLINDER для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-W2587-00-00 MASTER CYLINDER SUB ASSY.MASTER CYLINDER SUB ASSY.
-
25JW-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
55VS-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, UNUT, U
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
124HM-83980-00-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
165JW-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
174L0-25862-01-00 BOOT, MASTER CYLINDERBOOT, MASTER CYLINDER
-
1890401-10172-00 BOLT, UNIONBOLT, UNION
-
1990401-10020-00 BOLT, UNIONBOLT, UNION
-
2090201-10118-00 WASHER, PLATEWASHER, PLATE
-
2195027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
225JW-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
244KG-25887-01-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2595024-06025-00 BOLT, FLANGEBOLT, FLANGE
-
264KG-25876-01-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2795024-06025-00 BOLT, FLANGEBOLT, FLANGE
