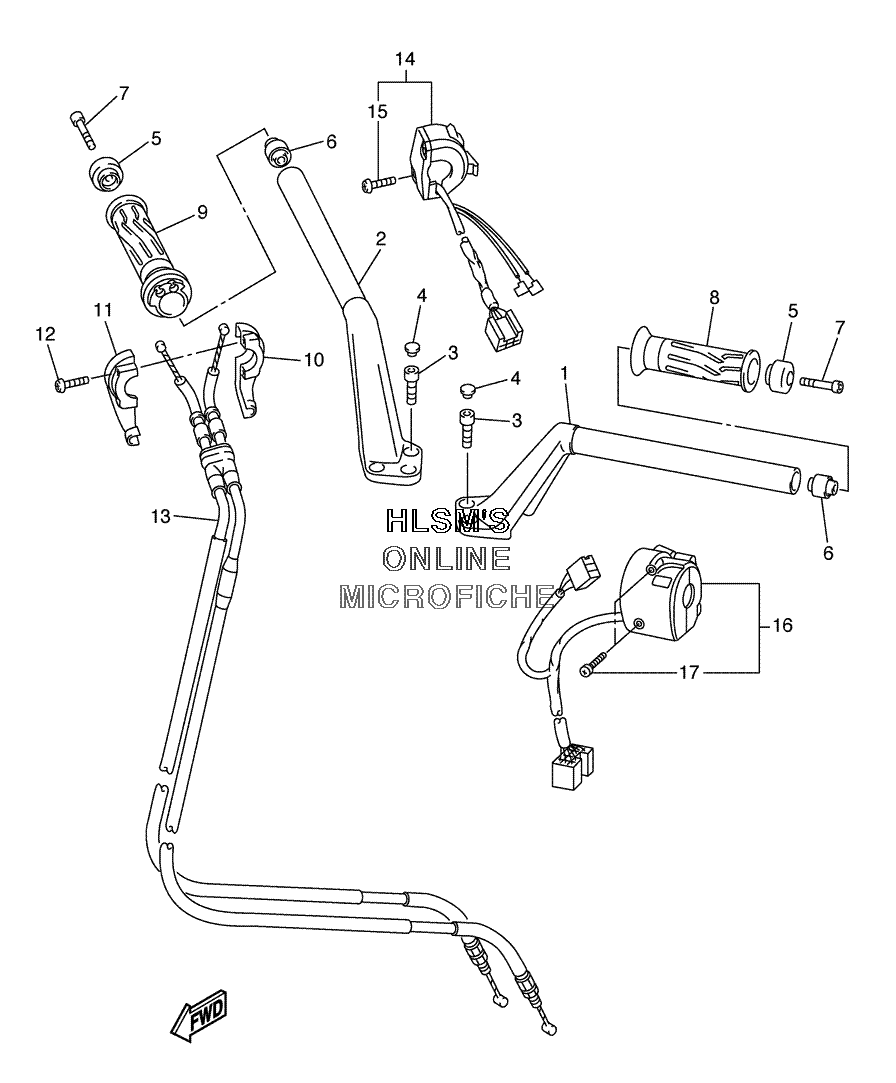

HANDLEBAR W/ CABLES для Yamaha FJR - 2005 года выпуска`
-
№АртикулНазвание
-
15JW-26121-20-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
25JW-26122-20-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
391314-08030-00 BOLTBOLT
-
490338-08163-00 PLUGPLUG
-
54XV-26246-00-00 END, GRIPEND, GRIP
-
64XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
791317-06025-00 BOLTBOLT
-
85JW-26241-00-00 GRIPGRIP
-
95JW-26240-00-00 GRIP ASSY.GRIP ASSY.
-
103XW-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
113XW-26282-01-00 CAP, GRIP LOWERCAP, GRIP LOWER
-
1298507-05035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
135JW-26302-00-00 THROTTLE CABLE ASSY.THROTTLE CABLE ASSY.
-
145RT-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1598507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
165JW-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
1798507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
