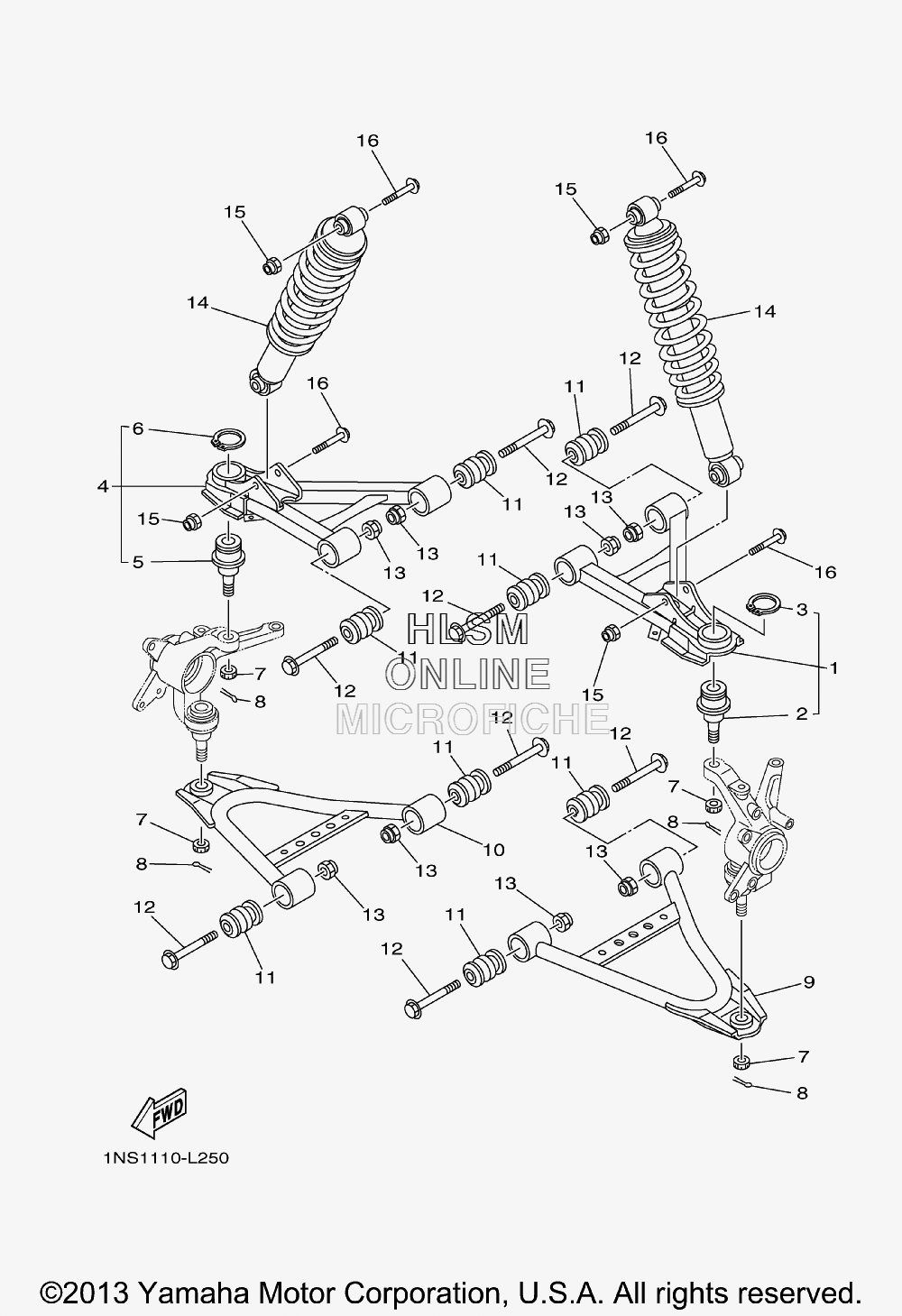

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
15ND-F3540-13-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
237S-23549-01-00 ...BALL JOINT 1...BALL JOINT 1
-
399009-32400-00 ...CIRCLIP...CIRCLIP
-
45ND-F3550-13-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
537S-23549-01-00 ...BALL JOINT 1...BALL JOINT 1
-
699009-32400-00 ...CIRCLIP...CIRCLIP
-
790171-12001-00 NUT, CASTLENUT, CASTLE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
95ND-F357A-01-00 ARM,FR. LWR. LH.ARM,FR. LWR. LH.
-
105ND-F358A-01-00 ARM,FR. LWR. RH.ARM,FR. LWR. RH.
-
112HR-23526-00-00 BUSHBUSH
-
1295812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1390185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
141NS-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690105-10841-00 BOLT, FLANGEBOLT, FLANGE
