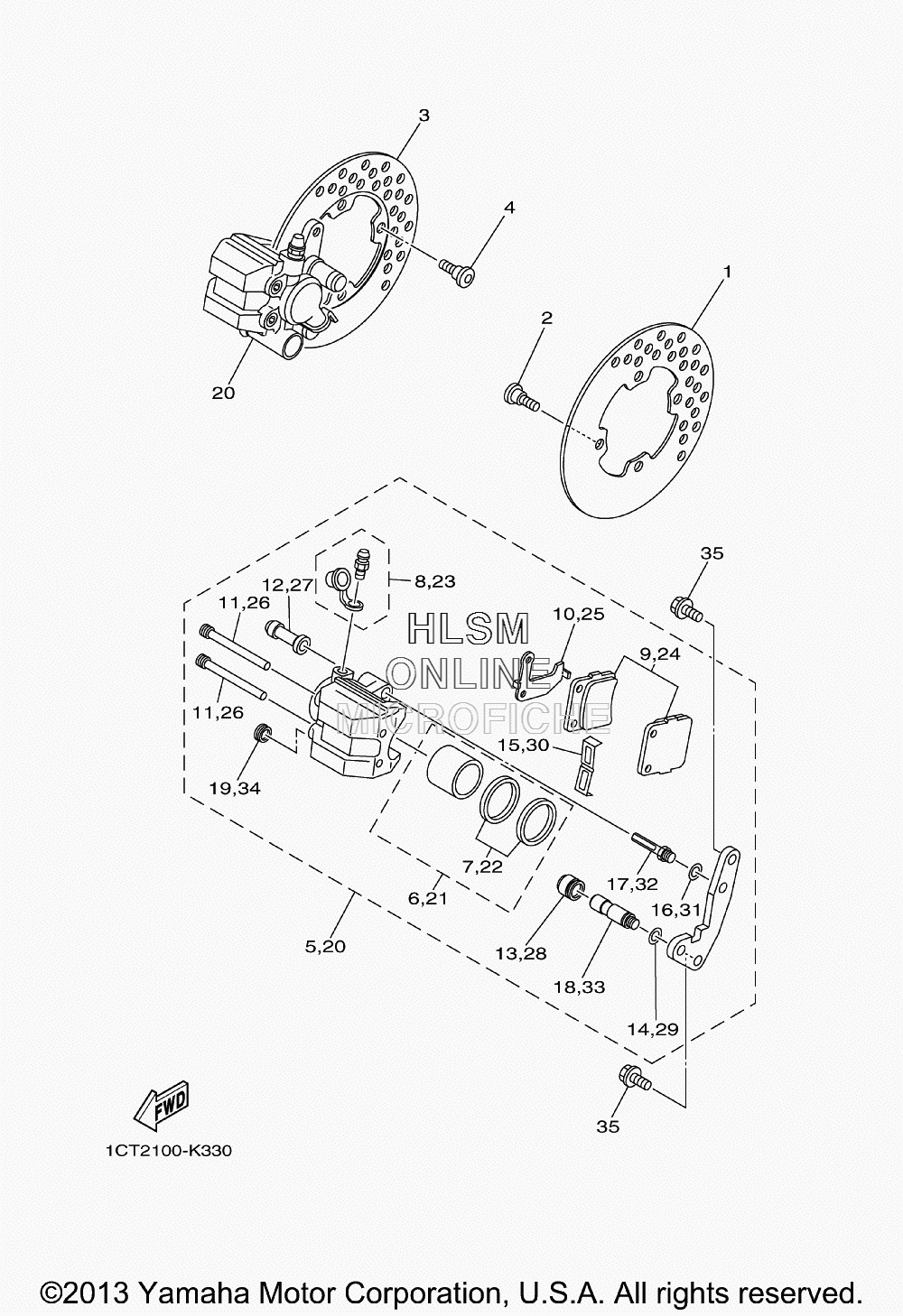

BRAKE - FRONT CALIPER для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
15ND-F582T-00-00 DISC BRAKE (FRONT)DISC BRAKE (FRONT)
-
290109-08082-00 BOLTBOLT
-
35ND-F582T-00-00 DISC BRAKE (FRONT)DISC BRAKE (FRONT)
-
490109-08082-00 BOLTBOLT
-
53GD-2580T-01-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
63GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
93GD-W0045-01-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
103GD-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
113GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
121UY-25937-51-00 ...BOOT 2...BOOT 2
-
131UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
141UY-25934-51-00 ...SPRING, PAD...SPRING, PAD
-
151UY-25919-51-00 ...SUPPORT, PAD...SUPPORT, PAD
-
161UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
171UY-25926-51-00 ...BOLT...BOLT
-
183GD-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
193GD-25916-00-00 ...PLUG...PLUG
-
203GD-2580U-01-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
213GD-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
223GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
231UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
243GD-W0045-01-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
253GD-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
263GD-25933-00-00 ...PIN, PAD...PIN, PAD
-
271UY-25937-51-00 ...BOOT 2...BOOT 2
-
281UY-25917-51-00 ...BOOT, CALIPER...BOOT, CALIPER
-
291UY-25934-51-00 ...SPRING, PAD...SPRING, PAD
-
301UY-25919-51-00 ...SUPPORT, PAD...SUPPORT, PAD
-
311UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
321UY-25926-51-00 ...BOLT...BOLT
-
333GD-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
343GD-25916-00-00 ...PLUG...PLUG
-
3590105-08161-00 BOLT, FLANGEBOLT, FLANGE
