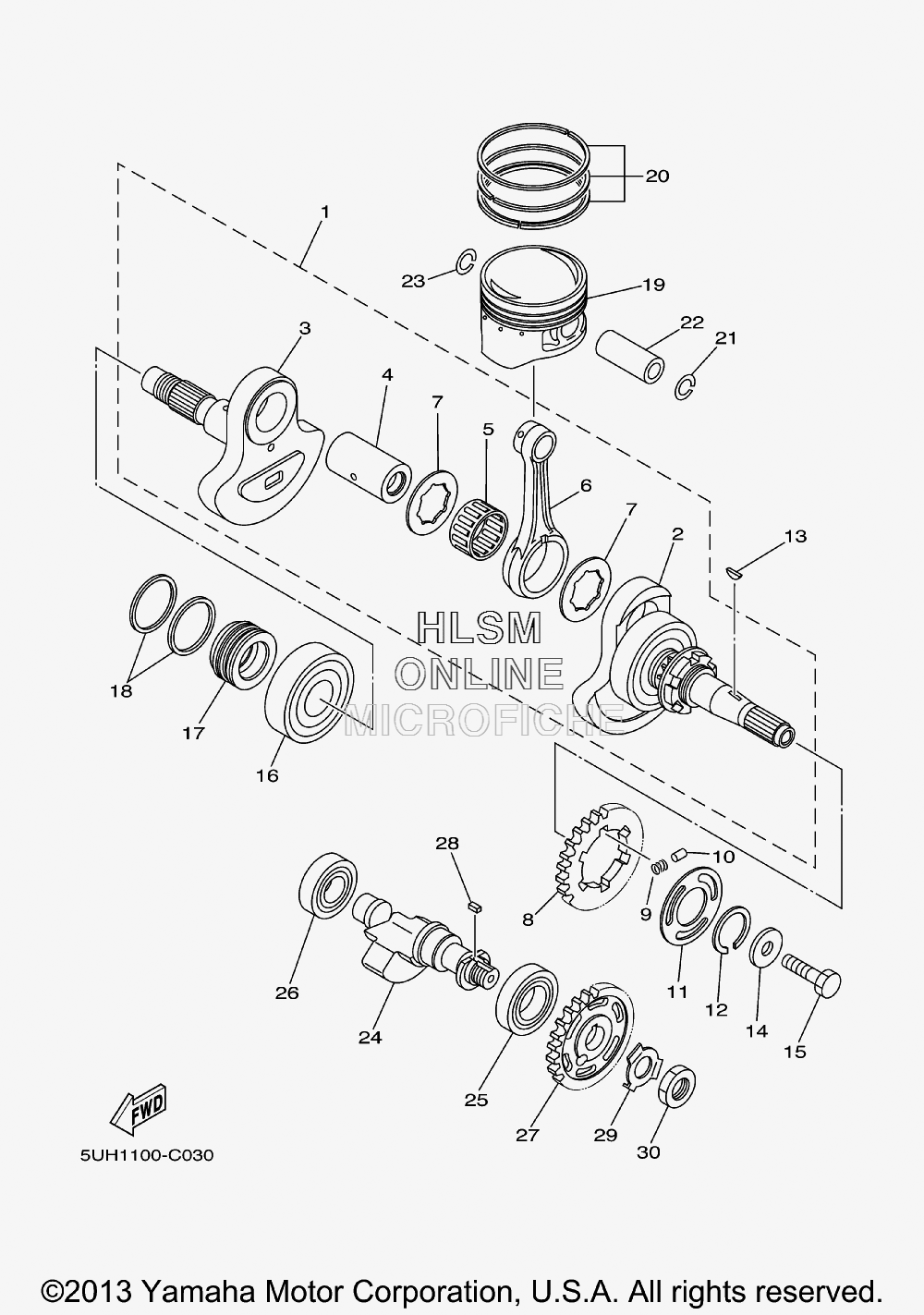

CRANKSHAFT - PISTON для Yamaha GRIZZLY 350 - 2014 года выпуска`
-
№АртикулНазвание
-
15UH-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25UH-11401-09-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
35UH-11402-09-00 ...CRANK SUB ASSY 2...CRANK SUB ASSY 2
-
430X-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-633P5-00 ...BEARING...BEARING
-
65UH-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790209-33253-00 ...WASHER SPEC'L SHAPE...WASHER SPEC'L SHAPE
-
85UH-11536-00-00 GEAR, DRIVEGEAR, DRIVE
-
990501-22721-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1093605-10090-00 PIN, DOWELPIN, DOWEL
-
115UH-11565-00-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
1299009-32400-00 CIRCLIPCIRCLIP
-
1390280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
1490201-10038-00 WASHER, PLATEWASHER, PLATE
-
1590101-10017-00 BOLTBOLT
-
1693306-30611-00 BEARINGBEARING
-
175UH-16181-00-00 SPACER 1SPACER 1
-
185KM-11447-00-00 SEAL, CRANKSEAL, CRANK
-
195UH-11638-00-00 PISTON (1.00MM O/S) (OPT)PISTON (1.00MM O/S) (OPT)
-
195UH-11631-00-C0 PISTON (STD)PISTON (STD)
-
195UH-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
204GB-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
204GB-11610-40-00 PISTON RING SET (1.00MM O/S) (OPT)PISTON RING SET (1.00MM O/S) (OPT)
-
204GB-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
2193450-19095-00 CIRCLIPCIRCLIP
-
2255V-11633-00-00 PIN, PISTONPIN, PISTON
-
2393450-19095-00 CIRCLIPCIRCLIP
-
245UH-11454-01-00 WEIGHT 1WEIGHT 1
-
2593306-00612-00 BEARINGBEARING
-
2693306-20402-00 BEARINGBEARING
-
275UH-11531-00-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
2890282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2990215-16258-00 WASHER, LOCKWASHER, LOCK
-
3090170-16326-00 NUTNUT
