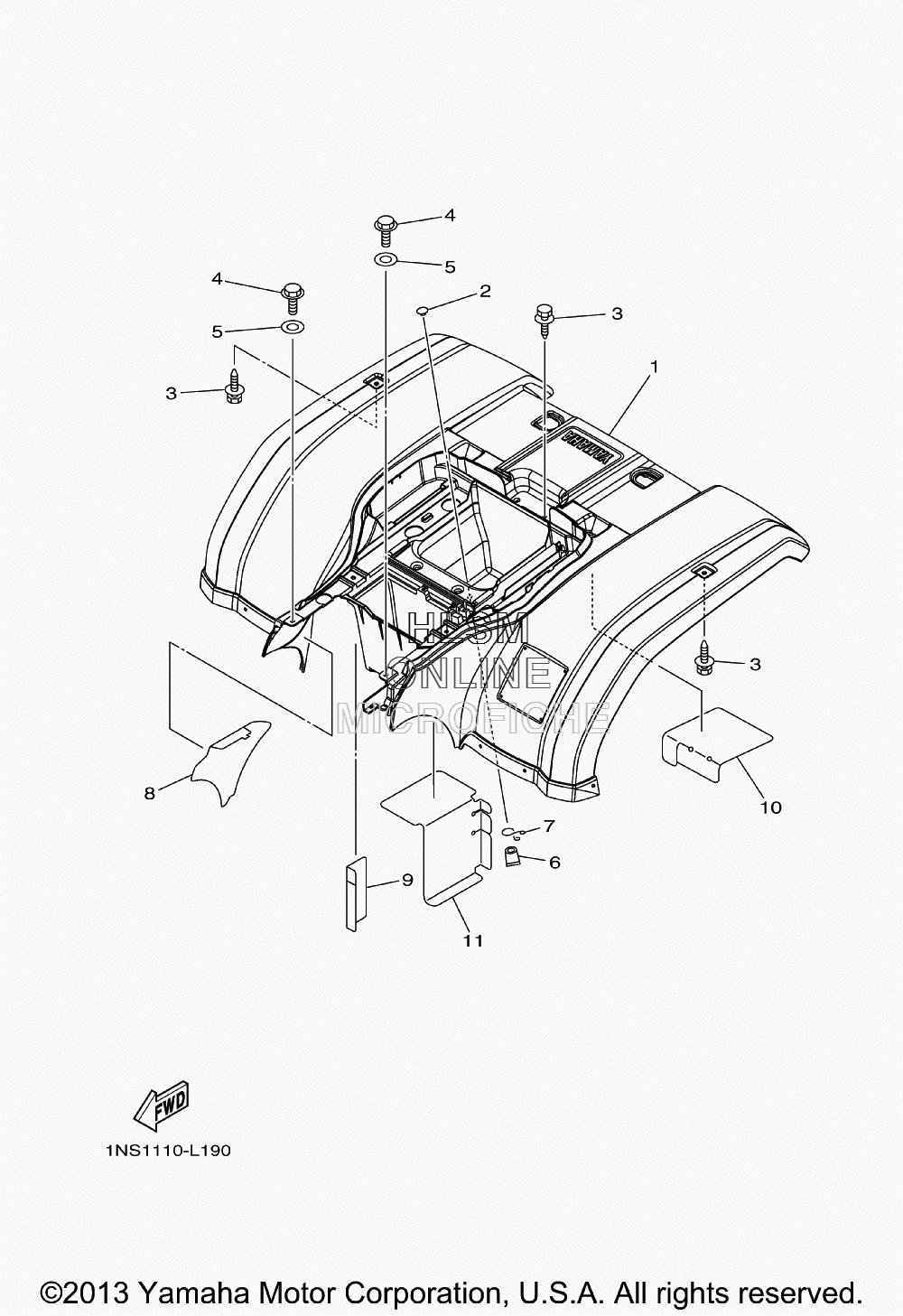

FENDER - REAR для Yamaha GRIZZLY 350 - 2014 года выпуска`
-
№АртикулНазвание
-
15ND-F1600-W1-00 REAR FENDER ASSY. FOR PDGREAR FENDER ASSY. FOR PDG
-
15ND-F1600-X1-00 REAR FENDER ASSY. FOR DPBSNREAR FENDER ASSY. FOR DPBSN
-
137S-F1600-50-00 REAR FENDER ASSY. FOR RTRREAR FENDER ASSY. FOR RTR
-
290338-09801-00 PLUGPLUG
-
390119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
65BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
790467-160A4-00 CLIPCLIP
-
85ND-F163A-02-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
95ND-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
105ND-F1652-00-00 PROTECTORPROTECTOR
-
111NS-F163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
