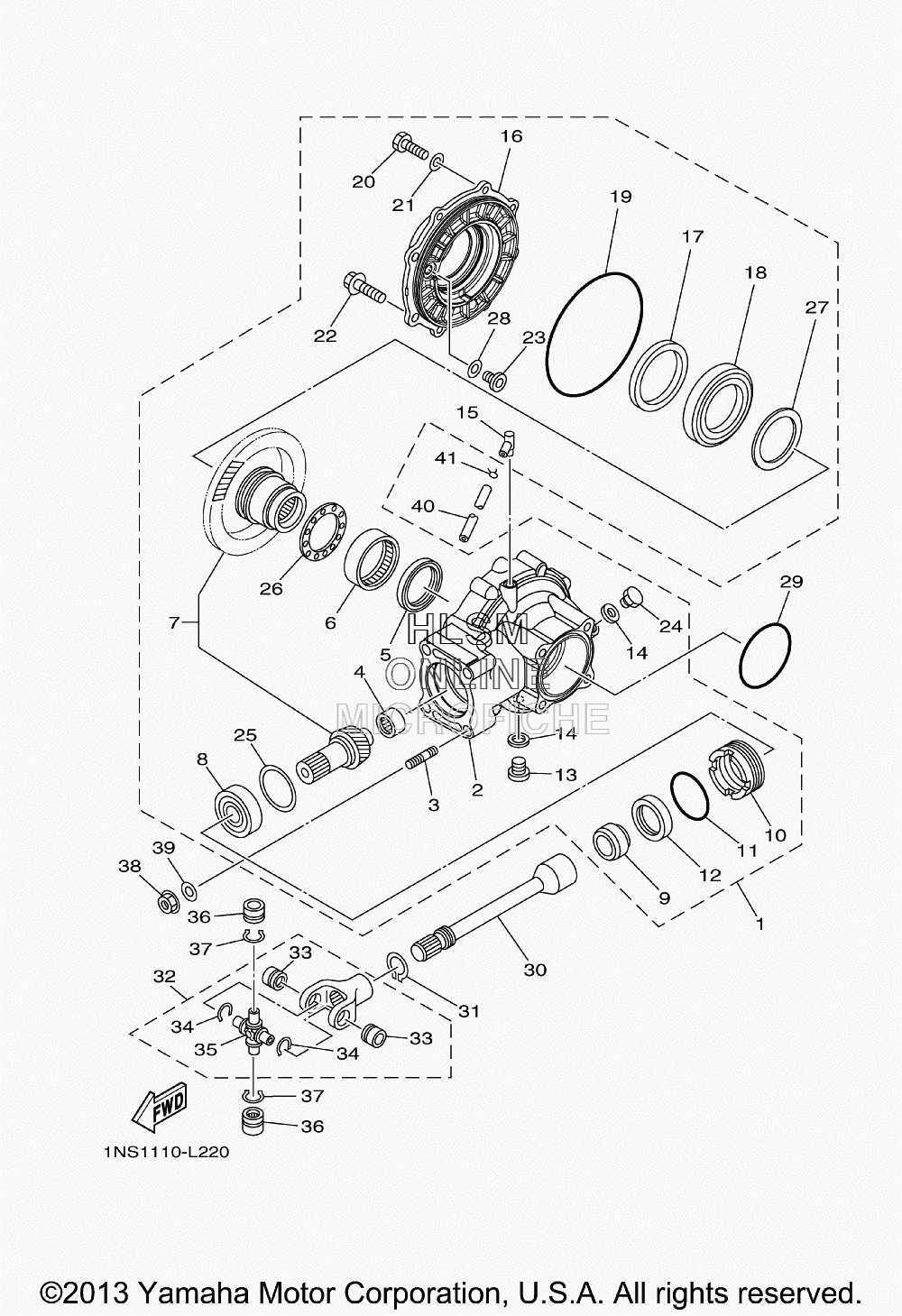

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 350 - 2014 года выпуска

№

Артикул

Название
1

1NS-G6101-00-00 REAR AXLE GEAR CASE ASSY

REAR AXLE GEAR CASE ASSY

235 610 ₽
2

1NS-G6151-00-00 ...HOUSING, DRIVE SHAFT

...HOUSING, DRIVE SHAFT

33 540 ₽
3

90116-10593-00 ...BOLT, STUD

...BOLT, STUD

470 ₽
4

4XE-G6102-00-00 ...BEARING ASSY

...BEARING ASSY

13 070 ₽
5

93101-52116-00 ...OIL SEAL S-TYPE (63

...OIL SEAL S-TYPE (63

1 070 ₽
6

93317-855Y9-00 ...BEARING

...BEARING

12 590 ₽
7

5GT-Y4612-00-00 ...RING GEAR SET

...RING GEAR SET

85 670 ₽
8

93306-305Y6-00 ...BEARING

...BEARING

13 220 ₽
9

90387-255H9-00 ...COLLAR

...COLLAR

1 880 ₽
10

29U-46125-00-00 ...RETAINER, BEARING

...RETAINER, BEARING

5 030 ₽
11

93210-59531-00 ...O-RING

...O-RING

970 ₽
12

93101-38098-00 ...OIL SEAL S-TYPE

...OIL SEAL S-TYPE

1 200 ₽
13

90340-14002-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

470 ₽
14

214-11198-01-00 ...GASKET

...GASKET

260 ₽
15

2N4-15371-00-00 ...BREATHER

...BREATHER

2 200 ₽
16

1NS-G6152-00-00 ...HOUSING, BEARING

...HOUSING, BEARING

15 110 ₽
17

93102-65386-00 ...OIL SEAL

...OIL SEAL

2 200 ₽
18

93316-013Y0-00 ...BEARING

...BEARING

17 320 ₽
19

93211-51749-00 ...O-RING

...O-RING

2 200 ₽
20

97022-08025-00 ...BOLT, HEXAGON

...BOLT, HEXAGON

280 ₽
21

92902-08600-00 ...WASHER, PLATE

...WASHER, PLATE

180 ₽
22

95812-10025-00 ...BOLT, FLANGE

...BOLT, FLANGE

250 ₽
23

5FU-G6156-00-00 ...STOPPER, RING GEAR

...STOPPER, RING GEAR

4 250 ₽
24

90340-14029-00 ...PLUG, STRAIGHT SCREW

...PLUG, STRAIGHT SCREW

540 ₽
25

4XE-E7537-50-00 ...SHIM, THRUST (T=0.50MM) (OPT)

...SHIM, THRUST (T=0.50MM) (OPT)

970 ₽
25

4XE-E7537-45-00 ...SHIM, THRUST (T=0.45MM) (OPT)

...SHIM, THRUST (T=0.45MM) (OPT)

970 ₽
25

4XE-E7537-40-00 ...SHIM, THRUST (T=0.40MM) (OPT)

...SHIM, THRUST (T=0.40MM) (OPT)

850 ₽
25

4XE-E7537-30-00 ...SHIM, THRUST (T=0.30MM) (OPT)

...SHIM, THRUST (T=0.30MM) (OPT)

1 230 ₽
25

4XE-E7537-60-00 ...SHIM, THRUST (T=0.60MM) (OPT)

...SHIM, THRUST (T=0.60MM) (OPT)

1 230 ₽
25

4XE-E7537-15-00 ...SHIM, THRUST (T=0.15MM) (OPT)

...SHIM, THRUST (T=0.15MM) (OPT)

790 ₽
26

4XE-G6118-16-00 ...SHIM, THRUST (T=1.6MM) (OPT)

...SHIM, THRUST (T=1.6MM) (OPT)

2 830 ₽
26

4XE-G6118-15-00 ...SHIM, THRUST (T=1.5MM) (OPT)

...SHIM, THRUST (T=1.5MM) (OPT)

2 670 ₽
26

4XE-G6118-14-00 ...SHIM, THRUST (T=1.4MM) (OPT)

...SHIM, THRUST (T=1.4MM) (OPT)

2 670 ₽
26

4XE-G6118-13-00 ...SHIM, THRUST (T=1.3MM) (OPT)

...SHIM, THRUST (T=1.3MM) (OPT)

2 830 ₽
26

4XE-G6118-12-00 ...SHIM, THRUST (T=1.2MM) (OPT)

...SHIM, THRUST (T=1.2MM) (OPT)

2 830 ₽
26

4XE-G6118-11-00 ...SHIM, THRUST (T=1.1MM) (OPT)

...SHIM, THRUST (T=1.1MM) (OPT)

2 830 ₽
26

4XE-G6118-10-00 ...SHIM, THRUST (T=1.0MM) (OPT)

...SHIM, THRUST (T=1.0MM) (OPT)

0 ₽
26

4XE-G6118-17-00 ...SHIM, THRUST (T=1.7MM) (OPT)

...SHIM, THRUST (T=1.7MM) (OPT)

2 670 ₽
26

4XE-G6118-21-00 ...SHIM, THRUST (T=2.1MM) (OPT)

...SHIM, THRUST (T=2.1MM) (OPT)

2 990 ₽
26

4XE-G6118-20-00 ...SHIM, THRUST (T=2.0MM) (OPT)

...SHIM, THRUST (T=2.0MM) (OPT)

2 830 ₽
26

4XE-G6118-19-00 ...SHIM, THRUST (T=1.9MM) (OPT)

...SHIM, THRUST (T=1.9MM) (OPT)

2 830 ₽
26

4XE-G6118-18-00 ...SHIM, THRUST (T=1.8MM) (OPT)

...SHIM, THRUST (T=1.8MM) (OPT)

2 830 ₽
27

4XE-G6117-25-00 ...SHIM, RING GEAR (T=0.25MM) (OPT)

...SHIM, RING GEAR (T=0.25MM) (OPT)

1 230 ₽
27

4XE-G6117-30-00 ...SHIM, RING GEAR (T=0.30MM) (OPT)

...SHIM, RING GEAR (T=0.30MM) (OPT)

920 ₽
27

4XE-G6117-35-00 ...SHIM, RING GEAR (T=0.35MM) (OPT)

...SHIM, RING GEAR (T=0.35MM) (OPT)

970 ₽
27

4XE-G6117-40-00 ...SHIM, RING GEAR (T=0.40MM) (OPT)

...SHIM, RING GEAR (T=0.40MM) (OPT)

970 ₽
27

4XE-G6117-45-00 ...SHIM, RING GEAR (T=0.45MM) (OPT)

...SHIM, RING GEAR (T=0.45MM) (OPT)

1 140 ₽
27

4XE-G6117-50-00 ...SHIM, RING GEAR (T=0.50MM) (OPT)

...SHIM, RING GEAR (T=0.50MM) (OPT)

1 070 ₽
28

5FU-G6157-10-00 ...SHIM, RING GEAR (T=0.10MM) (OPT)

...SHIM, RING GEAR (T=0.10MM) (OPT)

850 ₽
28

5FU-G6157-15-00 ...SHIM, RING GEAR (T=0.15MM) (OPT)

...SHIM, RING GEAR (T=0.15MM) (OPT)

850 ₽
28

5FU-G6157-20-00 ...SHIM, RING GEAR (T=0.20MM) (OPT)

...SHIM, RING GEAR (T=0.20MM) (OPT)

850 ₽
28

5FU-G6157-30-00 ...SHIM, RING GEAR (T=0.30MM) (OPT)

...SHIM, RING GEAR (T=0.30MM) (OPT)

850 ₽
28

5FU-G6157-40-00 ...SHIM, RING GEAR (T=0.40MM) (OPT)

...SHIM, RING GEAR (T=0.40MM) (OPT)

850 ₽
28

5FU-G6157-50-00 ...SHIM, RING GEAR (T=0.50MM) (OPT)

...SHIM, RING GEAR (T=0.50MM) (OPT)

720 ₽
29

93210-76800-00 O-RING

O-RING

650 ₽
30

5ND-G6172-10-00 SHAFT, DRIVE

SHAFT, DRIVE

22 040 ₽
31

93410-22039-00 CIRCLIP S-TYPE

CIRCLIP S-TYPE

470 ₽
32

3HN-46108-01-00 CROSS JOINT COMP. 3

CROSS JOINT COMP. 3

38 270 ₽
33

93399-99926-00 ...BEARING

...BEARING

3 300 ₽
34

93440-20088-00 ...CIRCLIP

...CIRCLIP

290 ₽
35

2HR-46187-00-00 ...SPIDER

...SPIDER

14 480 ₽
36

93399-99926-00 BEARING

BEARING

3 300 ₽
37

93440-20088-00 CIRCLIP

CIRCLIP

290 ₽
38

95702-10500-00 NUT, FLANGE

NUT, FLANGE

320 ₽
39

90201-10036-00 WASHER, PLATE

WASHER, PLATE

340 ₽
40

90445-07810-00 HOSE (L1050)

HOSE (L1050)

2 040 ₽
41

90467-07029-00 CLIP

CLIP

370 ₽
