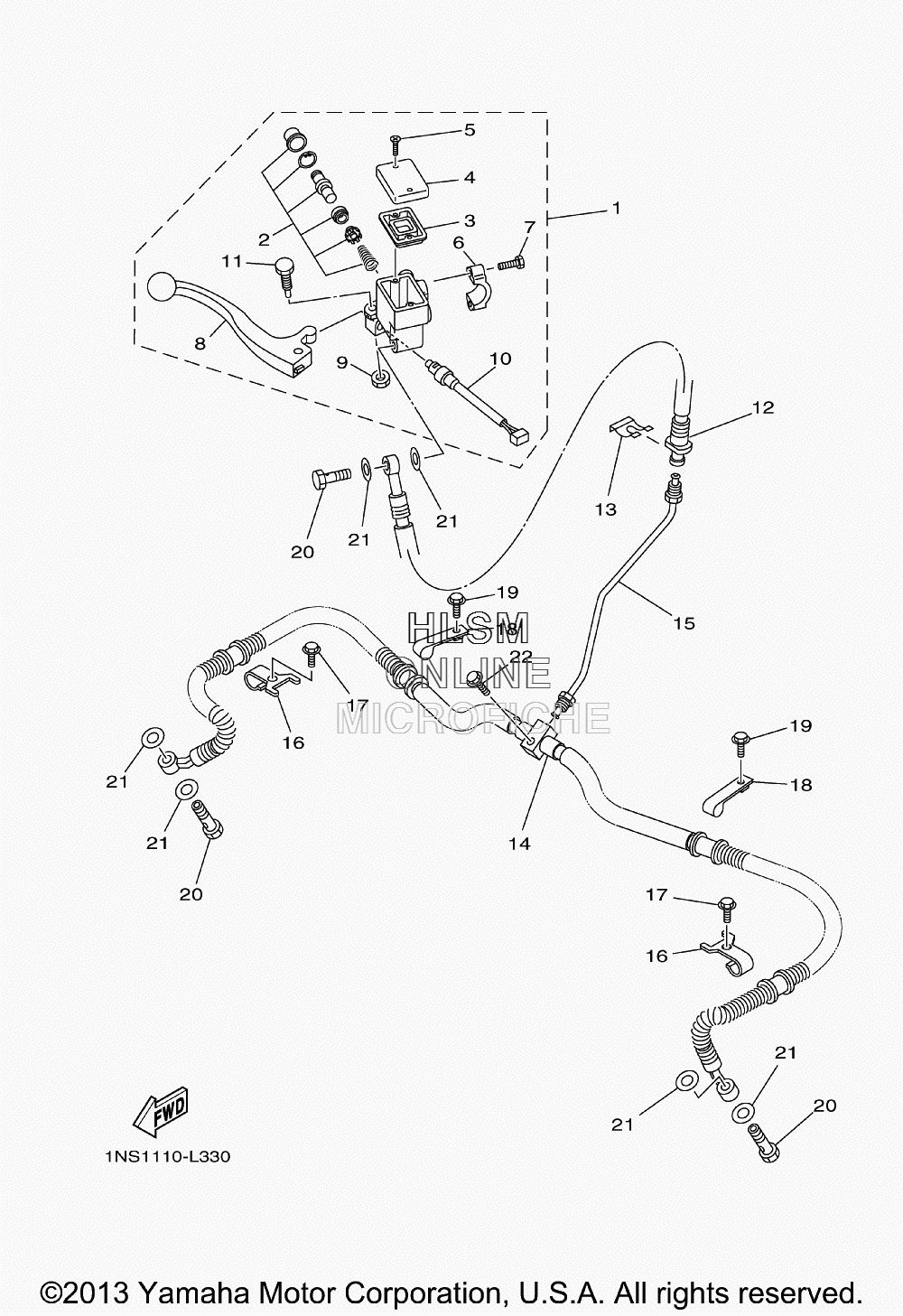

BRAKE - FRONT MASTER CYLINDER для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
15KM-2583T-10-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
28CR-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34L0-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
45LP-25852-02-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
598702-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
65GM-25867-10-00 ...BRACKET, MASTER CYLINDER...BRACKET, MASTER CYLINDER
-
75MV-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
85KM-83922-00-00 ...LEVER 2...LEVER 2
-
995701-06500-00 ...NUT, WITH WASHER...NUT, WITH WASHER
-
105LP-83980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
111FK-2589F-10-00 ...BOLT, LEVER...BOLT, LEVER
-
125ND-F5872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
132GU-25866-00-00 CIRCLIPCIRCLIP
-
141NS-F5873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
155ND-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
165ND-F5875-01-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1795812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
185ND-F3192-01-00 BANDBAND
-
1995812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2090401-10015-00 BOLT, UNIONBOLT, UNION
-
2190201-10118-00 WASHER, PLATEWASHER, PLATE
-
2295812-06025-00 BOLT, FLANGEBOLT, FLANGE
