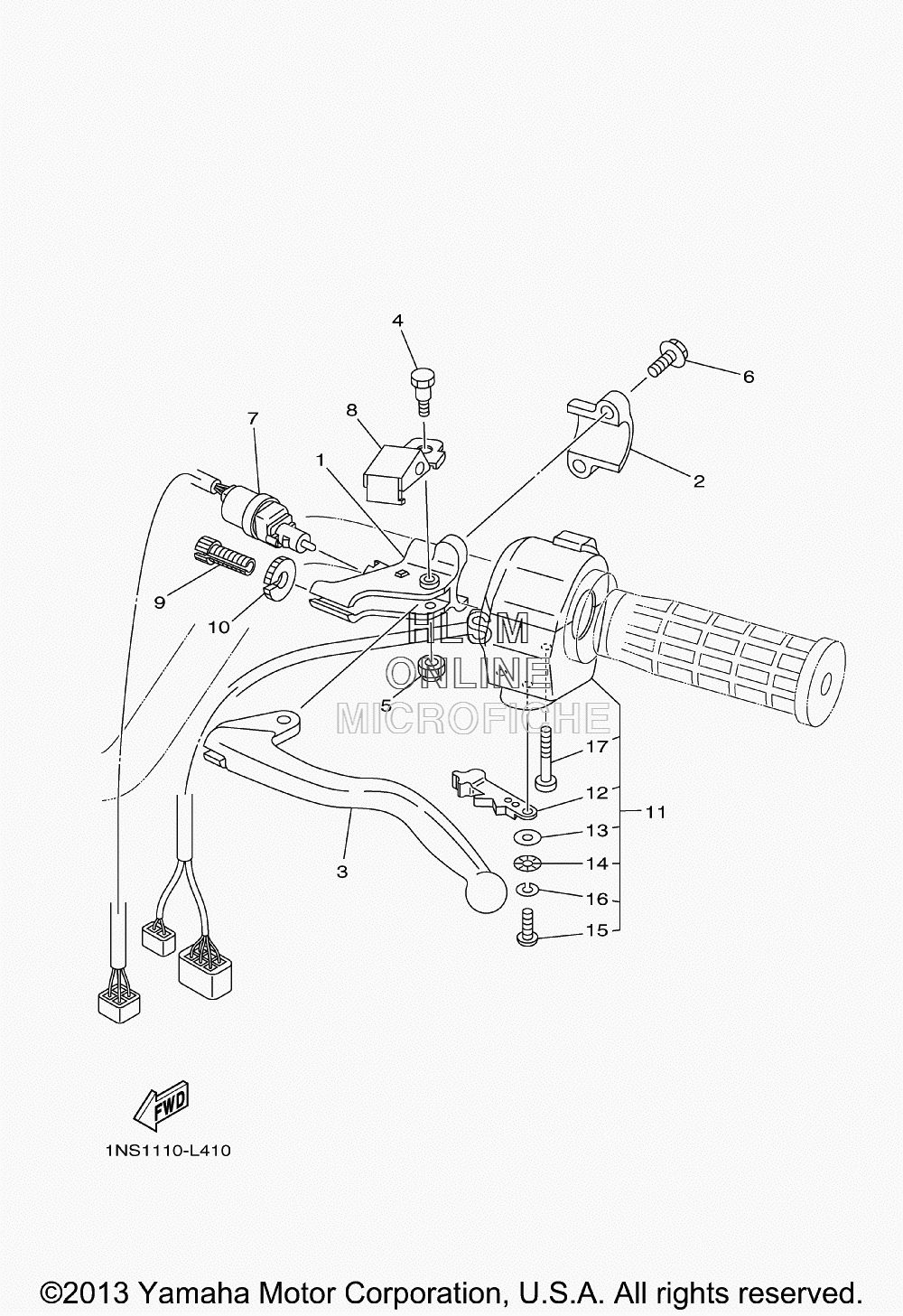

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha GRIZZLY 350 - 2014 года выпуска
-
№АртикулНазвание
-
11YW-82911-10-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
25LP-82913-11-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
45FU-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
595602-06100-00 NUT, UNUT, U
-
695022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
73FA-83980-03-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
81YW-83965-00-00 LEVER, LOCKLEVER, LOCK
-
990123-08002-00 BOLTBOLT
-
1090179-08030-00 NUTNUT
-
115LP-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
125GH-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
131UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
143L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1598517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1692907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1798507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
