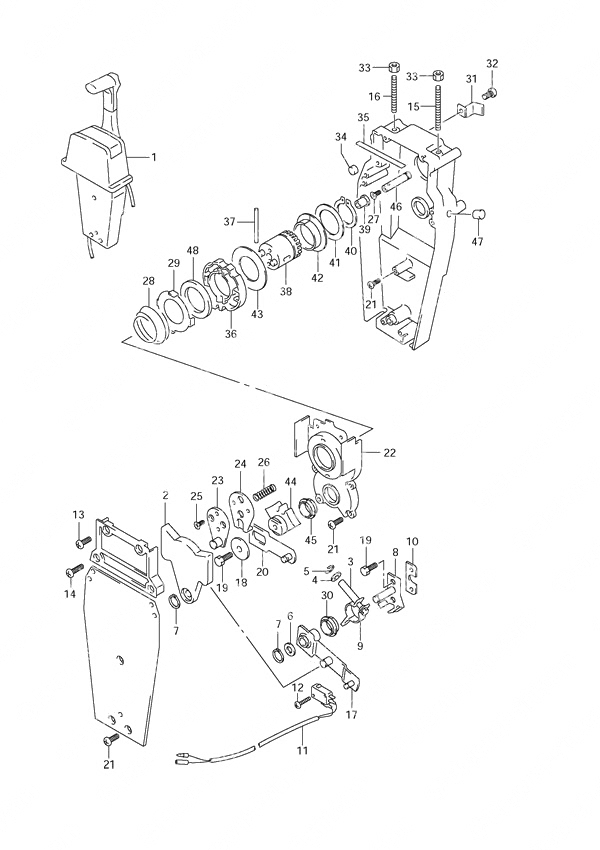

Fig. 56 - Opt: Top Mount Single (2) для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
167200-88L01-000 Single Binnacle Control BoxSingle Binnacle Control Box
-
267222-92E00-000 • Dual Plate• Dual Plate
-
367223-92E00-000 • Brake Adjust (NLA)• Brake Adjust (NLA)
-
467288-92E00-000 • Washer• Washer
-
567292-94300-000 • E Ring• E Ring
-
667288-92E10-000 • Washer (NLA)• Washer (NLA)
-
767291-92E00-000 • Snap Ring (NLA)• Snap Ring (NLA)
-
867221-92E00-000 • Shift Assembly (NLA)• Shift Assembly (NLA)
-
967224-92E00-000 • Brake Arm Assembly (NLA)• Brake Arm Assembly (NLA)
-
1067294-92E00-000 • Spacer (NLA)• Spacer (NLA)
-
1137721-95500-000 • Neutral Switch Assembly• Neutral Switch Assembly
-
1267296-92E11-000 • Screw (3x15)• Screw (3x15)
-
1367296-88D10-000 • Screw (5x16)• Screw (5x16)
-
1467296-92E20-000 • Screw (5x25) (NLA)• Screw (5x25) (NLA)
-
1567226-92E00-000 • Bolt (NLA)• Bolt (NLA)
-
1667226-92E10-000 • Bolt (NLA)• Bolt (NLA)
-
1767240-92E00-000 • Throttle Arm Assembly (NLA)• Throttle Arm Assembly (NLA)
-
1867228-92E00-000 • Washer (NLA)• Washer (NLA)
-
1967286-92E00-000 • Bolt (6x18) (NLA)• Bolt (6x18) (NLA)
-
2067230-92E00-000 • Shift Arm Assembly (NLA)• Shift Arm Assembly (NLA)
-
2109125-05042-000 • Screw (5x10)• Screw (5x10)
-
2267234-92E00-000 • Gear Case (NLA)• Gear Case (NLA)
-
2367245-92E00-000 • Free Throttle Drum (NLA)• Free Throttle Drum (NLA)
-
2467227-92E00-000 • Stopper (NLA)• Stopper (NLA)
-
2509126-06006-000 • Screw (6x20)• Screw (6x20)
-
2667225-92E00-000 • Spring (NLA)• Spring (NLA)
-
2709125-04004-000 • Screw (4x6)• Screw (4x6)
-
2867233-92E00-000 • Spring (NLA)• Spring (NLA)
-
2967235-92E00-000 • Shift Lock Plate (NLA)• Shift Lock Plate (NLA)
-
3067232-95620-000 • Bushing• Bushing
-
3167269-92E00-000 • Bracket (NLA)• Bracket (NLA)
-
3267296-88D10-000 • Screw (5x16)• Screw (5x16)
-
3309140-06020-000 • Nut (6mm)• Nut (6mm)
-
3467236-92E00-000 • Roller (NLA)• Roller (NLA)
-
3567237-92E01-000 • Spring (NLA)• Spring (NLA)
-
3667238-92E00-000 • Drive Gear (NLA)• Drive Gear (NLA)
-
3767239-92E00-000 • Pin• Pin
-
3867246-92E00-000 • Drive Shaft• Drive Shaft
-
3967252-92E00-000 • Bushing (NLA)• Bushing (NLA)
-
4067291-92E10-000 • Snap Ring (NLA)• Snap Ring (NLA)
-
4167253-92E10-000 • Washer• Washer
-
4267252-92E10-000 • Bushing (NLA)• Bushing (NLA)
-
4367253-95600-000 • Washer (NLA)• Washer (NLA)
-
4467231-92E00-000 • Shift Gear• Shift Gear
-
4567232-95600-000 • Bushing• Bushing
-
4667241-92E00-000 • Free Accel Rod (NLA)• Free Accel Rod (NLA)
-
4767243-92E00-000 • Grommet (NLA)• Grommet (NLA)
-
4867239-92E10-000 • Shift Pin Plate• Shift Pin Plate
