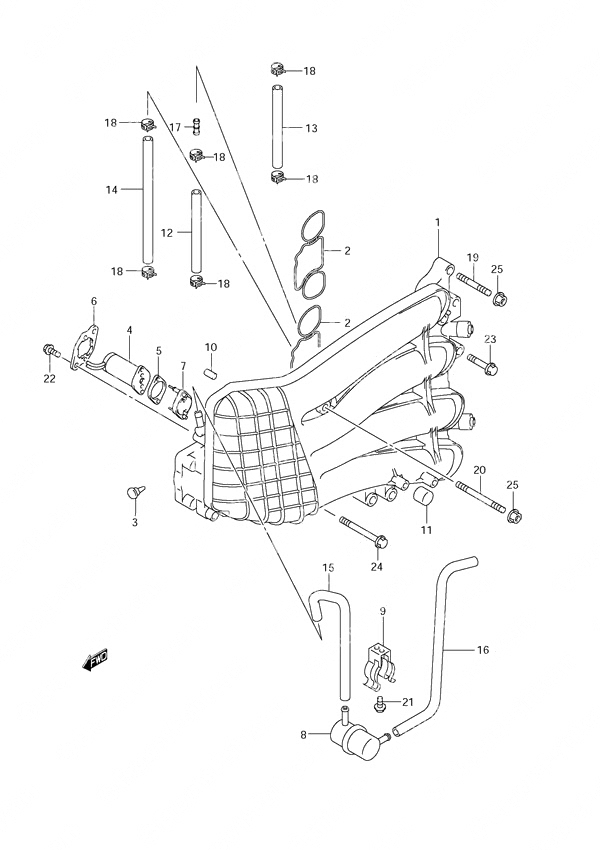

Fig. 11 - Inlet Manifold для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
113110-99E10-000 Inlet ManifoldInlet Manifold
-
213119-99E10-000 Intake Manifold GasketIntake Manifold Gasket
-
313350-99E00-000 Bypass Air Screw SetBypass Air Screw Set
-
413450-99E01-000 IAC SolenoidIAC Solenoid
-
513451-99E11-000 IAC Rubber SeatIAC Rubber Seat
-
613452-99E11-000 IAC FlangeIAC Flange
-
713453-99E10-000 IAC HolderIAC Holder
-
818145-84380-000 IAC Valve SilencerIAC Valve Silencer
-
918146-87J00-000 IAC Silencer ClampIAC Silencer Clamp
-
1009202-07006-000 Dowel PinDowel Pin
-
1109329-12004-000 CushionCushion
-
1209352-50006-600 Hose (5x9x600)
L:600->200
2 Way to SeparatorHose (5x9x600)
L:600->200
2 Way to Separator -
1309352-50006-600 Hose (5x9x600)
L:600->200
Holder to 2 WayHose (5x9x600)
L:600->200
Holder to 2 Way -
1409352-50006-600 Hose (5x9x600)
L:600->470
Separator to Oil PanHose (5x9x600)
L:600->470
Separator to Oil Pan -
1509352-70121-600 Hose (7x12.1x600)
L:600->440
Silencer to ValveHose (7x12.1x600)
L:600->440
Silencer to Valve -
1609352-70121-00B Hose (7x12.1x2000)
L:2000->620
IAC to SIlencerHose (7x12.1x2000)
L:2000->620
IAC to SIlencer -
1709364-06005-000 2 Way Union2 Way Union
-
1809401-08413-000 ClipClip
-
1901421-08357-000 Stud BoltStud Bolt
-
2001421-08457-000 Stud BoltStud Bolt
-
2101550-06127-000 Bolt (6x12)Bolt (6x12)
-
2201550-06167-000 Bolt (6x16)Bolt (6x16)
-
2301550-08407-000 Bolt (8x40)Bolt (8x40)
-
2401550-08757-000 BoltBolt
-
2508316-10087-000 NutNut
