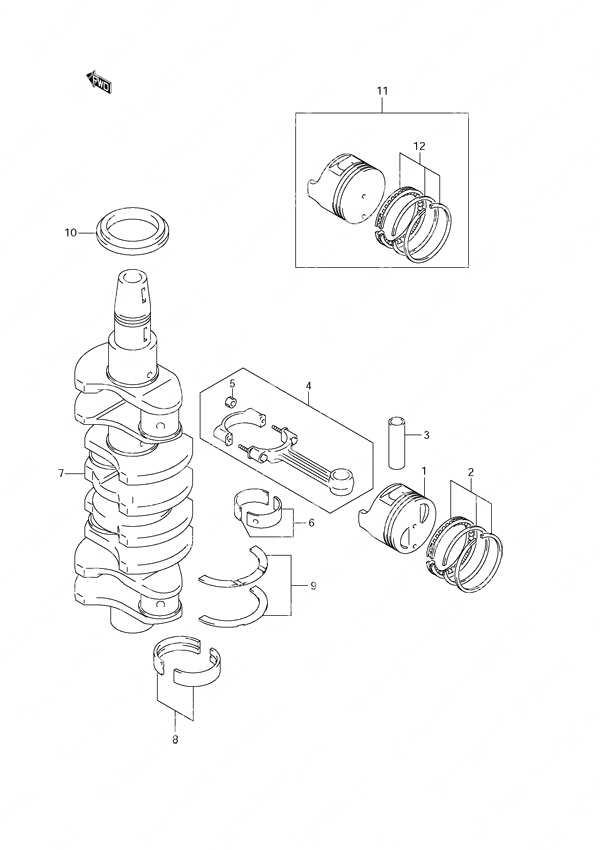

Fig. 4 - Crankshaft для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
112111-99E01-000 PistonPiston
-
212140-82X50-000 Piston Ring SetPiston Ring Set
-
312151-82000-000 Piston PinPiston Pin
-
412160-86020-000 Connecting Rod AssemblyConnecting Rod Assembly
-
509159-08033-000 • Nut• Nut
-
612100-82810-000 Big End Bearing SetBig End Bearing Set
-
712220-99E01-000 Crankshaft Assembly (NLA)Crankshaft Assembly (NLA)
-
8-112340-57K02-0C0 Crankshaft Bearing Set (Green)Crankshaft Bearing Set (Green)
-
8-212340-57K02-0D0 Crankshaft Bearing Set (Black)Crankshaft Bearing Set (Black)
-
8-312340-57K02-0E0 Crankshaft Bearing Set (Non)Crankshaft Bearing Set (Non)
-
8-412340-58B00-0D0 Crankshaft Bearing Set (Yellow)Crankshaft Bearing Set (Yellow)
-
8-512340-58B00-0E0 Crankshaft Bearing Set (Blue)Crankshaft Bearing Set (Blue)
-
912300-78890-000 Crankshaft Thrust BearingCrankshaft Thrust Bearing
-
1009283-52004-000 Oil Seal (52x70x10)Oil Seal (52x70x10)
-
1112100-99E01-050 Piston & Ring Set (OS:0.50)
OptionalPiston & Ring Set (OS:0.50)
Optional -
1212140-82X50-050 • Piston Ring Set (OS:0.50)
Optional• Piston Ring Set (OS:0.50)
Optional
