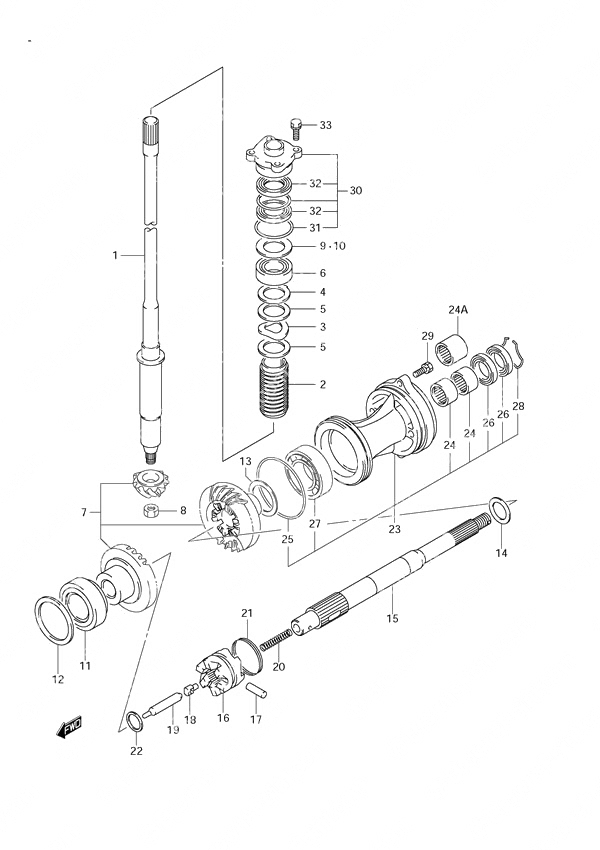

Fig. 46 - Transmission для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
157110-99E50-000 Drive Shaft (L)Drive Shaft (L)
-
257133-90J02-000 Drive Shaft CollarDrive Shaft Collar
-
609265-25046-000 Bearing (25x52x19.25)Bearing (25x52x19.25)
-
757300-99824-000 Pinion & Gear SetPinion & Gear Set
-
809140-14024-000 NutNut
-
957500-87873-000 Drive Shaft Shim SetDrive Shaft Shim Set
-
10-109181-40186-000 • Shim (0.50)• Shim (0.50)
-
10-209181-41002-000 • Shim (0.55)• Shim (0.55)
-
10-309181-41003-000 • Shim (0.60)• Shim (0.60)
-
10-409181-41004-000 • Shim (0.65)• Shim (0.65)
-
10-509181-41005-000 • Shim (0.70)• Shim (0.70)
-
10-609181-41006-000 • Shim (0.75)• Shim (0.75)
-
10-709181-40190-000 • Shim (0.80)• Shim (0.80)
-
10-809181-41008-000 • Shim (0.85)• Shim (0.85)
-
10-909181-41009-000 • Shim (0.90)• Shim (0.90)
-
10-1009181-41010-000 • Shim (0.95)• Shim (0.95)
-
10-1109181-40195-000 • Shim (1.00)• Shim (1.00)
-
10-1209181-41012-000 • Shim (1.05)• Shim (1.05)
-
10-1309181-41013-000 • Shim (1.10)• Shim (1.10)
-
10-1409181-41014-000 • Shim (1.15)• Shim (1.15)
-
1109265-50003-000 Bearing (50x85x26)Bearing (50x85x26)
-
12-109181-50020-000 Shim (0.45)Shim (0.45)
-
12-209181-50021-000 Shim (0.50)Shim (0.50)
-
12-309181-50022-000 Shim (0.55)Shim (0.55)
-
12-409181-50023-000 Shim (0.60)Shim (0.60)
-
12-509181-50024-000 Shim (0.65)Shim (0.65)
-
12-609181-50025-000 Shim (0.70)Shim (0.70)
-
12-709181-50026-000 Shim (0.75)Shim (0.75)
-
12-809181-50027-000 Shim (0.80)Shim (0.80)
-
12-909181-50028-000 Shim (0.85)Shim (0.85)
-
12-1009181-50029-000 Shim (0.90)Shim (0.90)
-
13-109181-45003-000 Shim (1.00)Shim (1.00)
-
13-209181-45004-000 Shim (1.10)Shim (1.10)
-
13-309181-45005-000 Shim (1.20)Shim (1.20)
-
13-409181-45006-000 Shim (1.30)Shim (1.30)
-
13-509181-45007-000 Shim (1.40)Shim (1.40)
-
13-609181-45008-000 Shim (1.50)Shim (1.50)
-
13-709181-45009-000 Shim (1.60)Shim (1.60)
-
14-109181-28015-000 Shim (0.90)Shim (0.90)
-
14-209181-28016-000 Shim (1.00)Shim (1.00)
-
14-309181-28017-000 Shim (1.20)Shim (1.20)
-
14-409181-28018-000 Shim (1.30)Shim (1.30)
-
14-509181-28019-000 Shim (1.40)Shim (1.40)
-
14-609181-28020-000 Shim (1.60)Shim (1.60)
-
1557610-94520-000 Propeller Shaft AssemblyPropeller Shaft Assembly
-
1657621-94520-000 Clutch Dog ShifterClutch Dog Shifter
-
1709202-07002-000 Pin (7x48)Pin (7x48)
-
1809209-12007-000 Push PinPush Pin
-
1957631-99E01-000 Push RodPush Rod
-
2009440-11020-000 SpringSpring
-
2109440-49004-000 Clutch Dog SpringClutch Dog Spring
-
2209181-25030-000 Shim (3.00)Shim (3.00)
-
2356120-94513-0EP Propeller Shaft Bearing HousingPropeller Shaft Bearing Housing
-
24A09263-28047-000 • Bearing (28x37x30)• Bearing (28x37x30)
-
2509280-97001-000 • O-Ring• O-Ring
-
2609282-28002-000 • Oil Seal• Oil Seal
-
2708113-60097-000 • Bearing (45x75x16)• Bearing (45x75x16)
-
2809387-52001-000 • Set Ring (SUS)• Set Ring (SUS)
-
2909117-08047-000 Bolt (8x30)Bolt (8x30)
-
3056130-87E00-000 Drive Shaft HousingDrive Shaft Housing
-
3109280-46004-000 • O-Ring• O-Ring
-
3209282-22007-000 • Oil Seal (22x36x6)• Oil Seal (22x36x6)
-
3309117-08110-000 Bolt (8x25)Bolt (8x25)
