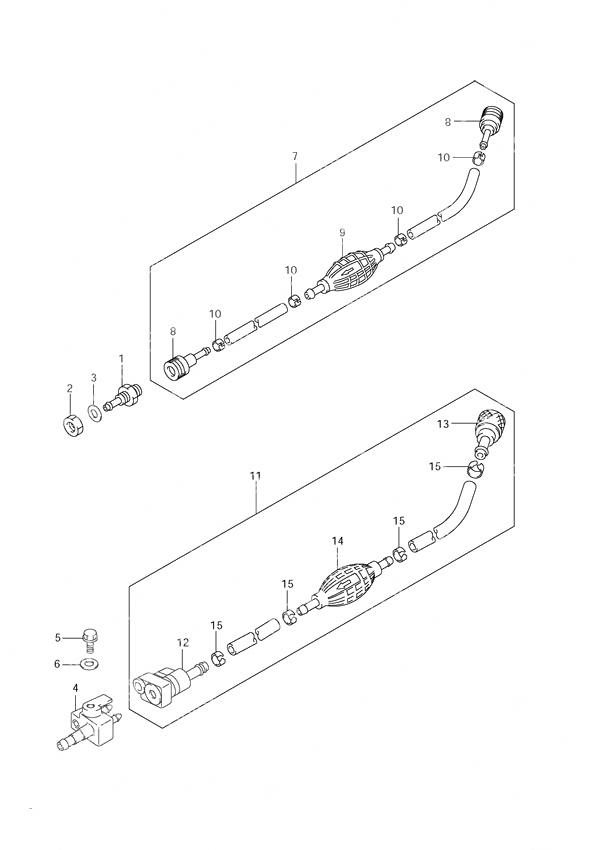

Fig. 50 - Fuel Hose для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
465720-986L0-000 Fuel ConnectorFuel Connector
-
509103-06237-000 Bolt (6x12.5)Bolt (6x12.5)
-
609160-06085-000 Washer (6.5x15x1.0)Washer (6.5x15x1.0)
-
1165700-87J28-000 Fuel HoseFuel Hose
-
1265750-87J11-000 • Fuel Hose Connector• Fuel Hose Connector
-
1365750-95501-000 • Fuel Hose Connector (13mm)• Fuel Hose Connector (13mm)
-
1465770-95504-000 • Squeeze Pump (NLA)• Squeeze Pump (NLA)
-
1565781-98500-000 • Hose Clip• Hose Clip
