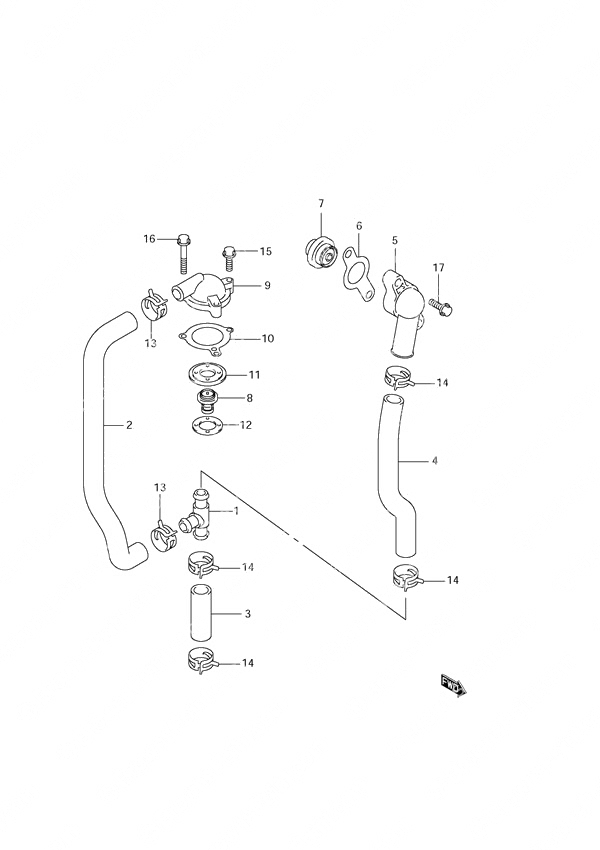

Fig. 21 - Thermostat для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
111195-99E00-000 3 Way3 Way
-
211196-99E00-000 Water Return HoseWater Return Hose
-
311197-99E00-000 Water Return HoseWater Return Hose
-
411198-99E00-000 Water Return HoseWater Return Hose
-
517611-99E00-000 Water Pressure CoverWater Pressure Cover
-
617616-99E01-000 Pressure Valve GasketPressure Valve Gasket
-
717660-99E01-000 Water Pressure ValveWater Pressure Valve
-
8-117670-94404-000 Thermostat (60c)
StandardThermostat (60c)
Standard -
8-217670-87J01-000 Thermostat (72c)
OptionalThermostat (72c)
Optional -
917681-99E01-000 Thermostat CoverThermostat Cover
-
1017685-99E00-000 Thermostat GasketThermostat Gasket
-
1117686-99E01-000 Thermostat Stopper
UpperThermostat Stopper
Upper -
1217687-99E01-000 Thermostat Stopper
LowerThermostat Stopper
Lower -
1309401-25406-000 ClipClip
-
1409401-26408-000 ClipClip
-
1501550-06257-000 BoltBolt
-
1601550-06457-000 BoltBolt
-
1701550-08307-000 BoltBolt
