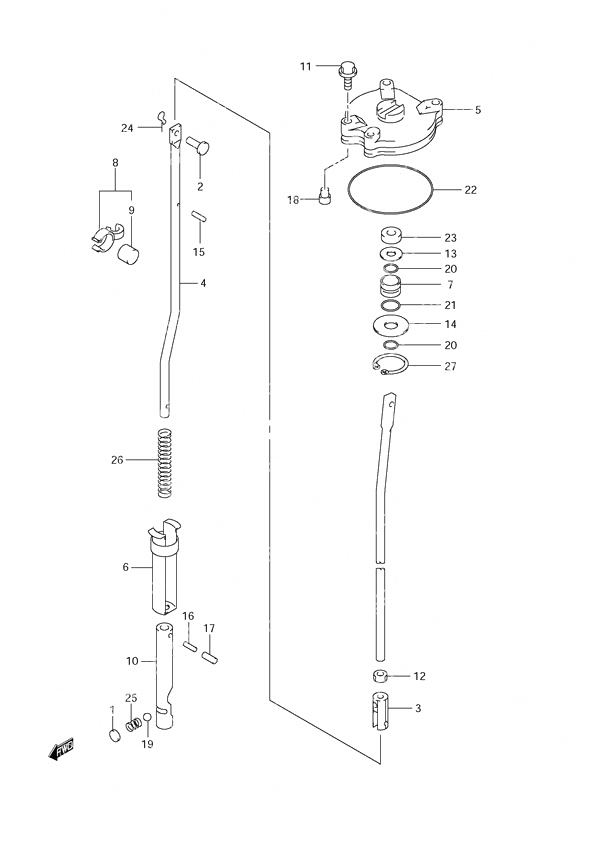

Fig. 26 - Shift Rod для Suzuki DF 60 - 2006 года выпуска
-
№АртикулНазвание
-
121121-93300-000 Clutch Notch PlateClutch Notch Plate
-
223313-99E01-000 Clutch Rod Connector PinClutch Rod Connector Pin
-
323315-94510-000 Clutch Rod Connector (X)Clutch Rod Connector (X)
-
425111-99E20-000 Shift Rod (L) (NLA)Shift Rod (L) (NLA)
-
525141-99E03-000 Shift Rod Guide HousingShift Rod Guide Housing
-
625205-94501-000 Shift Rod Spring CollarShift Rod Spring Collar
-
725211-94501-000 Shift Rod GuideShift Rod Guide
-
825230-94300-000 Gear Case Magnet SetGear Case Magnet Set
-
925232-94300-000 • Gear Case Magnet• Gear Case Magnet
-
1025311-94510-000 Clutch CamClutch Cam
-
1109117-06031-000 Bolt (6x20)Bolt (6x20)
-
1209140-08023-XC0 Nut (8mm)Nut (8mm)
-
1309160-09015-000 Washer (9x19x1.0)Washer (9x19x1.0)
-
1409160-09010-000 Washer (9x30x1.6)Washer (9x30x1.6)
-
1509205-02004-000 Spring Pin (2.5x12)Spring Pin (2.5x12)
-
1609205-02006-000 Spring Pin (2x12)Spring Pin (2x12)
-
1709205-03021-000 Spring Pin (3.5x12)Spring Pin (3.5x12)
-
1909260-10005-000 BallBall
-
2009280-08008-000 O-RingO-Ring
-
2109280-15003-000 O-RingO-Ring
-
2209280-69001-000 O-RingO-Ring
-
2309284-08003-000 Dust SealDust Seal
-
2409204-01002-000 Cotter PinCotter Pin
-
2509440-07033-000 Cam Notch SpringCam Notch Spring
-
2609440-12025-000 SpringSpring
-
2708331-41309-000 CirclipCirclip
