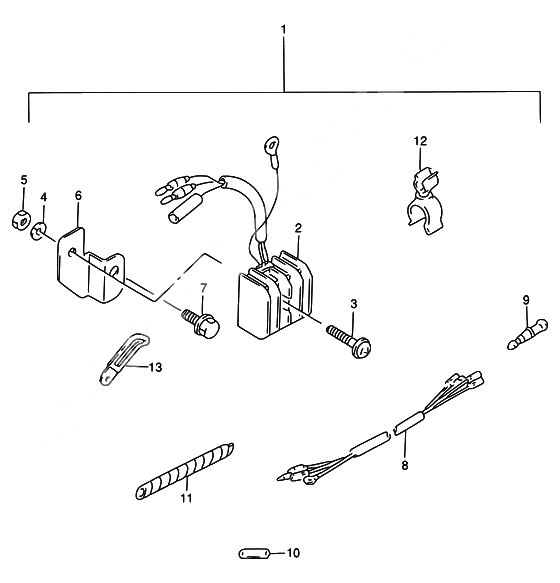

Opt:electrical для Suzuki DT60WML Y / DT60WQL Y / DT60WTL Y - 2000 года выпуска
-
№АртикулНазвание
-
132801-94710-000 Выпрямитель
MANUAL STARTERВыпрямитель
MANUAL STARTER -
232800-95D01-000 Rectifier assyRectifier assy
-
302142-05257-000 Винт 5 X 20Винт 5 X 20
-
408321-01057-000 Пластина замкаПластина замка
-
408321-0105A-000 Пластина замкаПластина замка
-
508310-00057-000 ГайкаГайка
-
632815-92D00-000 Кронштейн выпрямителя
Bracket, rectifierКронштейн выпрямителя
Bracket, rectifier -
702162-06127-000 BoltBolt
-
836810-94601-000 Провод
Lead assy, rectifierПровод
Lead assy, rectifier -
936615-96300-000 КонтактКонтакт
-
1037132-93700-000 Соединение свинцовое
Connector, lead wireСоединение свинцовое
Connector, lead wire -
1138423-95510-000 Tube,150
L:150->00Tube,150
L:150->00 -
1133833-91J00-000 Tube,150Tube,150
-
1209408-00045-000 Clamp
Holder, fuse caseClamp
Holder, fuse case -
1309404-08205-000 Clamp (l:62)
Clamp (l:62)Clamp (l:62)
Clamp (l:62)
