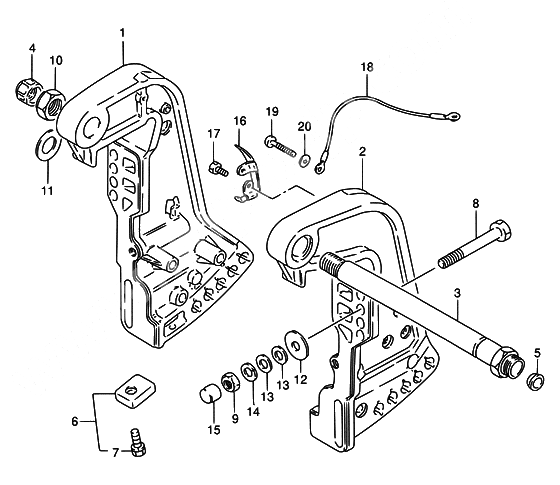

Clamp bracket для Suzuki DT60WML Y / DT60WQL Y / DT60WTL Y - 2000 года выпуска
-
№АртикулНазвание
-
141111-95602-0ED Кронштейн S
Bracket, clamp stbdКронштейн S
Bracket, clamp stbd -
241121-94582-0ED Кронштейн
MODEL:00Кронштейн
MODEL:00 -
241121-95610-0ED Кронштейн P
Bracket, clamp portКронштейн P
Bracket, clamp port -
341130-95540-000 Вал кронштейна
Shaft, clamp brktВал кронштейна
Shaft, clamp brkt -
341130-95541-000 Вал кронштейнаВал кронштейна
-
441151-94500-000 Крышка кронштейнаКрышка кронштейна
-
541152-94500-000 Заглушка кронштейна
Plug, clamp bracket shaftЗаглушка кронштейна
Plug, clamp bracket shaft -
655320-95310-000 Комплект цинковый
Zinc, protectionКомплект цинковый
Zinc, protection -
655320-95311-000 Комплект цинковыйКомплект цинковый
-
709116-06094-000 Болт 6X15Болт 6X15
-
809100-12039-000 Bolt
Bolt (12x100)Bolt
Bolt (12x100) -
809159-12014-000 BoltBolt
-
809100-12093-000 BoltBolt
-
909140-12028-000 ГайкаГайка
-
1009159-22003-000 ГайкаГайка
-
1009159-22006-000 ГайкаГайка
-
1109160-22046-000 Шайба 22.5X44X
Washer (22.5x44x1)Шайба 22.5X44X
Washer (22.5x44x1) -
1209160-12044-000 Шайба
Washer (12.5x35x3.2)Шайба
Washer (12.5x35x3.2) -
1309160-12066-000 Шайба
Washer (12.5x22x2.5)Шайба
Washer (12.5x22x2.5) -
1409162-12005-000 Шайба
Lock washer (12.2x21.5x3)Шайба
Lock washer (12.2x21.5x3) -
1541153-94500-000 КрышкаКрышка
-
1641241-95503-000 Направляющая рукояткиНаправляющая рукоятки
-
1709100-05011-000 BoltBolt
-
1836894-95201-000 ПроводПровод
-
1909125-05050-000 Винт 5X8Винт 5X8
-
2009161-05114-000 Шайба
Washer (5.2x11.0x1.0)Шайба
Washer (5.2x11.0x1.0)
