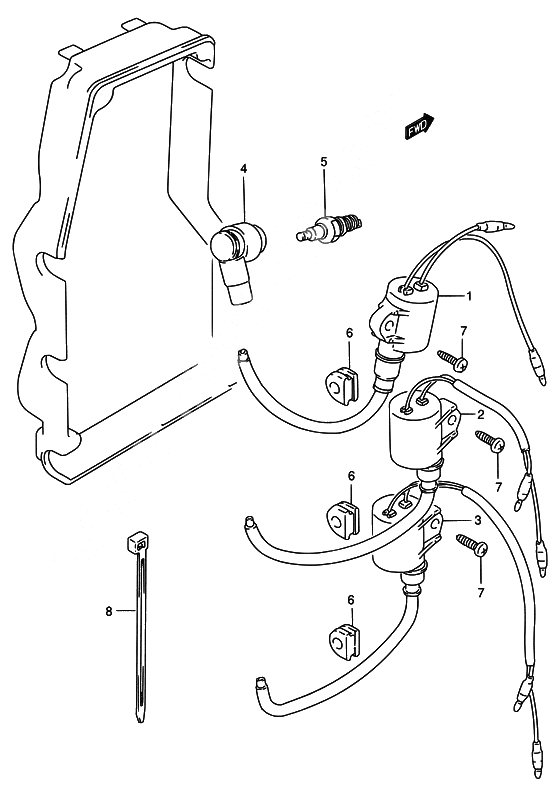

Magneto для Suzuki DT60WML Y / DT60WQL Y / DT60WTL Y - 2000 года выпуска
-
№АртикулНазвание
-
133410-95D10-000 Катушка зажигания
Coil assy, ignition no.1Катушка зажигания
Coil assy, ignition no.1 -
233410-95D10-000 Катушка зажигания
Coil assy, ignition no.1Катушка зажигания
Coil assy, ignition no.1 -
333410-95D10-000 Катушка зажигания
Coil assy, ignition no.1Катушка зажигания
Coil assy, ignition no.1 -
433510-98601-000 Свечной колпачек
OPTСвечной колпачек
OPT -
433510-95520-000 Свечной колпачек
Cap, spark plugСвечной колпачек
Cap, spark plug -
509482-00375-000 Свеча зажигания B8HS-Свеча зажигания B8HS-
-
609309-06007-000 GrommetGrommet
-
703242-05253-000 Болт
Screw, ignitionБолт
Screw, ignition -
703241-0525A-000 БолтБолт
-
809407-14407-000 Clamp (l:145)
BandClamp (l:145)
Band
