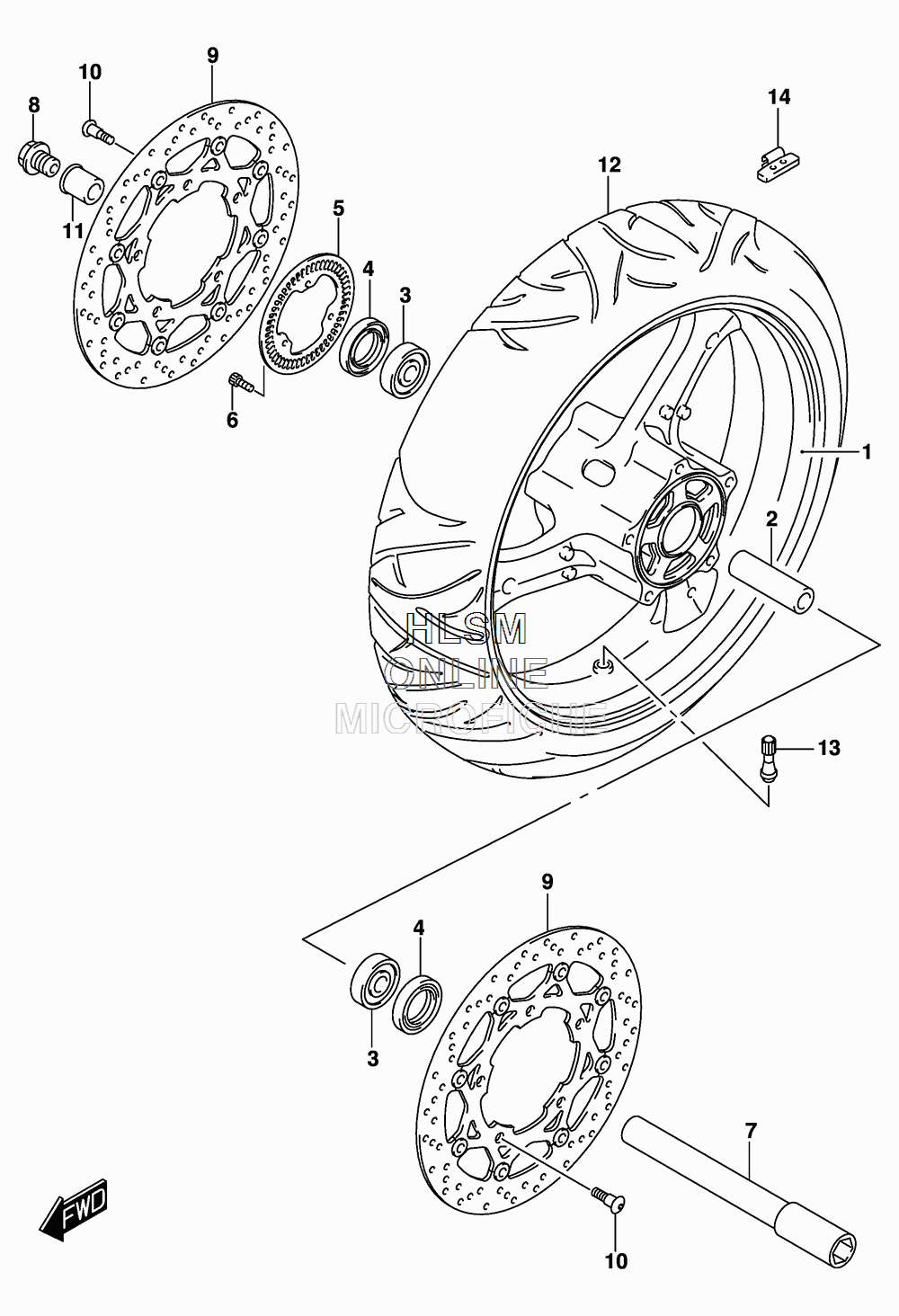

WHEEL - FRONT для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    54111-49G10-019 WHEEL, FRONT (17M/CXMT3.50) (BLACK)
    WHEEL, FRONT (17M/CXMT3.50) (BLACK)
  • 2
    54731-49G00 SPACER
    SPACER
  • 3
    09262-25061 BEARING (25X52X15)
    BEARING (25X52X15)
  • 4
    09285-32004 OIL SEAL (32X52X7)
    OIL SEAL (32X52X7)
  • 5
    54162-27G00 RING, SPEED SENSOR FRONT
    RING, SPEED SENSOR FRONT
  • 6
    07130-0512A BOLT
    BOLT
  • 7
    54711-49G00 AXLE, FRONT
    AXLE, FRONT
  • 8
    54712-41G10 BOLT, FRONT AXLE
    BOLT, FRONT AXLE
  • 9
    59210-44G11 DISC, FRONT BRAKE
    DISC, FRONT BRAKE
  • 10
    09106-08160 BOLT (8X21)
    BOLT (8X21)
  • 11
    54751-49G00 SPACER, FRONT AXLE RH
    SPACER, FRONT AXLE RH
  • 12
    55110-18H00 TIRE, FRONT (120/70ZR17M/C58W BT021F) (BRIDGESTONE)
    TIRE, FRONT (120/70ZR17M/C58W BT021F) (BRIDGESTONE)
  • 13
    43130-24A00 VALVE ASSY, WHEEL RIM (TR412)
    VALVE ASSY, WHEEL RIM (TR412)
  • 14
    55411-22H00 BALANCER, WHEEL NO.1 (10G)
    BALANCER, WHEEL NO.1 (10G)
  • 14
    55412-22H00 BALANCER, WHEEL NO.2 (20G)
    BALANCER, WHEEL NO.2 (20G)
  • 14
    55413-22H00 BALANCER, WHEEL NO.3 (30G)
    BALANCER, WHEEL NO.3 (30G)
