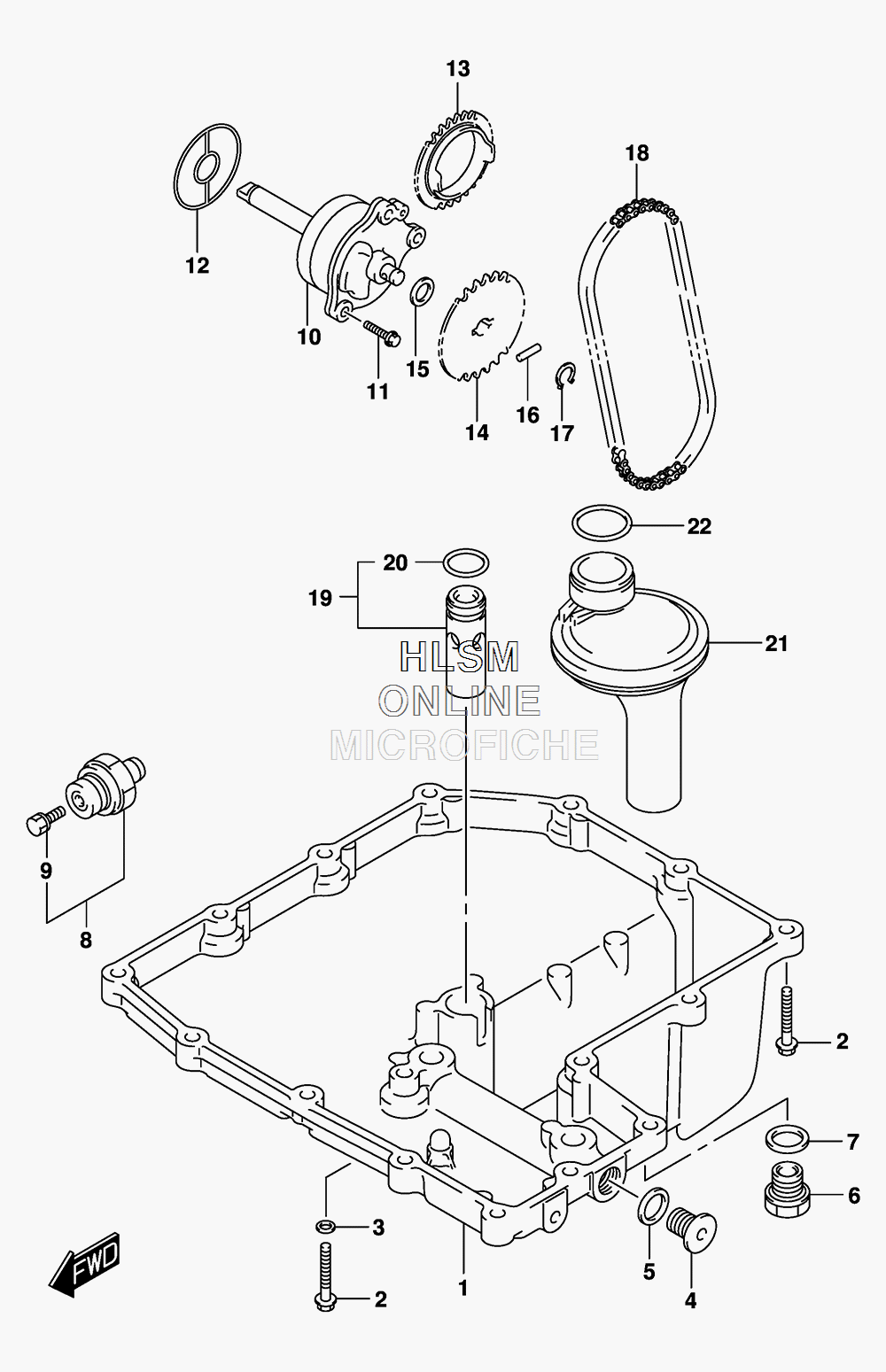

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска`
-
№АртикулНазвание
-
111511-18H10 PAN, OILPAN, OIL
-
201547-0625A BOLTBOLT
-
309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
409248-12004 PLUG (L:12)PLUG (L:12)
-
509168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
609247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
837820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
937822-33D00 ...BOLT...BOLT
-
1016400-18H00 PUMP ASSY, OILPUMP ASSY, OIL
-
1101547-0620A BOLTBOLT
-
1216491-33E00 O RINGO RING
-
1316321-01H00 SPROCKET, DRIVE (NT:27)SPROCKET, DRIVE (NT:27)
-
1416331-18H00 SPROCKET, DRIVEN (NT:31)SPROCKET, DRIVEN (NT:31)
-
1509181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1609261-04009 PIN (4X15.8)PIN (4X15.8)
-
1708331-31109 CIRCLIPCIRCLIP
-
1816310-18H00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
1916440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
2009280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
2116520-18H01 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
2209280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
