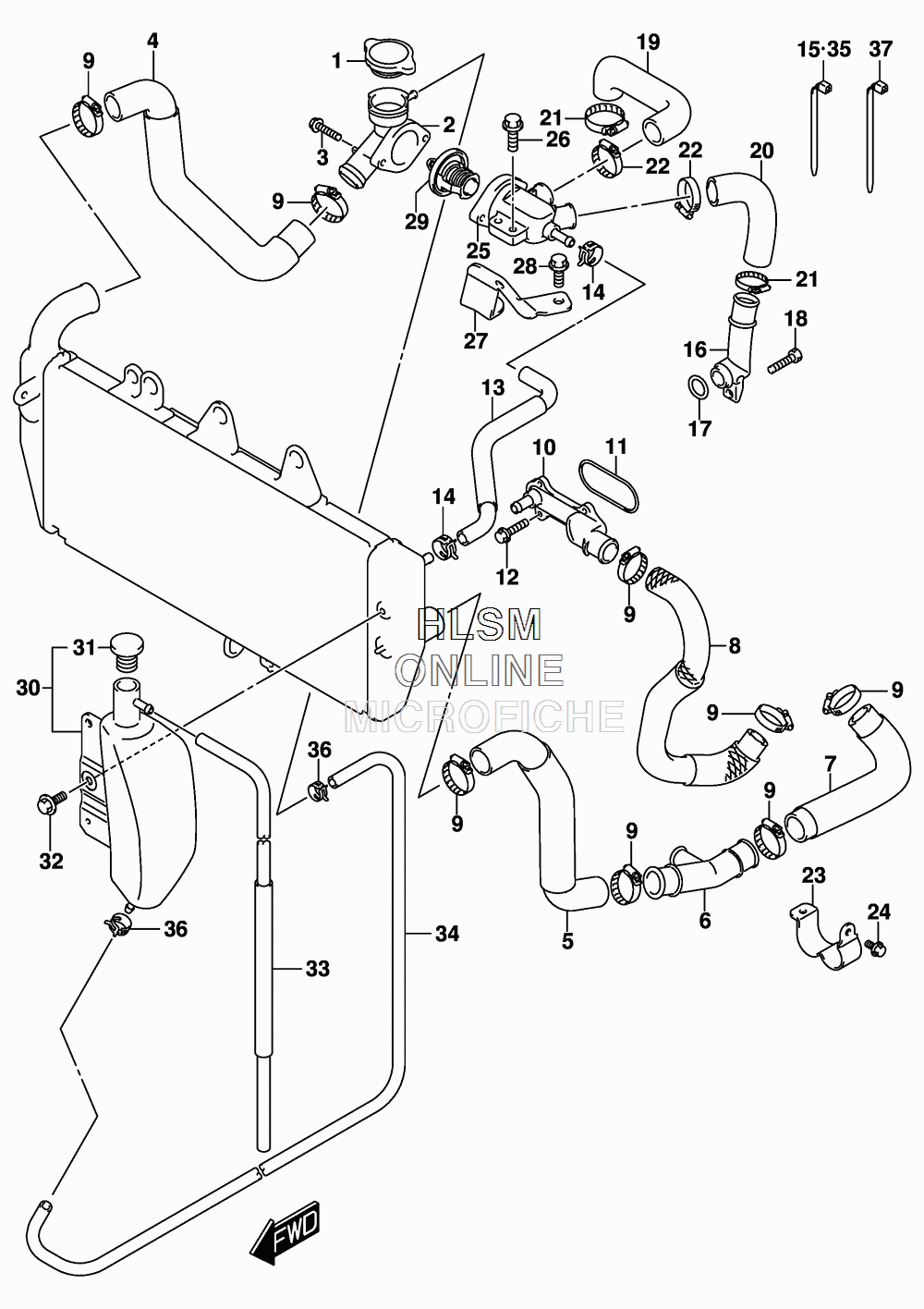

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска
-
№АртикулНазвание
-
117730-14G00 CAP, RADIATOR (1.1)CAP, RADIATOR (1.1)
-
217791-18H00 CONDUCTIONCONDUCTION
-
301550-0620A BOLTBOLT
-
417851-18H10 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
517852-18H10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
617890-18H00 PIPE, RADIATOR OUTLETPIPE, RADIATOR OUTLET
-
717853-18H00 HOSE, WATER PUMP INLETHOSE, WATER PUMP INLET
-
817854-18H00 HOSE, WATER PUMP OUTLETHOSE, WATER PUMP OUTLET
-
909402-35501 CLAMPCLAMP
-
1017861-18H00 CONNECTOR, CYLINDER INLETCONNECTOR, CYLINDER INLET
-
1117863-18H00 O RING, CYL INLET CONNECTORO RING, CYL INLET CONNECTOR
-
1201547-0620A BOLTBOLT
-
1317856-18H10 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1409401-12414 CLAMPCLAMP
-
1509407-18402 CLAMP (L:165)CLAMP (L:165)
-
1617880-18H00 PIPE, CYLINDER OUTLETPIPE, CYLINDER OUTLET
-
1709280-18008 O RING (D:3.2,ID:17.8)O RING (D:3.2,ID:17.8)
-
1807130-0612A BOLTBOLT
-
1917857-18H00 HOSE, CYLINDER OUTLET RHHOSE, CYLINDER OUTLET RH
-
2017858-18H00 HOSE, CYLINDER OUTLET LHHOSE, CYLINDER OUTLET LH
-
2109402-28513 CLAMPCLAMP
-
2209402-32512 CLAMPCLAMP
-
2317859-18H00 PLATE, WATER HOSE CLAMPPLATE, WATER HOSE CLAMP
-
2401547-0612A BOLTBOLT
-
2517662-18H00 CONNECTOR, THERMOSTAT INLETCONNECTOR, THERMOSTAT INLET
-
2601550-0620A BOLTBOLT
-
2717669-18H00 BRACKET, THERMOSTAT CONNECTORBRACKET, THERMOSTAT CONNECTOR
-
2801550-0612A BOLTBOLT
-
2917670-76G00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
3017910-18H10 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
3117931-02FA0 ...CAP...CAP
-
3209111-06085 BOLT (6X12)BOLT (6X12)
-
3317982-18H10 HOSE, OVERFLOWHOSE, OVERFLOW
-
3417981-18H00 HOSE, TANK INLETHOSE, TANK INLET
-
3509407-18402 CLAMP (L:165)CLAMP (L:165)
-
3609401-08411 CLIPCLIP
-
3709407-25401 CLAMP (L:235)CLAMP (L:235)
