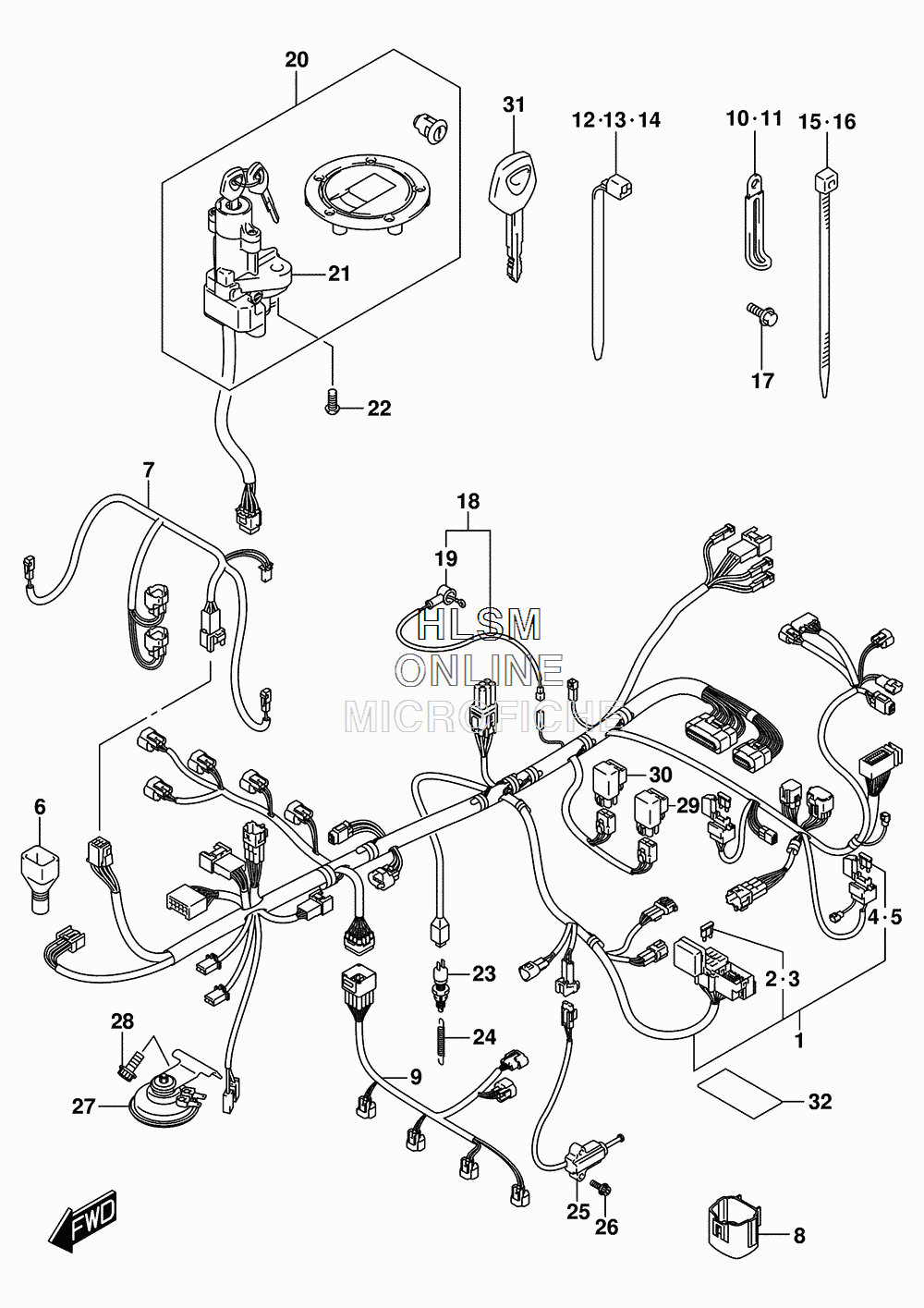

ELECTRICAL - WIRING HARNESS (CAN) для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска
-
№АртикулНазвание
-
136610-18HC0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
409481-15101 ...FUSE (15A)...FUSE (15A)
-
509481-20101 ...FUSE (20A)...FUSE (20A)
-
636618-35F00 ...COVER...COVER
-
736620-17HA0 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
836654-06J00 CAP, TSCAP, TS
-
936859-17HA0 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
1009404-06429 CLAMP (L:45)CLAMP (L:45)
-
1109404-06433 CLAMP (L:80)CLAMP (L:80)
-
1209407-11401 CLAMP (L:95)CLAMP (L:95)
-
1309407-14403 CLAMP (L:125)CLAMP (L:125)
-
1409407-18402 CLAMP (L:165)CLAMP (L:165)
-
1509407-14407 CLAMP (L:145)CLAMP (L:145)
-
1609407-10404 CLAMP (L:100)CLAMP (L:100)
-
1701550-0612A BOLTBOLT
-
1836851-18H01 WIRE, OIL PRESSURE SWITCHWIRE, OIL PRESSURE SWITCH
-
1936618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
2037000-18860 LOCK SETLOCK SET
-
2137100-18H20 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2209139-08016 BOLT (8X20)BOLT (8X20)
-
2337740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2409443-06054 SPRINGSPRING
-
2537840-25D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2607120-0620B BOLTBOLT
-
2738500-17H10 HORN ASSYHORN ASSY
-
2807120-0512B BOLTBOLT
-
2938740-24X50 RELAY ASSY (FOR FUEL PUMP)RELAY ASSY (FOR FUEL PUMP)
-
3038740-24X50 RELAY ASSY (FOR FAN MOTOR)RELAY ASSY (FOR FAN MOTOR)
-
3137146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
-
3263131-10F00 PROTECTOR (30X75X0.2)PROTECTOR (30X75X0.2)
