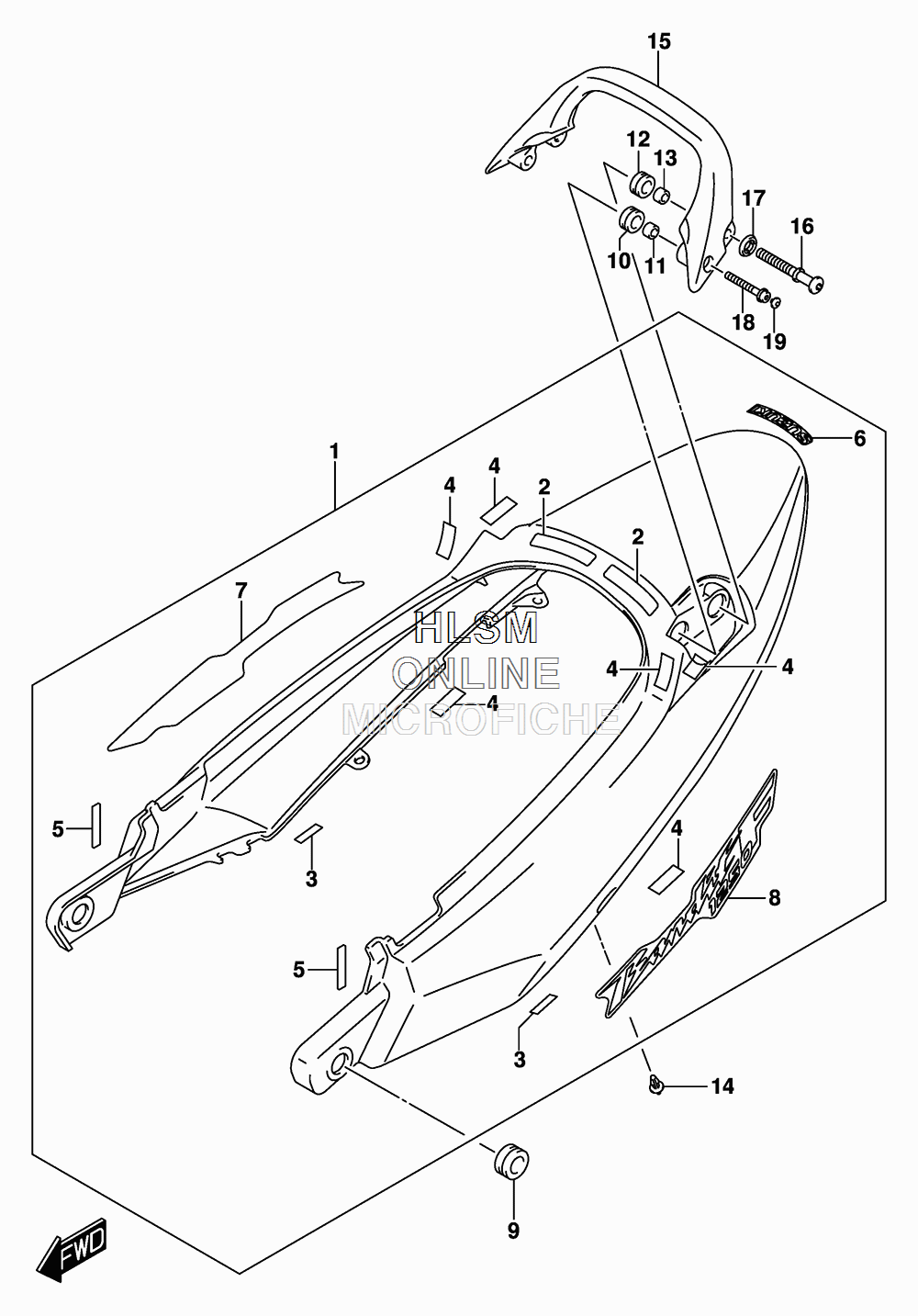

SEAT TAIL COVER для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска

№

Артикул

Название
1

45500-18H30-ACX COVER ASSY, SEAT TAIL (BLACK) (FOR YVB)

COVER ASSY, SEAT TAIL (BLACK) (FOR YVB)
1

45500-18H30-AHX COVER ASSY, SEAT TAIL (WHITE) (FOR YWW)

COVER ASSY, SEAT TAIL (WHITE) (FOR YWW)
1

45500-18H30-YYG COVER ASSY, SEAT TAIL (RED) (FOR YYG)

COVER ASSY, SEAT TAIL (RED) (FOR YYG)
2

45516-42F00 ...TAPE, SET TAIL COVER RR NO.1

...TAPE, SET TAIL COVER RR NO.1
3

45517-16G00 ...TAPE, SEAT TAIL COVER LOWER

...TAPE, SEAT TAIL COVER LOWER
4

47161-10D00 ...PROTECTOR, FRAME COVER

...PROTECTOR, FRAME COVER
5

48128-14FA0 ...CUSHION

...CUSHION
6

68281-01H00-YU8 ...EMBLEM, SUZUKI (GRAY)

...EMBLEM, SUZUKI (GRAY)
7

68161-18H20-HWR ...EMBLEM, SEAT TAIL COVER, RH (SILVER/GRAY)

...EMBLEM, SEAT TAIL COVER, RH (SILVER/GRAY)
8

68171-18H20-HWR ...EMBLEM, SEAT TAIL COVER, LH (SILVER/GRAY)

...EMBLEM, SEAT TAIL COVER, LH (SILVER/GRAY)
9

09320-08047 CUSHION

CUSHION
10

09320-12068 CUSHION

CUSHION
11

09180-06300 SPACER (6.5X12X9)

SPACER (6.5X12X9)
12

09320-14023 CUSHION

CUSHION
13

09180-08199 SPACER (8.5X14X9)

SPACER (8.5X14X9)
14

09409-06314-5PK CLIP (BLACK)

CLIP (BLACK)
15

46211-32F10-YVB HANDLE, PILLION RIDER (BLACK)

HANDLE, PILLION RIDER (BLACK)
15

46211-32F10-YWW HANDLE, PILLION RIDER (WHITE)

HANDLE, PILLION RIDER (WHITE)
15

46211-32F10-YYG HANDLE, PILLION RIDER (RED)

HANDLE, PILLION RIDER (RED)
16

46316-31F00 HOOK, PILLION RIDER HANDLE

HOOK, PILLION RIDER HANDLE
17

46317-31F00 WASHER, HOOK

WASHER, HOOK
18

07120-0645A BOLT

BOLT
19

09250-05009 CAP (OD:10)

CAP (OD:10)
