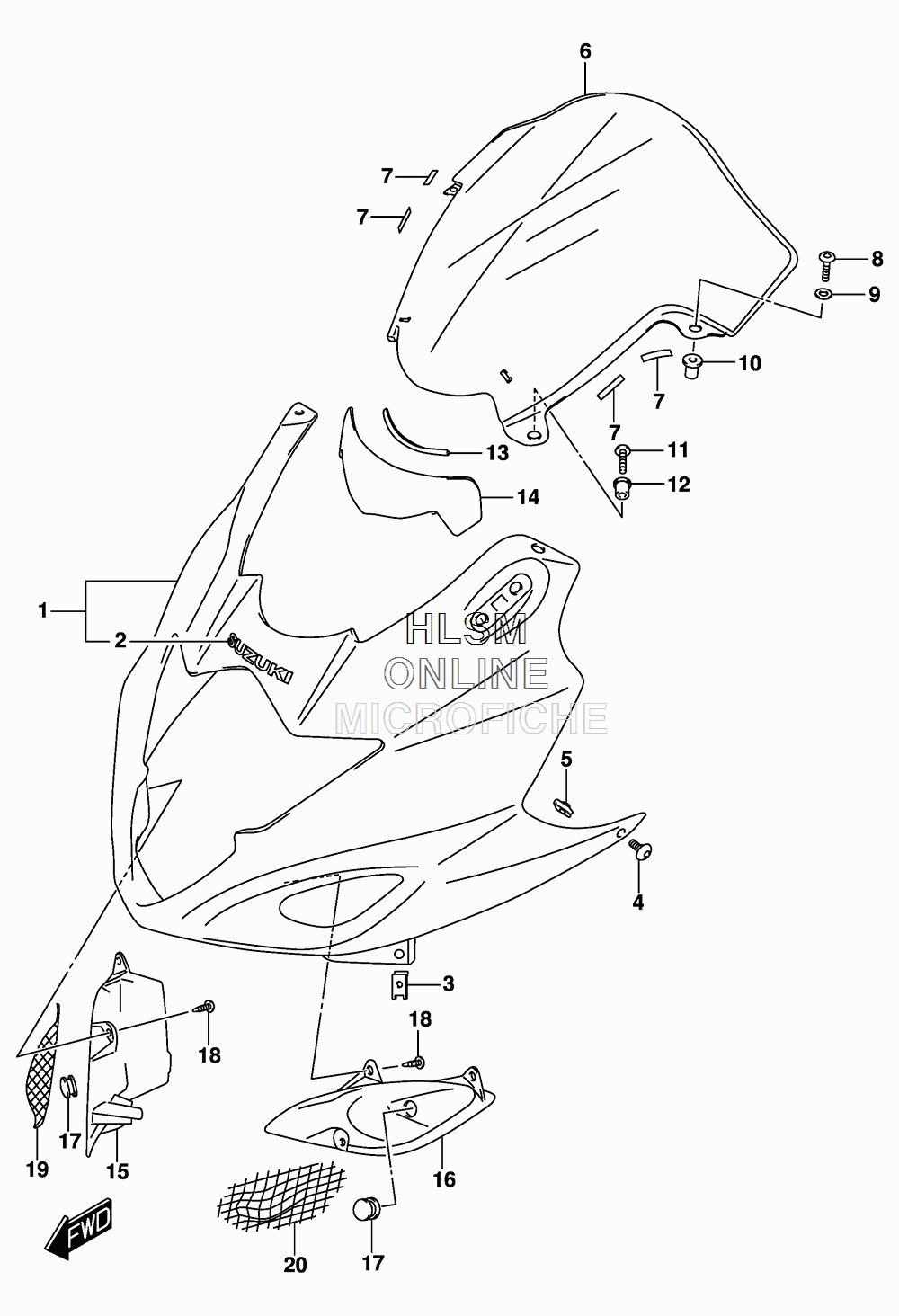

COWLING BODY для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска
-
№АртикулНазвание
-
194410-17H00-ACX BODY, COWLING (BLACK) (FOR YVB)BODY, COWLING (BLACK) (FOR YVB)
-
194410-17H00-AHX BODY, COWLING (WHITE) (FOR YWW)BODY, COWLING (WHITE) (FOR YWW)
-
194410-17H00-YYG BODY, COWLING (RED) (FOR YYG)BODY, COWLING (RED) (FOR YYG)
-
268641-19F00-YU8 ...EMBLEM, ''SUZUKI'' (GRAY)...EMBLEM, ''SUZUKI'' (GRAY)
-
394484-24F00 NUT, BODYNUT, BODY
-
409139-05077 SCREW (5X16)SCREW (5X16)
-
509148-05052 NUTNUT
-
694611-17H00 WIND SCREENWIND SCREEN
-
794443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
809139-05042 SCREW (5X16)SCREW (5X16)
-
908322-0105B WASHERWASHER
-
1009159-05019 NUTNUT
-
1102142-1516B SCREWSCREW
-
1209159-05048 NUTNUT
-
1394612-01H00 CUSHION, SCREENCUSHION, SCREEN
-
1494612-17H01 COVER, SCREENCOVER, SCREEN
-
1594421-17H00 COVER, INTAKE RHCOVER, INTAKE RH
-
1694431-17H00 COVER, INTAKE LHCOVER, INTAKE LH
-
1743585-18G00 CUSHION, NET COVERCUSHION, NET COVER
-
1803541-0512A SCREWSCREW
-
1994412-17H00 NET, INTAKE RHNET, INTAKE RH
-
2094413-17H00 NET, INTAKE LHNET, INTAKE LH
