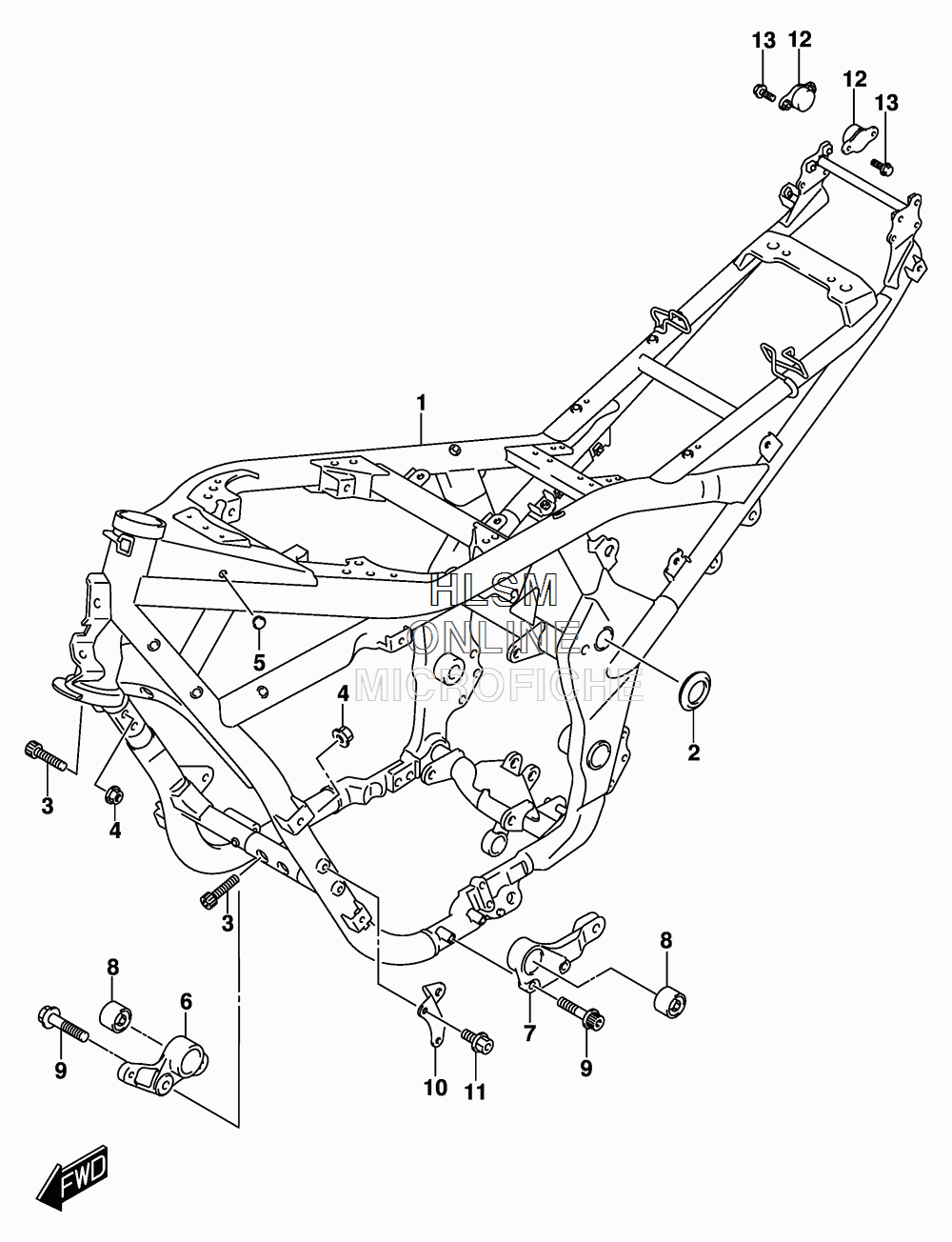

FRAME для Suzuki GSX1250FA L6 BANDIT 1250F ABS - 2016 года выпуска
-
№АртикулНазвание
-
141100-18H10-YAP FRAME (BLACK)FRAME (BLACK)
-
243585-38G01 CAP, FRAME BODYCAP, FRAME BODY
-
309106-10068 BOLT (10X37)BOLT (10X37)
-
408319-3110A NUTNUT
-
509250-12014 PLUG (OD:17)PLUG (OD:17)
-
641931-18H10 BRACKET, MOUNT NO.2 RHBRACKET, MOUNT NO.2 RH
-
741941-18H00 BRACKET, MOUNT NO.2 LHBRACKET, MOUNT NO.2 LH
-
841932-27E50 BUSHBUSH
-
909106-08065 BOLT (8X28)BOLT (8X28)
-
1041942-18H00-YAP BRACKET, FRONT (BLACK)BRACKET, FRONT (BLACK)
-
1101550-0820A BOLTBOLT
-
1242550-49G00 DAMPER, FRAME REARDAMPER, FRAME REAR
-
1301550-0612A BOLTBOLT
