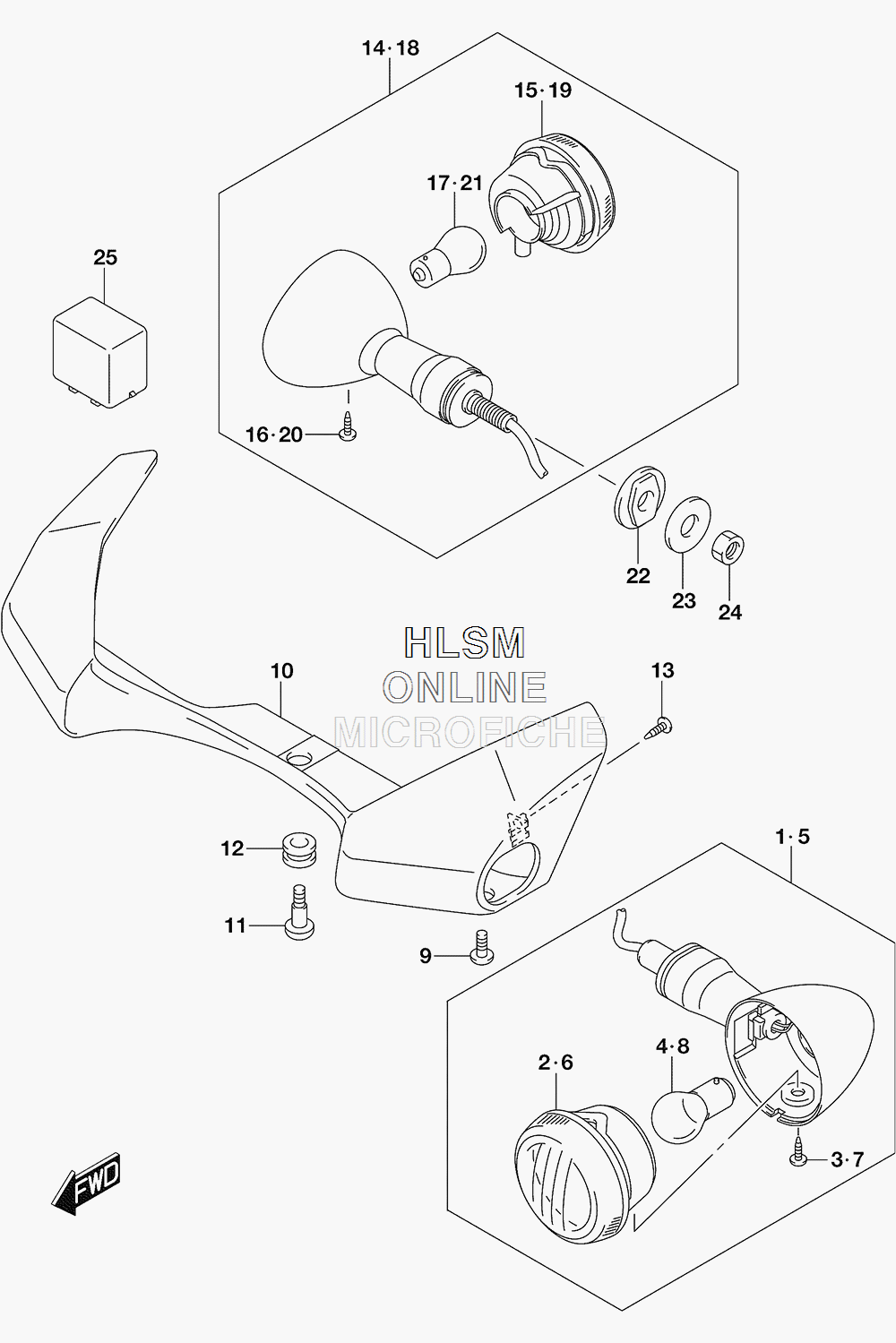

TURN SIGNAL ASSY. для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
135601-38AF0 LAMP ASSY, FRONT TURNSIGNAL RHLAMP ASSY, FRONT TURNSIGNAL RH
-
235610-38AA0 ...LENS (FOR AMBER)...LENS (FOR AMBER)
-
335623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
409471-12083 ...BULB (12V,21/5W) (FOR CLEAR)...BULB (12V,21/5W) (FOR CLEAR)
-
535602-38AF0 LAMP ASSY, FRONT TURNSIGNAL LHLAMP ASSY, FRONT TURNSIGNAL LH
-
635630-38AA0 ...LENS (FOR AMBER)...LENS (FOR AMBER)
-
735623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
809471-12083 ...BULB (12V,21W) (FOR CLEAR)...BULB (12V,21W) (FOR CLEAR)
-
902142-0612A SCREWSCREW
-
1035641-48G00 COVER, FRONT TURNSIGNALCOVER, FRONT TURNSIGNAL
-
1109139-06146 SCREW (6X16)SCREW (6X16)
-
1209320-09016 CUSHIONCUSHION
-
1303541-0512A SCREWSCREW
-
1435603-48EC0 LAMP ASSY, REAR TURNSIGNAL RHLAMP ASSY, REAR TURNSIGNAL RH
-
1535630-38AE1 ...LENS (FOR AMBER)...LENS (FOR AMBER)
-
1635623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
1709471-12045 ...BULB (12V,21W) (FOR CLEAR)...BULB (12V,21W) (FOR CLEAR)
-
1835604-38AE0 LAMP ASSY, REAR TURNSIGNAL LHLAMP ASSY, REAR TURNSIGNAL LH
-
1935610-38AE1 ...LENS (FOR AMBER)...LENS (FOR AMBER)
-
2035623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
2109471-12045 ...BULB (12V,21W) (FOR CLEAR)...BULB (12V,21W) (FOR CLEAR)
-
2235695-17C00 SPACER, REAR TURNSIGNAL LAMPSPACER, REAR TURNSIGNAL LAMP
-
2309160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2408310-0010A NUTNUT
-
2538610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
