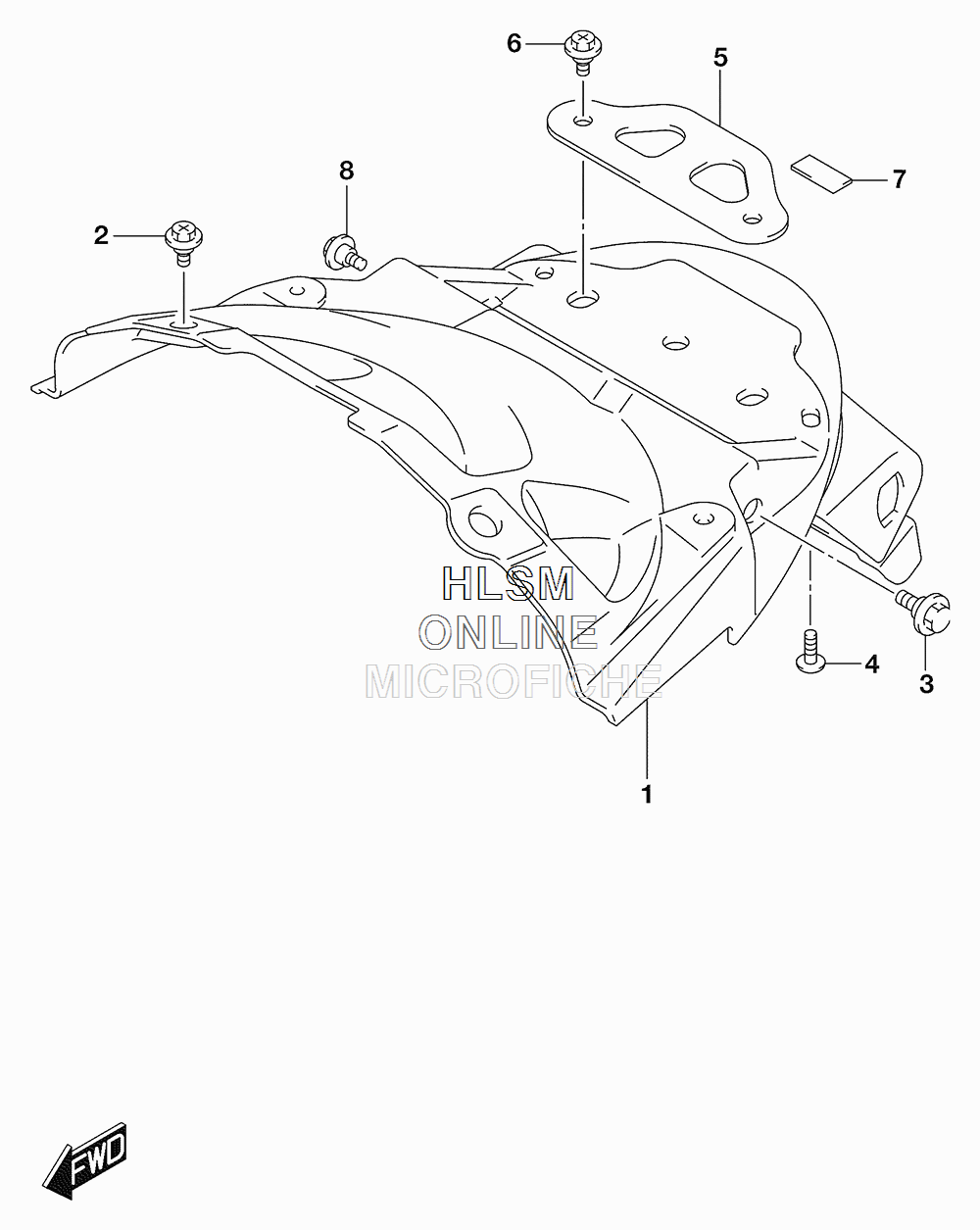

FENDER EXTENSION - REAR для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
163311-48G01 EXTENSION, REAR FENDEREXTENSION, REAR FENDER
-
263161-43E10 BOLT, REAR FENDER EXTENSIONBOLT, REAR FENDER EXTENSION
-
309111-06242 BOLT (6X16.5) (LH)BOLT (6X16.5) (LH)
-
402142-0516A BOLT (LOWER)BOLT (LOWER)
-
563121-48G00 PLATE, EXTENSIONPLATE, EXTENSION
-
609103-06307 BOLT (6X10)BOLT (6X10)
-
763113-48G00 CUSHION, REAR FENDER EXT PLATECUSHION, REAR FENDER EXT PLATE
-
863161-43E10 BOLT, REAR FENDER EXTENSION RHBOLT, REAR FENDER EXTENSION RH
