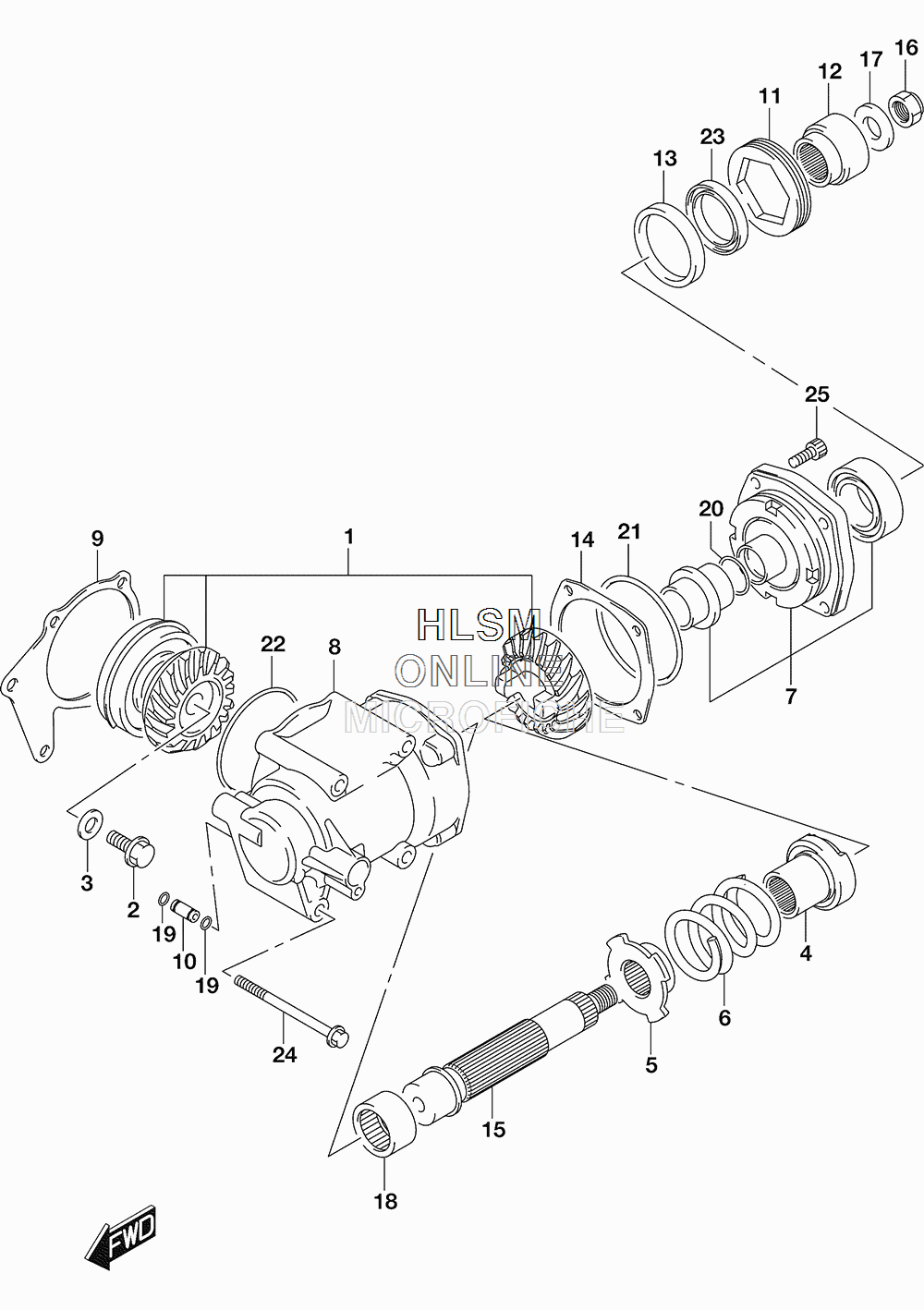

SECONDARY DRIVE GEAR для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    24910-48830 GEAR SET, SECONDARY
    GEAR SET, SECONDARY
  • 2
    09103-12084 BOLT (12X24)
    BOLT (12X24)
  • 3
    09160-12045 WASHER (12X35X2)
    WASHER (12X35X2)
  • 4
    24923-48G10 DOG, OUTPUT CAM
    DOG, OUTPUT CAM
  • 5
    24924-48G10 STOPPER, CAM SPRING
    STOPPER, CAM SPRING
  • 6
    24925-48G00 SPRING, SECONDARY DAMPER
    SPRING, SECONDARY DAMPER
  • 7
    24926-48830 STOPPER SECONDARY SET, DRIVEN
    STOPPER SECONDARY SET, DRIVEN
  • 8
    24931-48G30 CASE, SECONDARY GEAR
    CASE, SECONDARY GEAR
  • 9
    24935-48810 SHIM SET, DRIVE (T:0.40/0.45/0.50/0.55/0.60/ 0.65/0.70/0.75/0.80)
    SHIM SET, DRIVE (T:0.40/0.45/0.50/0.55/0.60/ 0.65/0.70/0.75/0.80)
  • 10
    24940-26D00 PIPE, SECONDARY GEAR CASE OIL
    PIPE, SECONDARY GEAR CASE OIL
  • 11
    24942-26D00 STOPPER, SECONDARY DRIVEN
    STOPPER, SECONDARY DRIVEN
  • 12
    24943-48G01 COUPLING, SECONDARY DRIVEN
    COUPLING, SECONDARY DRIVEN
  • 13
    24944-48G00 HOUSING, OIL SEAL
    HOUSING, OIL SEAL
  • 14
    24945-48810 SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)
    SHIM SET, SECONDARY DRIVEN (T:0.30/0.35/0.40/0.50/0.60)
  • 15
    24961-48G00 SHAFT, SECONDARY DRIVEN BEVEL
    SHAFT, SECONDARY DRIVEN BEVEL
  • 16
    09159-16003 NUT
    NUT
  • 17
    09160-16040 WASHER (16.5X36X4)
    WASHER (16.5X36X4)
  • 18
    09263-32012 BEARING (32X48X22)
    BEARING (32X48X22)
  • 19
    09280-06008 O RING (D:1.7,ID:6)
    O RING (D:1.7,ID:6)
  • 20
    09280-24010 O RING (D:2.4,ID:23.7)
    O RING (D:2.4,ID:23.7)
  • 21
    09280-78003 O RING (D:3.7,ID:76.5)
    O RING (D:3.7,ID:76.5)
  • 22
    09280-92003 O RING (D:2.4,ID:90.8)
    O RING (D:2.4,ID:90.8)
  • 23
    09283-38011 OIL SEAL (38X54X6)
    OIL SEAL (38X54X6)
  • 24
    01550-0895A BOLT
    BOLT
  • 25
    09106-10087 BOLT (10X30)
    BOLT (10X30)
