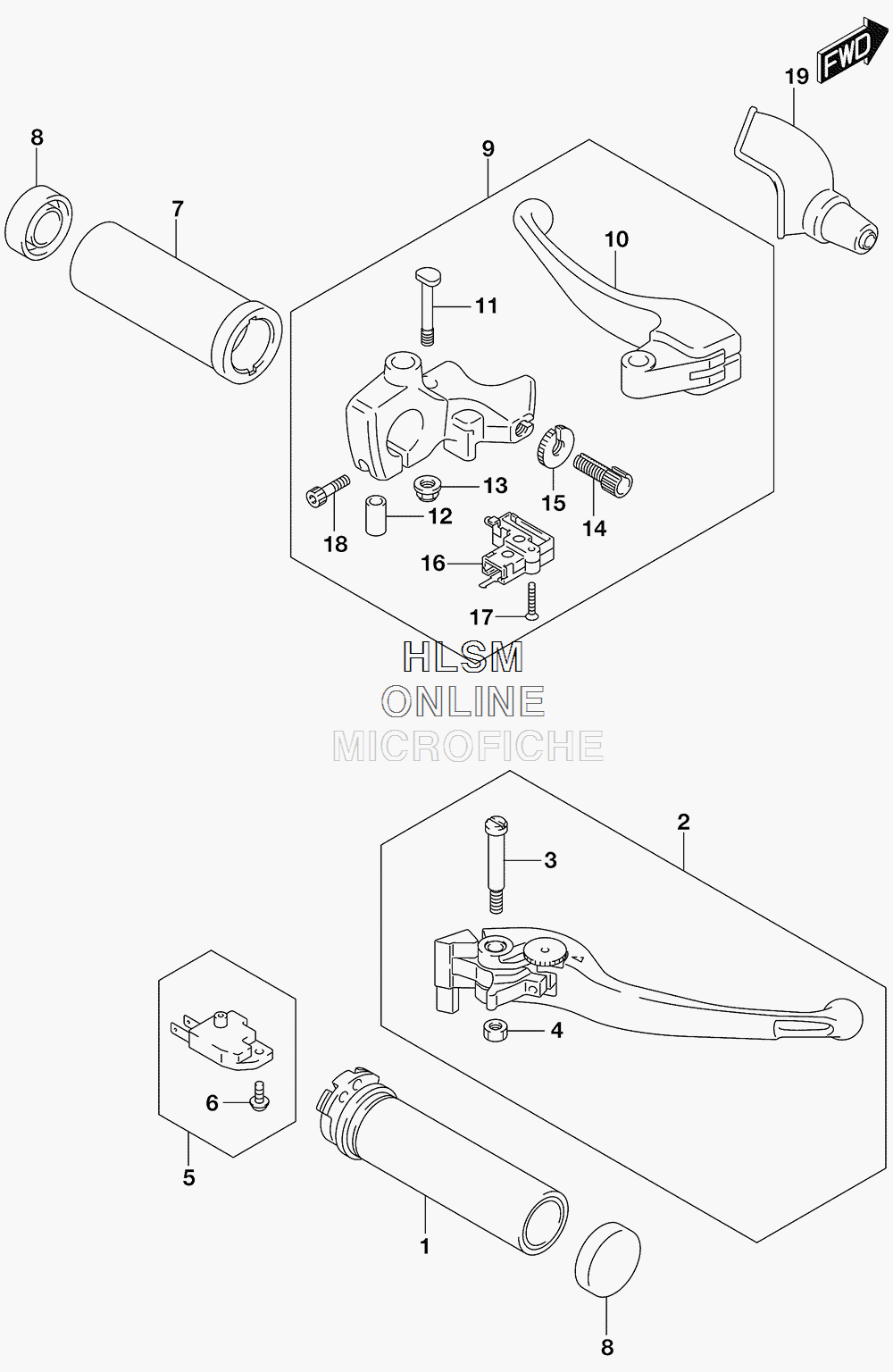

HANDLEBAR - LEVERS для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска`
-
№АртикулНазвание
-
157110-26D20 GRIP, THROTTLEGRIP, THROTTLE
-
257300-48G20 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357431-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
657465-17C00 ...SCREW...SCREW
-
757210-26D10 GRIP, LHGRIP, LH
-
857216-38A10 CAP, GRIP ENDCAP, GRIP END
-
957500-48G30 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1057621-48G20 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1157531-48G00 ...BOLT, LEVER PIVOT...BOLT, LEVER PIVOT
-
1257623-48G00 ...COLLAR...COLLAR
-
1308319-3106A ...NUT...NUT
-
1457441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1557442-08C00 ...NUT, LOCK...NUT, LOCK
-
1657560-05A10 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1757562-41G00 ...SCREW...SCREW
-
1807130-0620A ...BOLT...BOLT
-
1957541-48G10 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
