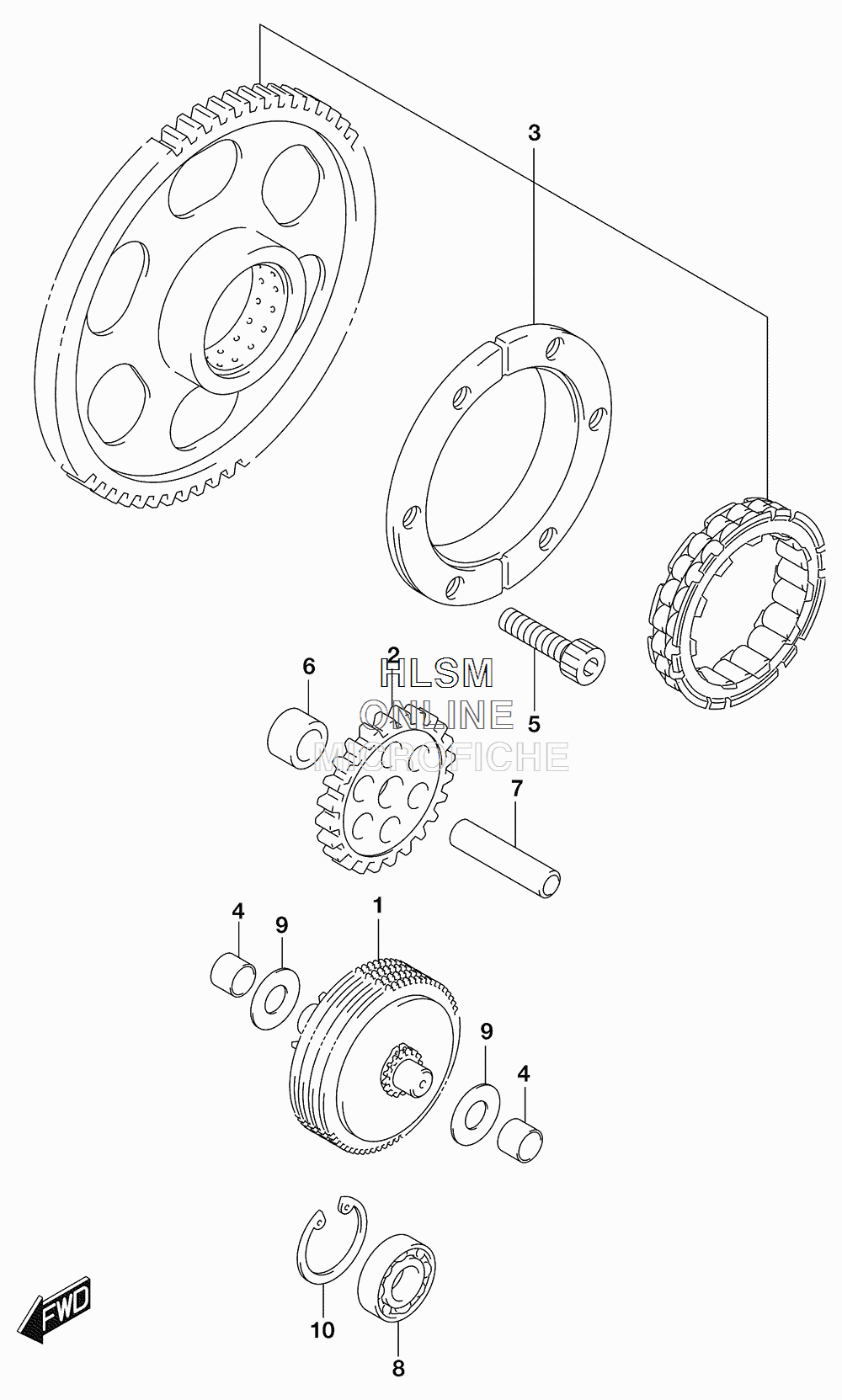

STARTER CLUTCH для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
112600-48G01 LIMITER ASSY, START IDLELIMITER ASSY, START IDLE
-
212612-06G00 GEAR, STARTER IDLE NO.2 (NT:27)GEAR, STARTER IDLE NO.2 (NT:27)
-
312600-48820 CLUTCH SET, STARTER (NT:80)CLUTCH SET, STARTER (NT:80)
-
412618-31G00 BUSH, LIMITER GEAR SHAFTBUSH, LIMITER GEAR SHAFT
-
509106-08190 BOLT (8X16)BOLT (8X16)
-
609180-12138 SPACER (12.5X19X12.5)SPACER (12.5X19X12.5)
-
709206-12006 PIN (8X12X45.5)PIN (8X12X45.5)
-
809262-12001 BEARING (12X28X8)BEARING (12X28X8)
-
908211-10221 WASHERWASHER
-
1008331-41289 CIRCLIPCIRCLIP
