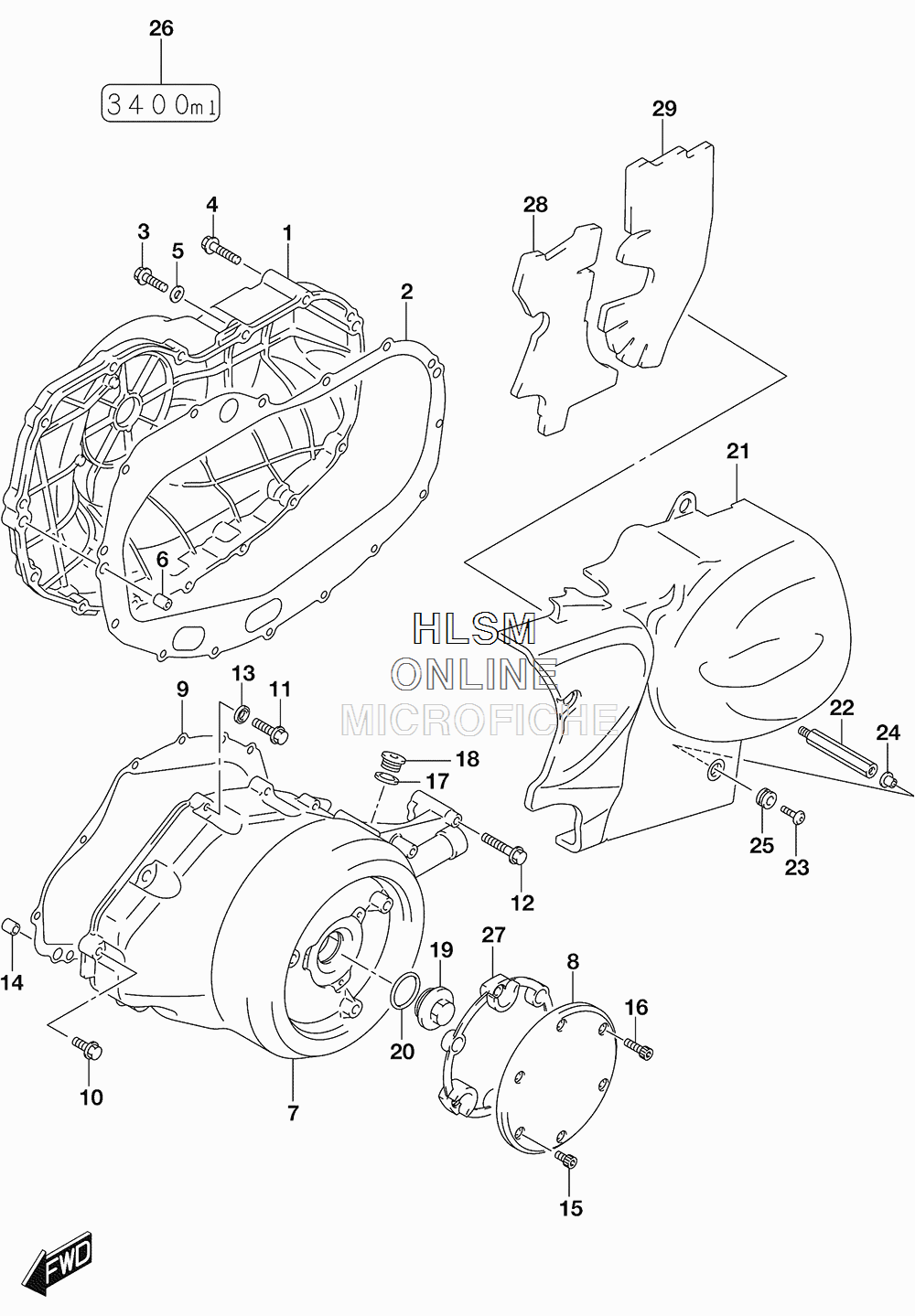

CRANKCASE COVER для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
111341-48G10 COVER, CLUTCHCOVER, CLUTCH
-
211482-48G00 GASKET, CL COVERGASKET, CL COVER
-
309103-06213 BOLT (6X30)BOLT (6X30)
-
409103-06261 BOLT (6X60)BOLT (6X60)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
604211-09189 PINPIN
-
711351-48G10 COVER, MAGNETOCOVER, MAGNETO
-
811352-48G00 CAP, MAGNETO COVERCAP, MAGNETO COVER
-
911483-48G00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1009103-06213 BOLT (6X30)BOLT (6X30)
-
1109103-06238 BOLT (6X50)BOLT (6X50)
-
1209103-06225 BOLT (6X70)BOLT (6X70)
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1404211-09149 PINPIN
-
1509106-06068 BOLT (6X10)BOLT (6X10)
-
1609106-06123 BOLT (6X20)BOLT (6X20)
-
1709168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
1809248-16012 PLUG (16X8)PLUG (16X8)
-
1909259-30005 CAPCAP
-
2009280-26006 O RING (D:3.1,ID:26.4)O RING (D:3.1,ID:26.4)
-
2111361-48G30 COVER, SECONDARY DRIVE UNITCOVER, SECONDARY DRIVE UNIT
-
2211372-48G00 BOLT, SEC DRIVE UNIT COVERBOLT, SEC DRIVE UNIT COVER
-
2309139-06028 SCREW (6X20)SCREW (6X20)
