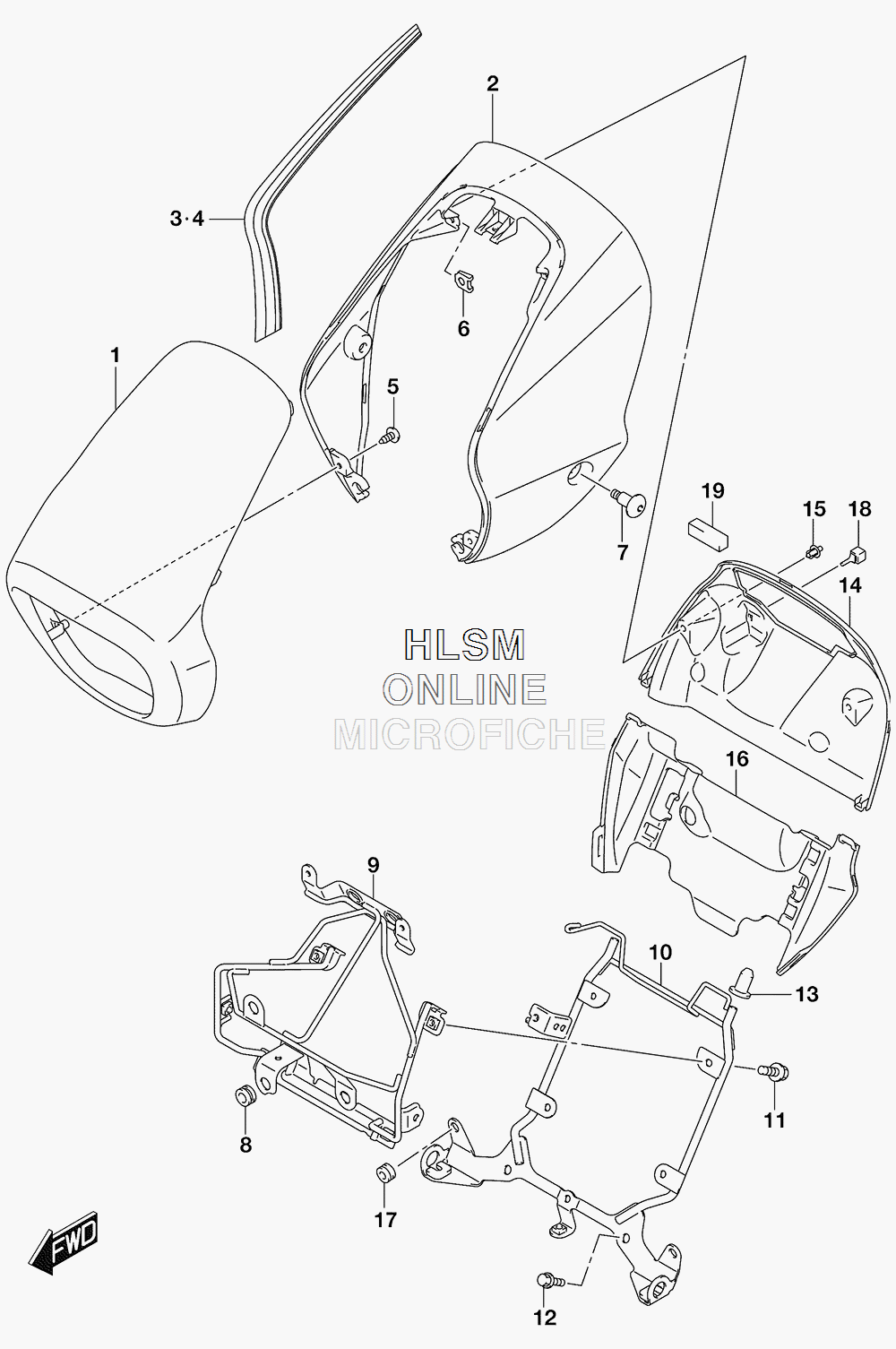

HEADLAMP HOUSING для Suzuki VZR1800BZ L5 BOULEVARD M109R BOSS - 2015 года выпуска
-
№АртикулНазвание
-
151811-48GC0-YVB COVER, HEADLAMP (BLACK) (FOR AR5)COVER, HEADLAMP (BLACK) (FOR AR5)
-
151811-48GC0-YYG COVER, HEADLAMP (RED) (FOR AV4)COVER, HEADLAMP (RED) (FOR AV4)
-
251820-48GE0-AR5 COVER, CENTER (WHITE/BLACK)COVER, CENTER (WHITE/BLACK)
-
251820-48GE0-AV4 COVER, CENTER (RED/BLACK)COVER, CENTER (RED/BLACK)
-
368721-48GB0-A7D ...TAPE, HEADLAMP HOUSING RIGHT HAND (FOR AR5)...TAPE, HEADLAMP HOUSING RIGHT HAND (FOR AR5)
-
368721-48GB0-A7Q ...TAPE, HEADLAMP HOUSING RIGHT HAND (FOR AV4)...TAPE, HEADLAMP HOUSING RIGHT HAND (FOR AV4)
-
468731-48GB0-A7D ...TAPE, HEADLAMP HOUSING LEFT HAND (FOR AR5)...TAPE, HEADLAMP HOUSING LEFT HAND (FOR AR5)
-
468731-48GB0-A7Q ...TAPE, HEADLAMP HOUSING LEFT HAND (FOR AV4)...TAPE, HEADLAMP HOUSING LEFT HAND (FOR AV4)
-
503541-0510A SCREWSCREW
-
609148-05045 NUTNUT
-
709139-06191 SCREW (6X22)SCREW (6X22)
-
809320-09039 CUSHIONCUSHION
-
951860-48GB0 BRACE, HOUSINGBRACE, HOUSING
-
1051850-48GB1 BRACE, COVERBRACE, COVER
-
1101550-0612A BOLTBOLT
-
1201550-0816A BOLTBOLT
-
1351831-21D00 CUSHION, BRACECUSHION, BRACE
-
1451831-48GB1 COVER, REARCOVER, REAR
-
1509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1651841-48GB0 COVER, BRACKETCOVER, BRACKET
-
1709320-06016 CUSHIONCUSHION
-
1851832-48GB0 CUSHION, COVER UPPERCUSHION, COVER UPPER
-
1951833-48GB0 CUSHIONCUSHION
