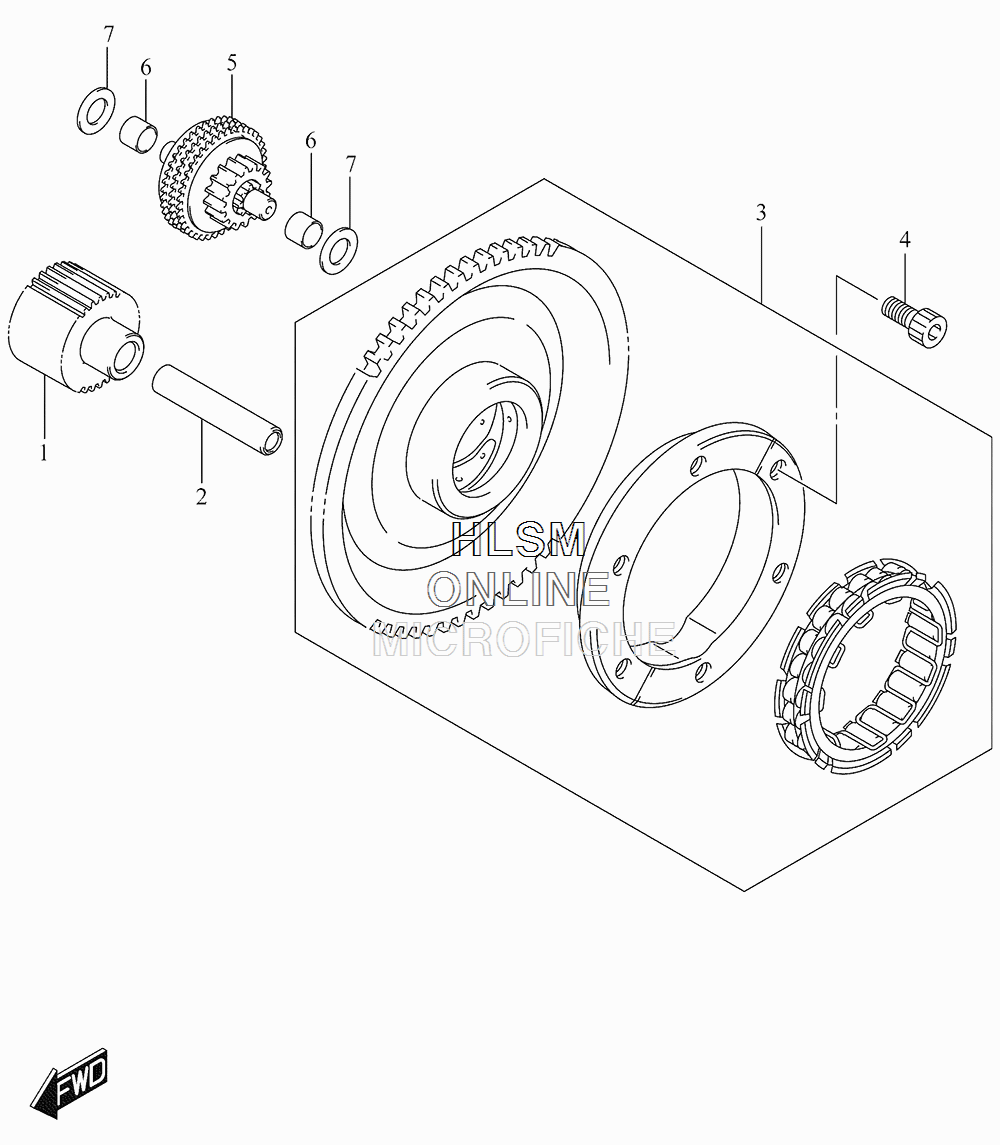

STARTER CLUTCH для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
112611-10F00 GEAR, STARTER IDLE NO.1 (NT:31)GEAR, STARTER IDLE NO.1 (NT:31)
-
209206-11015 PIN (7X11X55)PIN (7X11X55)
-
312600-40840 CLUTCH SET, STARTER (NT:78)CLUTCH SET, STARTER (NT:78)
-
409106-08190 BOLT (8X16)BOLT (8X16)
-
512600-24B01 LIMITER ASSY, STARTER IDLE (NT:37)LIMITER ASSY, STARTER IDLE (NT:37)
-
612618-31G00 BUSHBUSH
-
709181-10195 SHIM (10X20X1)SHIM (10X20X1)
